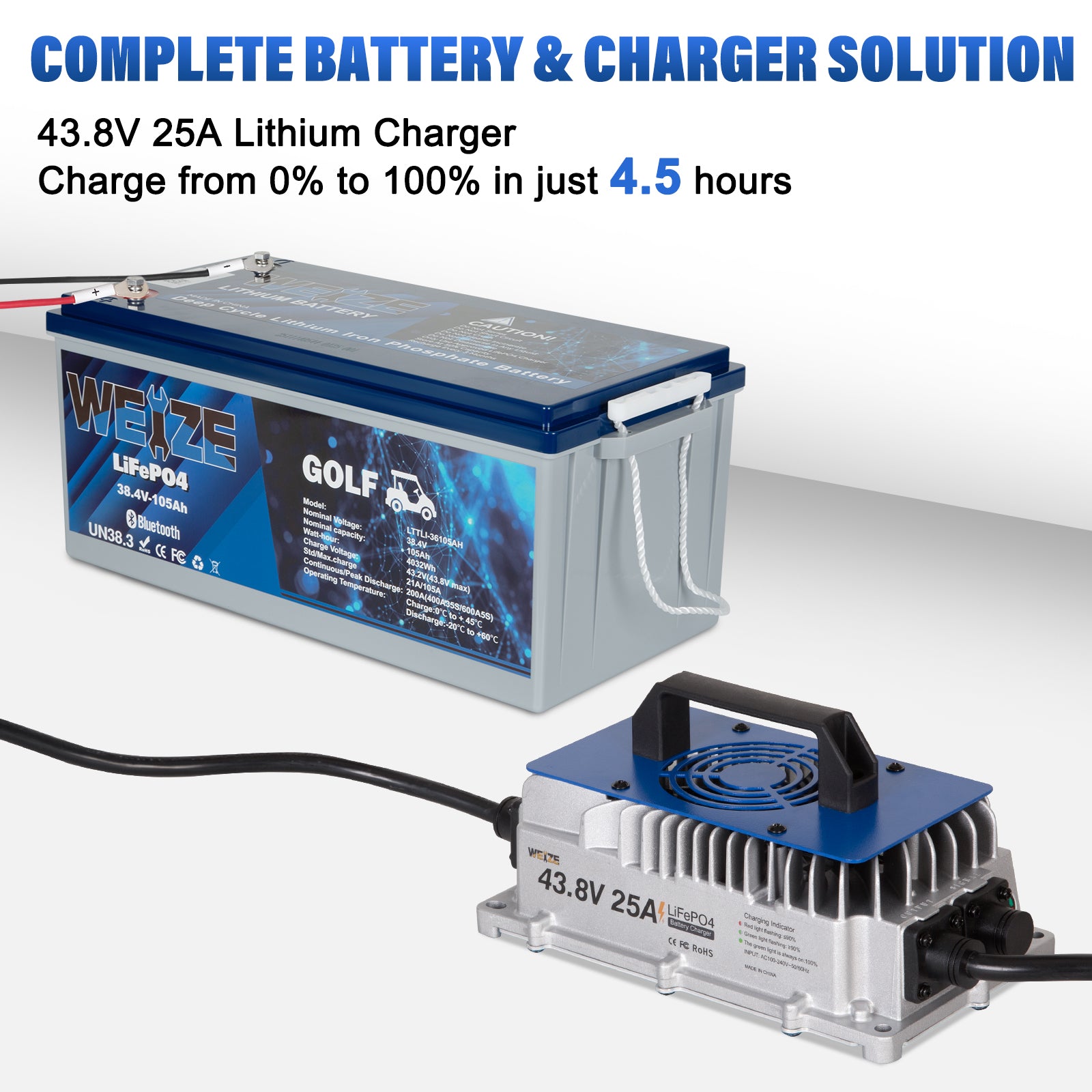

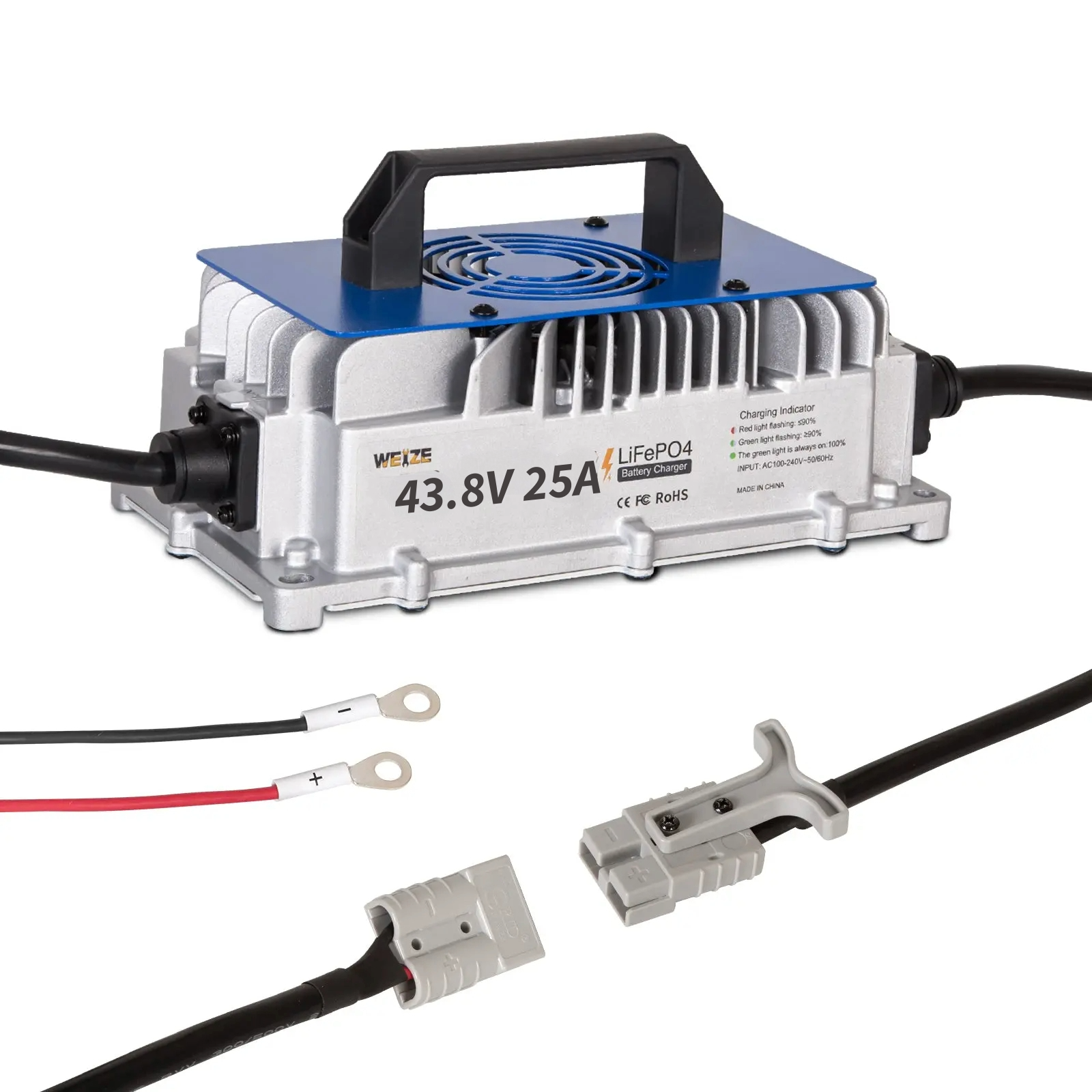

This in-vehicle smart charger is designed to recharge the vehicle’s power battery while parked. The charging process is fully managed by an intelligent program and meets automotive-grade standards for temperature resistance and vibration durability.
??Key Features
High Efficiency: Delivers maximum efficiency of over 90% for optimal energy conversion.
Wide Operating Temperature Range: Designed to perform reliably in various environmental conditions.
Comprehensive Protection: Built-in safety features guard against overvoltage, overcurrent, overheating, and short circuits.
Full Load Tested: Each unit undergoes a 100% full load aging test to ensure long-term reliability.
Automotive-Grade Durability: Engineered to meet stringent vibration resistance standards for vehicle applications.
Smart Temperature Compensation: Automatically adjusts charging based on ambient temperature to protect battery health.
??Advanced Safety Features
Overvoltage Protection – Prevents damage caused by excessive output voltage.
Overcurrent Protection – Limits output current to protect connected devices.
Short-Circuit Protection – Instantly shuts down the charger in case of output short circuit.
Reverse Polarity Protection – Prevents charging if the battery is connected incorrectly.
Overtemperature Protection – Automatically reduces power or shuts down if internal temperature exceeds safe levels.
??Flexible Mounting Options for Optimal Performance
This charger can be installed in multiple configurations to suit your setup:
Preferred Orientation:
Important Installation Notes:
Always mount the charger to a non-combustible surface such as metal, brick, or concrete.
Ensure a minimum of 3 inches of clearance around the fan for proper airflow and cooling.
Proper mounting ensures safe operation and maximizes the charger's lifespan and performance.
??Common Faults & Troubleshooting Guide
If your charger experiences any issues, please refer to the table below for potential causes and solutions:
Incorrect Input Voltage
? Check if the input voltage meets the required specifications.
Input Wire Too Thin
? Replace with appropriately sized wire for safe and stable operation.
Overheating
? Ensure proper ventilation in the charging area.
? Do not cover the charger during use.
Output Short-Circuit
? Inspect output wiring for any shorts and correct them immediately.
No Battery Connected or Battery Reversed
? Check the battery connections and ensure proper polarity.
Battery Voltage Too Low
? Recharge or jump-start the battery to reach the minimum starting voltage required by the charger.
Battery Overheating
? Ensure the charger is in a well-ventilated area.
? If using an external temperature sensor, affix it tightly to the battery surface. (Note: The temperature sensor in portable chargers is built-in.)
Charger Overheating
? Ensure ventilation openings are not blocked.
? Keep the charger away from external heat sources.
Note:
The company reserves the right to interpret and revise these instructions without prior notice.
