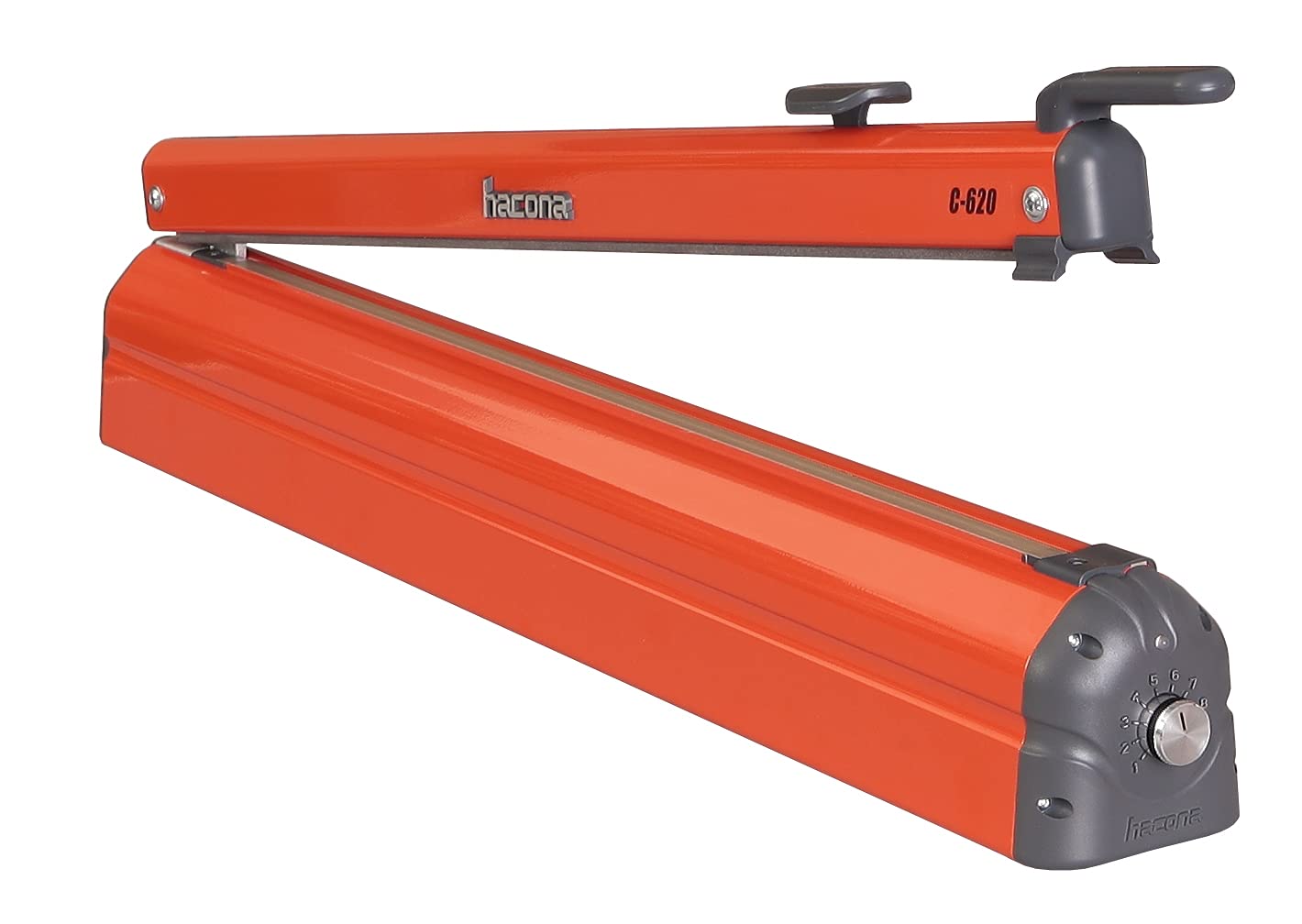

Hacona C-Type 24 Inch Tabletop Impulse Heat Sealer with Built-in Cutter - Orange (Large, C-620) for Packaging, Food Storage & Industrial Sealing Applications

SEALING LENGTH5 sealing bar sizes assure the maximum flexibilityThe hacona C – type impulse heat sealing machines are produced in 5 different sealing bar length. This wide product range assures the maximum flexibility to choose the right machine size for the right application. For small bag sizes the C – 220 impulse film sealing machine offers best place saving solution. If all kind of different bag sizes are used in the packaging, than the C – 820 offers the most flexible solution, because all bag sizes can be sealed on one machine.Choose the right machine size referring to the biggest bag size used in the packaging process. Machine type Sealing length (cm & inch) Power (W) C – 220 220 mm = 8 inch 180 W C – 320 320 mm = 12 inch 218 W C – 420 420 mm = 16 inch 248 W C – 620 620 mm = 24 inch 365 W C – 820 820 mm = 32 inch 468 W All of the C – type impulse film sealing machines are working on impulse sealing principle. The sealing wire gets only hot when sealing bar is closed. Maximum safety Maximum energy savingGeneral information: All hacona film sealing machines, including the hacona C – type are designed to seal also narrow packaging films with a wide sealing bar size!Example: With a C – 820 impulse film sealing machine it is possible to seal very narrow, even 50 mm (2 inches) or 100 mm (4 inches) wide packaging film. No mechanical adjustments are needed to work with 50 mm (2 inches) or even with the 820 mm (32 inches) packaging film.The sealable maximum material thickness (absolute material thickness) for all C – type impulse film sealing machines is:PE Polyethilene 200 micronPP Polypropylene 200 micronMulti layer - laminated film 100 micron(depending on the type of the lamination!)

Sealing length: max. 620 [mm] (24 inch).

Max. cutting length: max. 600 [mm] (23,62 inch).

Maximum safety.

The sealing wire gets only hot when the sealing bar is closed.

All of the C – type impulse film sealing machines are working on the impulse sealing principle.
