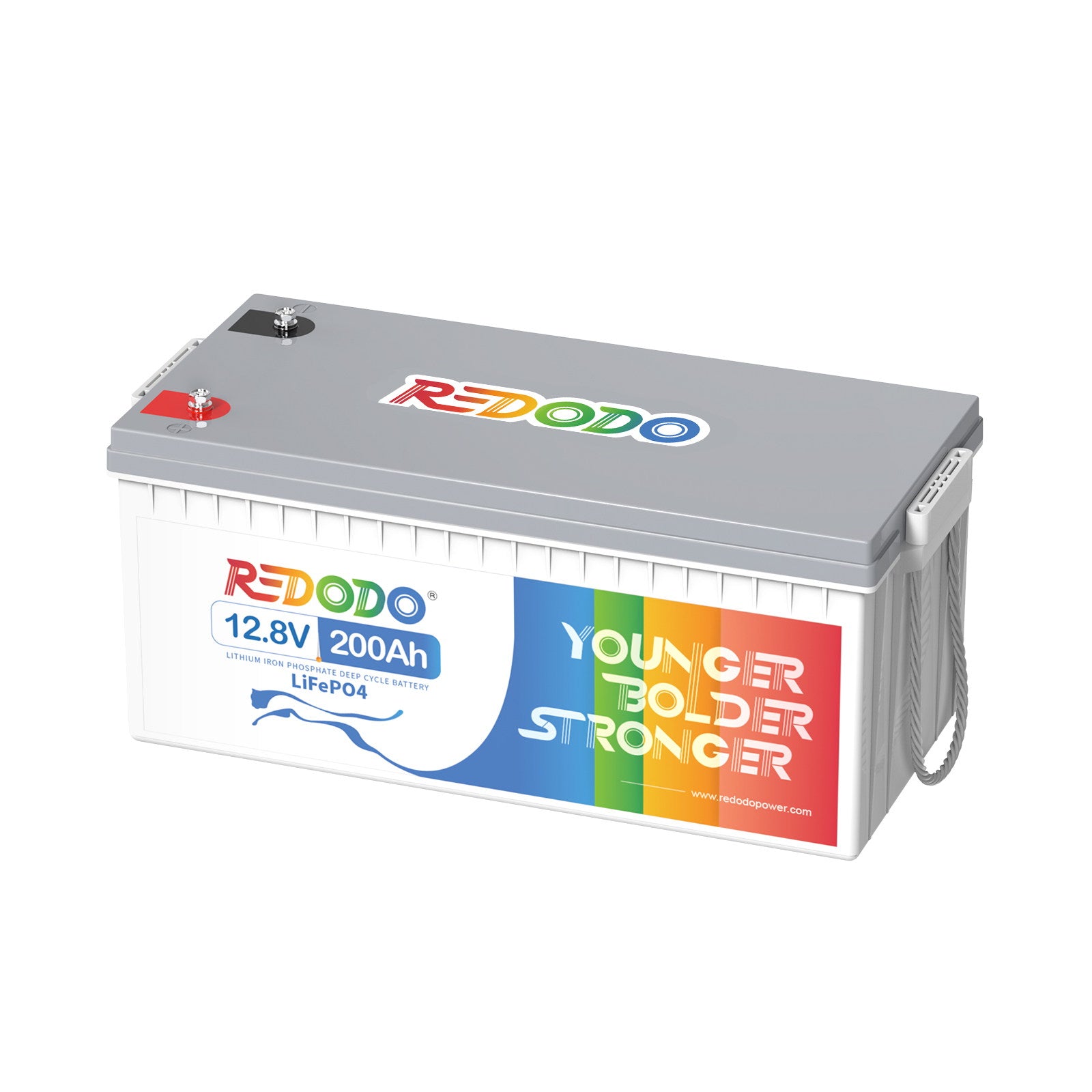

Redodo 12V 200Ah Pro (230Ah) LiFePO4 Deep Cycle Battery | 2.944kWh & 1.28kW Power | Perfect for RV, Marine, Solar & Off-Grid Energy Storage

Recommend Max. Battery System

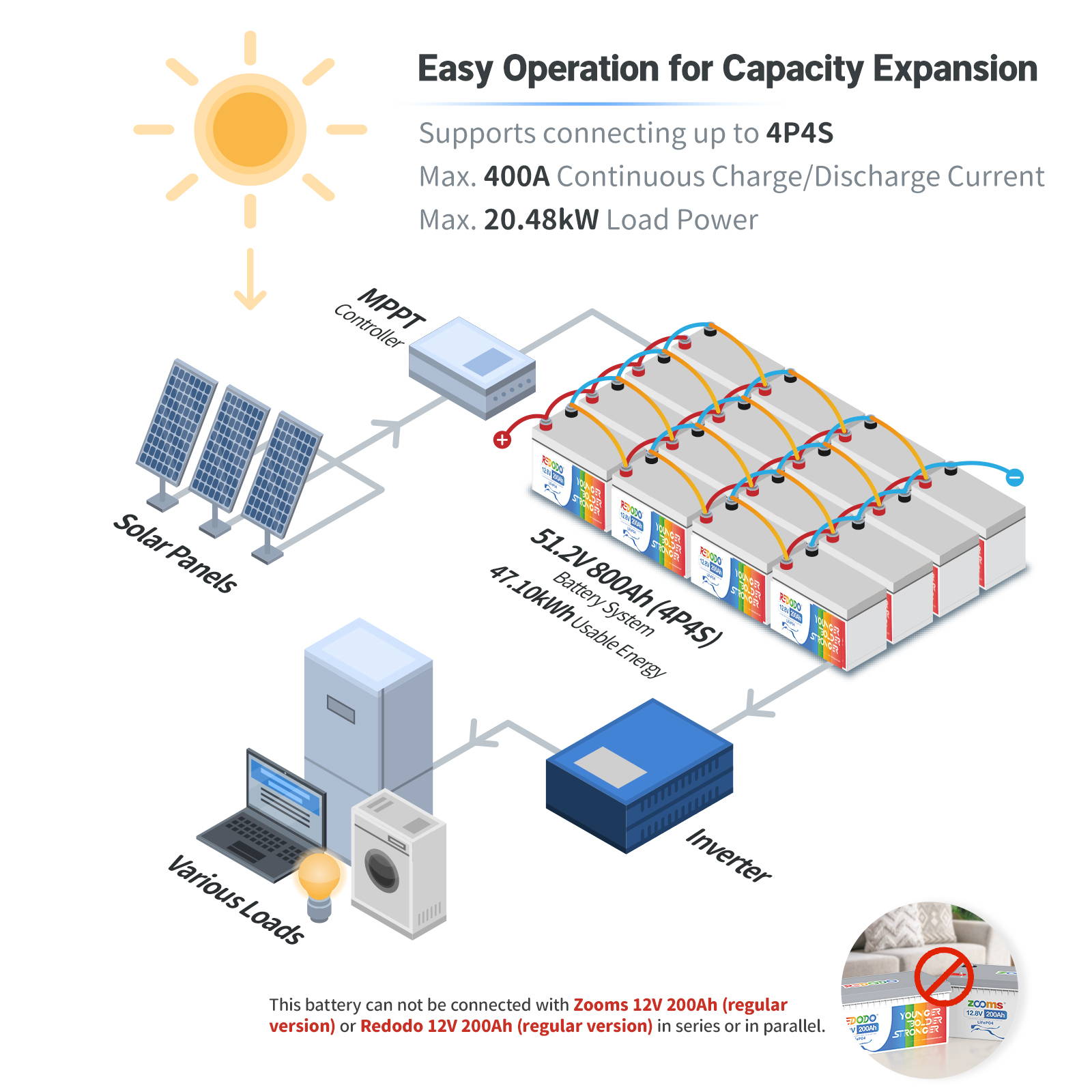

Connecting 16*12.8V 200Ah LiFePO4 batteries in 4P4S to build a 51.2V 800Ah Battery System.

(Accounted by the Usable Capacity, connecting 16*12.8V 200Ah LiFePO4 batteries in 4P4S, you can actually build a 51.2V 920Ah Battery System)

It could support Max. 400A continous charge/discharge current, Max. 20.48kW load powe and Max. 40.96kWh



To connect in series or /and parallel, batteries should meet the below conditions:

a. identical batteries with the same battery capacity (Ah) and BMS (A);

b. from the same brand (Note: Redodo 12V 200Ah Pro battery is not recommended to connect with Redodo 12V 200Ah & Zooms 12V 200Ah battery)

c. purchased in near time (within three months)

40Amp LiFePO4 Battery Charger

Regarding the charger, we recommend battery charger that supports LiFePO4 battery charging. To fully charge the battery, the DC charging voltage should be between 14.2V~14.6V, and charging current less than 100A. And we usually recommend 0.2C charging current, that is 40A charging current and it will cost around 5hrs to full charged it.

Green Solar Charging

Recommended Solar Panels: ≥600W, it will cost around 1day to full charge it, as the effective light time is 4-5hrs per day)

Generator Charging

We suggest that you add an 40A DC to DC charger if you use the generator to charge the battery
