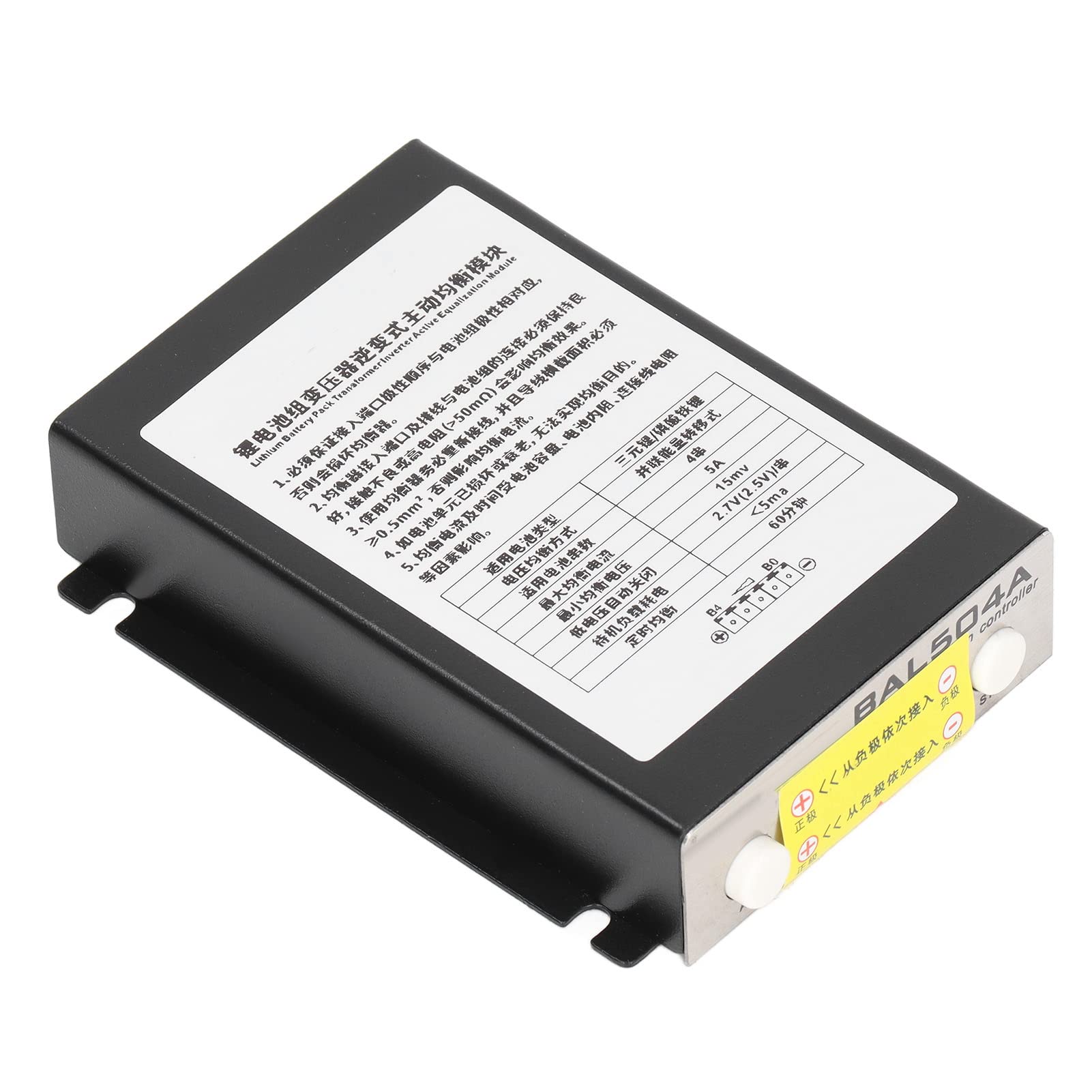

Battery Active Equalizer - Automatic Dual Mode Battery Balancer for 12V 24V 48V Lithium LiFePO4 Lead Acid Batteries | Perfect for Solar Power Systems, RVs, Boats & Off-Grid Applications

Feature:1. Good Balancing: The ultra low internal resistance MOS device together with intelligent MCU chip main control management constitutes an ultra low dynamic impedance inverter circuit to achieve automatic balance work with high power.2. Safe Operation: Has input terminal over current fuse resistor in each string, the board automatically detects the minimum voltage of the battery and stops working when the battery is low in energy, protecting the battery from power loss.3. Dual Work Mode: Supports both automatic and manual dual trigger mode, also has manual forced timing balance off function for convenient operation.4. Stable Working: The fully symmetrical transformer ensures the minimum pressure difference can be guaranteed, while the inverter design enables quick heat dissipation for stable working.5. Easy to Install: Designed to have a compact size and a light weight as well, the installation can be quickly completed in minutes.Specification:Item Type: Battery Active EqualizerMaterial: Aluminium AlloyApplicable battery type: For ternary lithium battery, LFP battery. The Number Adaptive Battery Strings: 4 StringsMinimum Balance Voltage: 15mVMaximum Equalizing Current: 5AForced Equilibrium Timing: 60 MinutesCable Interface: 3.81 iInterfaceAutomatic Low Voltage Shutdown: 2.7V or 2.5V a string. Balance Method: Parallel energy transfer method. Standby Load Power Consumption: <5mA 12V, 4th string power supply. Battery Balance Power Consumption After Startup: 80mA, 10mV voltage difference. Automatic Start Trigger Voltage: +70mVAutomatic Start Off Voltage: +20mVPackage List:1 x Battery Active Equalizer1 x Pin Header1 x Short Interface Pin Header1 x Cable1 x

Good Balancing: The ultra low internal resistance MOS device together with intelligent MCU chip main control management constitutes an ultra low dynamic impedance inverter circuit to achieve automatic balance work with high power.

Safe Operation: Has input terminal over current fuse resistor in each string, the board automatically detects the minimum voltage of the battery and stops working when the battery is low in energy, protecting the battery from power loss.

Dual Work Mode: Supports both automatic and manual dual trigger mode, also has manual forced timing balance off function for convenient operation.

Stable Working: The fully symmetrical transformer ensures the minimum pressure difference can be guaranteed, while the inverter design enables quick heat dissipation for stable working.

Easy to Install: Designed to have a compact size and a light weight as well, the installation can be quickly completed in minutes.
