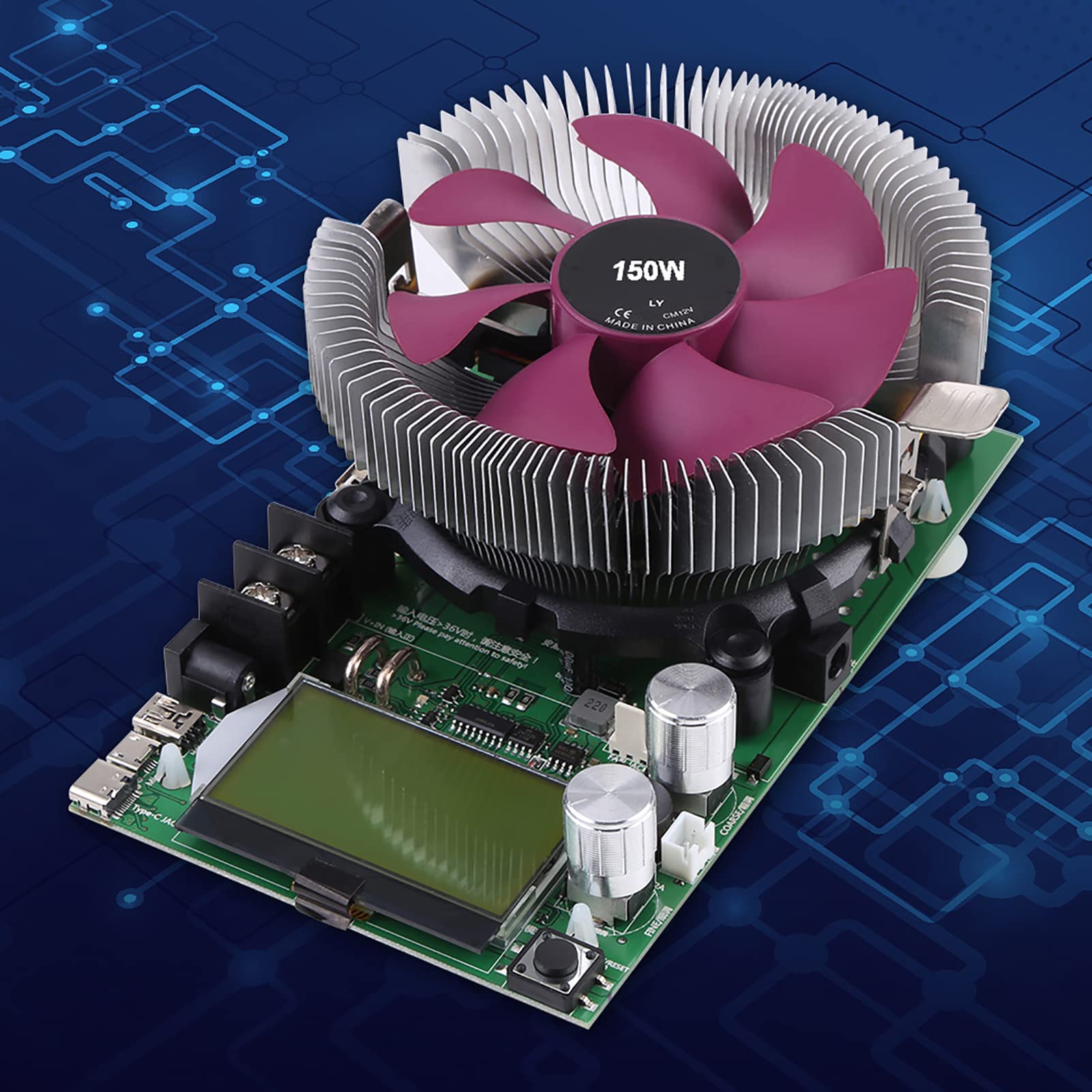

150W USB Electronic Load Tester - Battery Capacity Tester Module with LCD Display for Li-ion, Lead Acid, NiMH Batteries - Perfect for DIY Electronics, RC Vehicles, and Solar Power Testing

Features: LCD screen, display information comprehensively and clearly. Configuration of intelligent fan, which can dissipate the heat effectively and quietly. Load maximum power 150W, maximum voltage 200V, maximum current 20A. Test various batteries, DC power supply, and charging data lines. Over voltage, over current, and over pressure alarm can protect the module from damage effectively. Over voltage Over current Set the alarm mode: Show alert interface to remind the user Note: 1. Please turn down the knob to the end counterclockwise before using, and then turn up slowly. 2. Please pay attention to your safety when the voltage is more than 36V. 3. Several tested power supply can not be connected simultaneously. 4. The current adjustment knob should be regulated slowly. Specification Power supply 4 ~ 30V range of DC voltage Refresh time > 500mS / times Measurement rate about 0.5 times / sec 1 ~ 200V Overpressure Reminder Setting range 0 ~ 190V Low voltage reminder setting range 0.2 ~ 100A Overflow Reminder Set Range Display Type Micro power LCD Module LCM Green Backlight Chinese & English Display Operating temperature -10 ~ +60 ℃ Interface USB, 5.5mm jack, Mini USB, Micro USB, Type-C Working humidity 10 ~ 80 Working pressure 80 ~ 106kPa Plug type US plug Size Approx. 156 x 96 x 58mm / 6.1 x 3.7 x 2.2inch Weight 631g Package Include 1 x Fan 1 x USB Cable 2 x Crocodile Clip 1 x Power Plug Cable1 x Manual (Other items in the picture are NOT included)

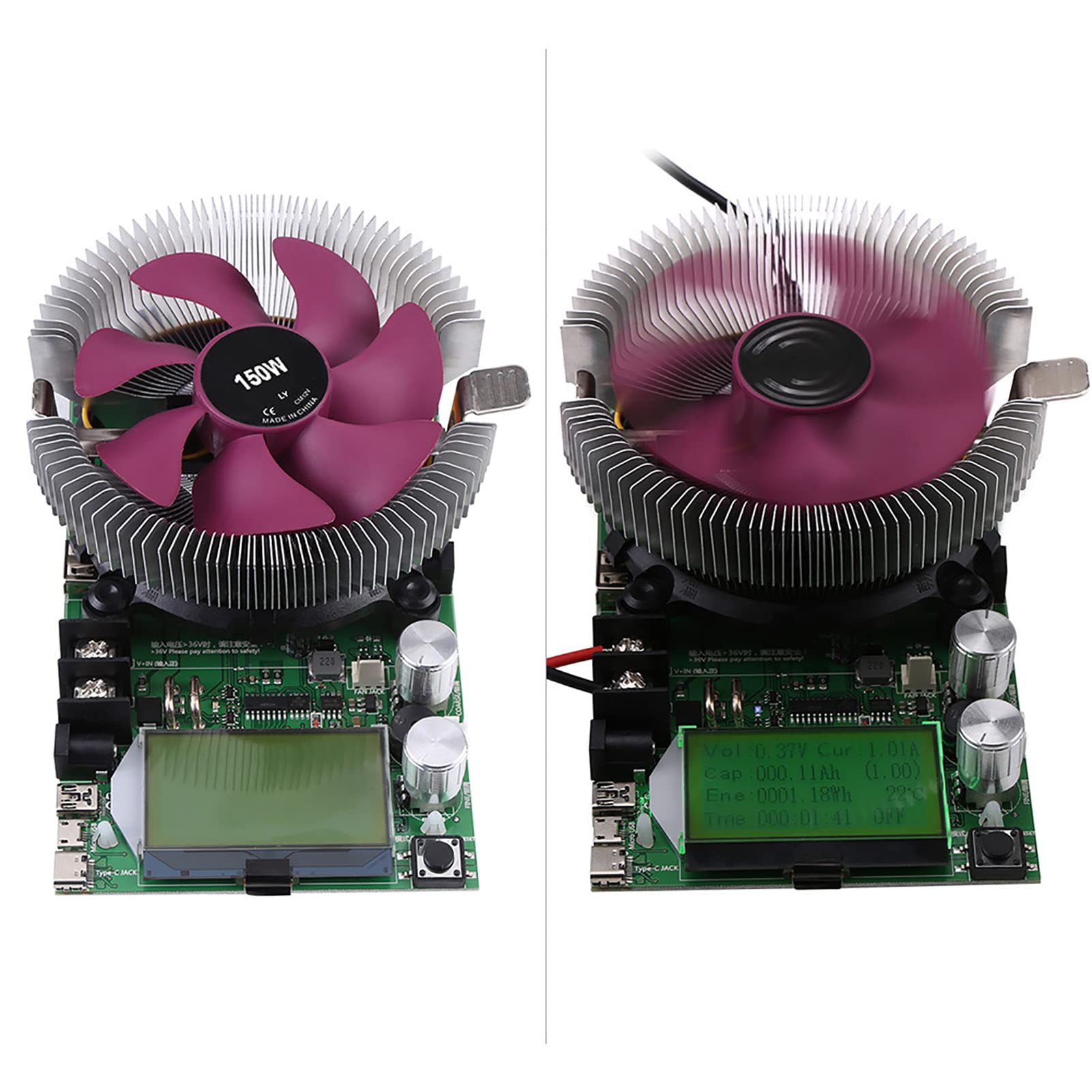

[LCD Screen] The electronic load tester has LCD screen, and it can display information comprehensively and clearly.

[Cooling Fan] The electronic load tester has configuration of intelligent fan, which can dissipate the heat effectively and quietly.

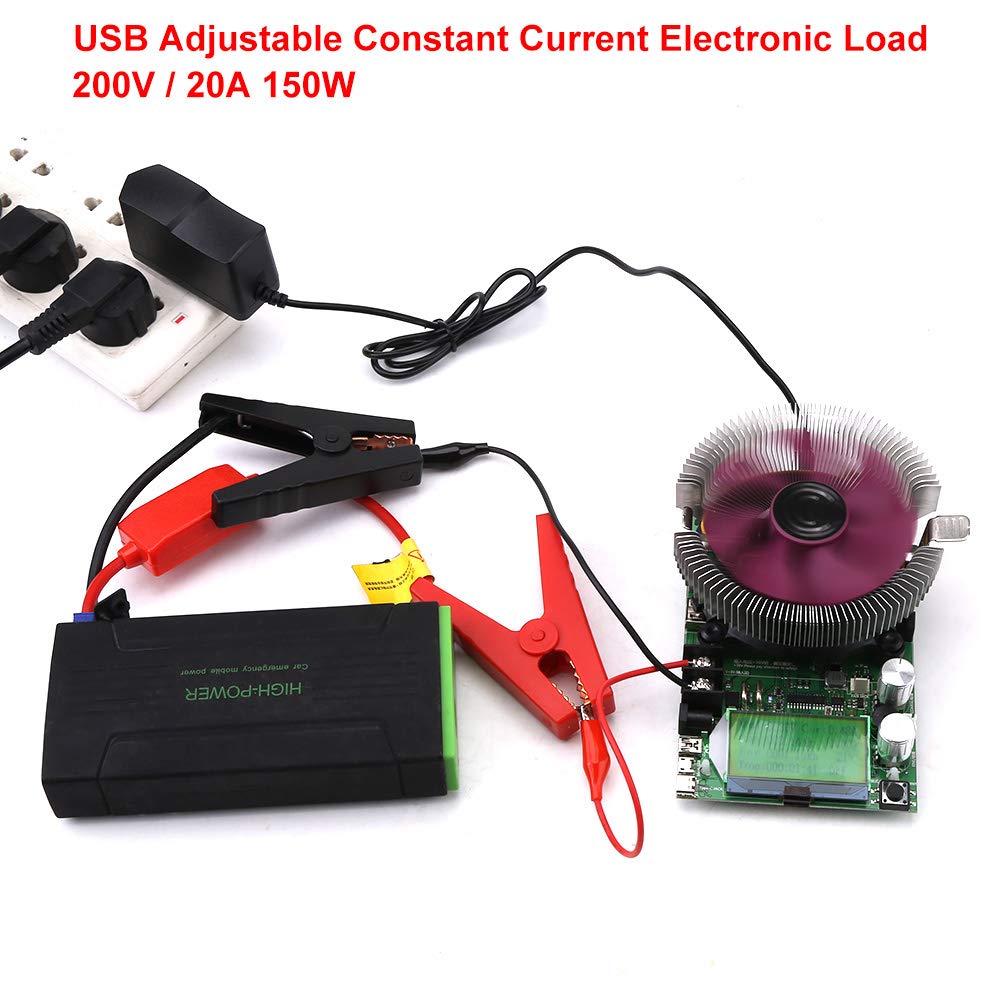

[Wide Application] The electronic load tester can test various batteries, power supply, and charging data lines.

[] The electronic load tester has over-voltage, over-current and over-pressure alarms, which can effectively protect the module from damage.

[Parameter] The maximum power of the load of the electronic load tester is 150W, the maximum voltage is 200V, and the maximum current is 20A.
