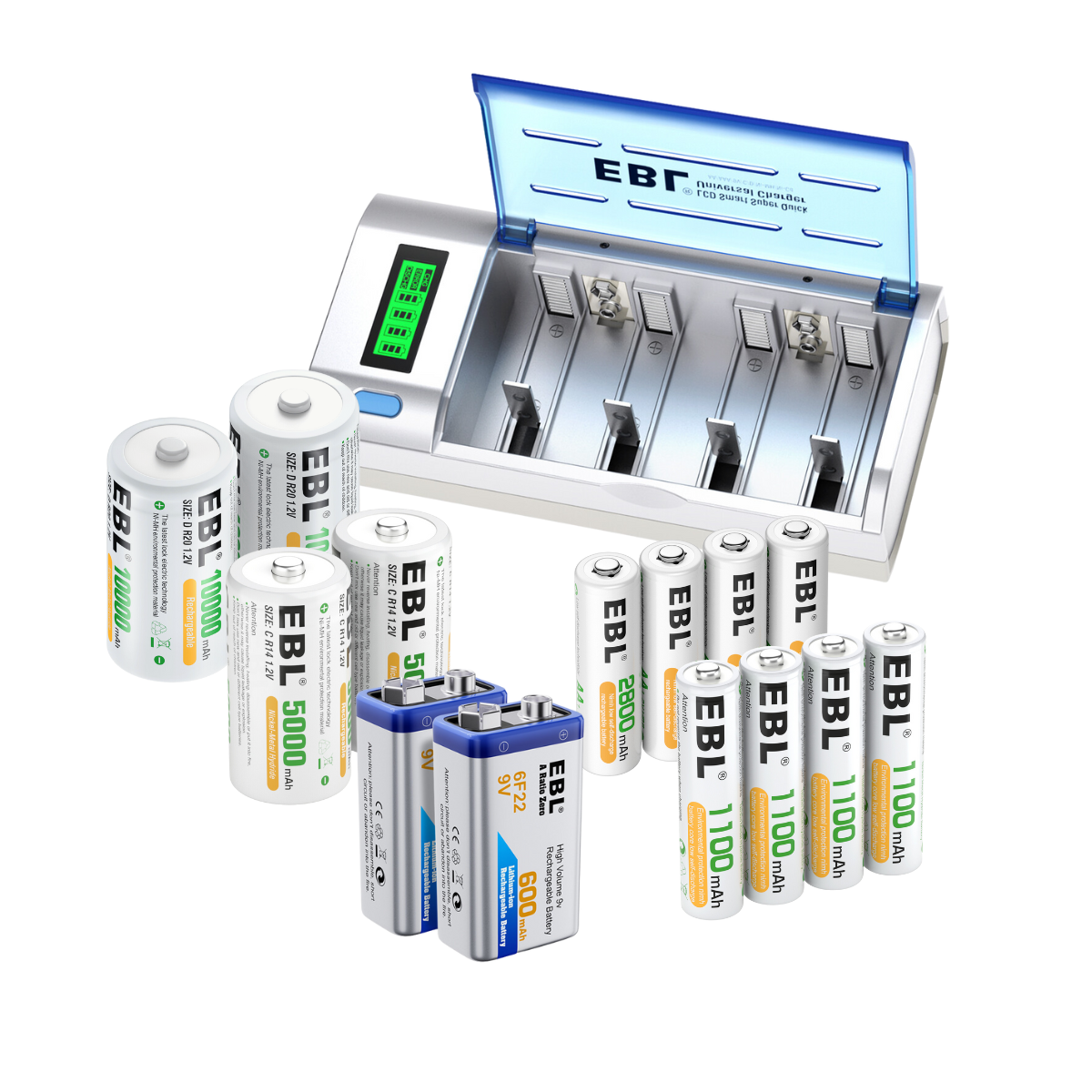

EBL 906 Smart Battery Charger with 8 Rechargeable AA AAA C D 9V Batteries Kit - Fast Charging for Home, Office, Toys, Cameras & Electronics

with Discharge Function & LCD Display -?with 2 x D Size Batteries 10000mAh and?2 x C Cell Batteries 5000mAh, 2 x 9V?Rechargeable?Batteries, 4?x?Rechargeable AA?Batteries?2800mAh,?4?x?AAA Batteries 1100mAh

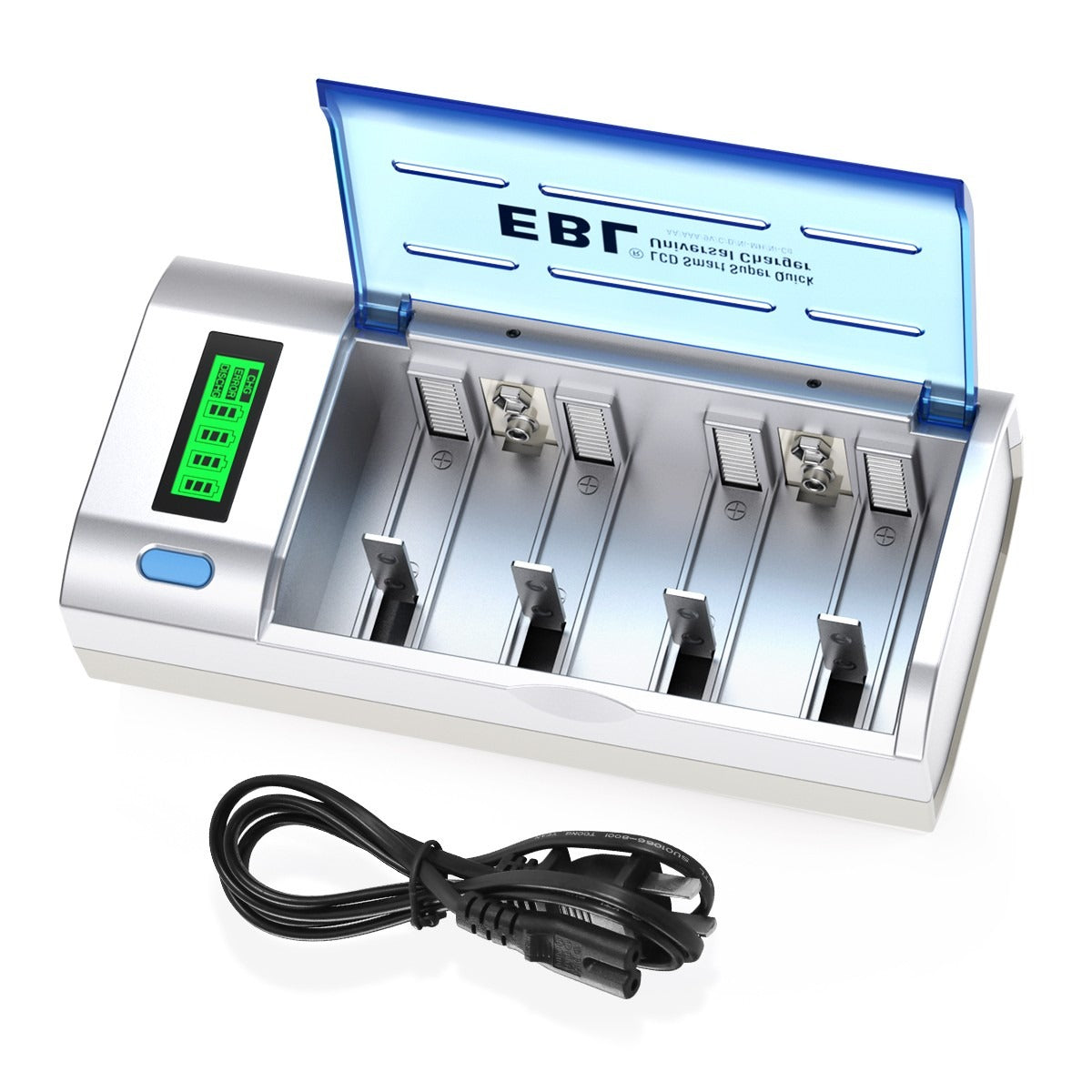

?EBL 906?Battery Charger?with Discharge Function & LCD Display

【Compatible Models】

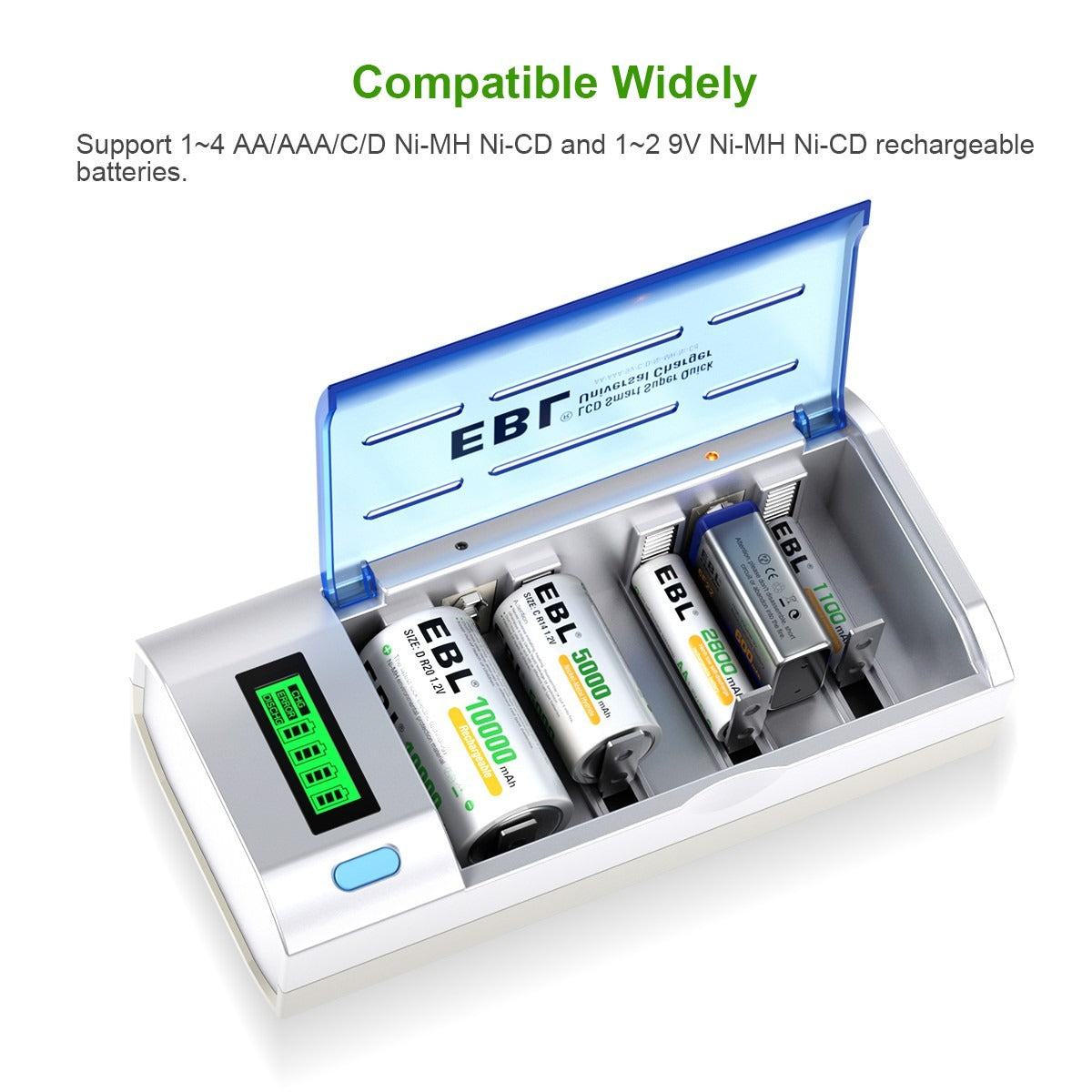

Independent charging slots can charge different compatible batteries freely.
For Ni-MH Ni-CD rechargeable batteries: 1/2/3/4?pieces?AA, AAA, C, D, and 1/2 pieces 9V batteries.

【Safe Assurance】

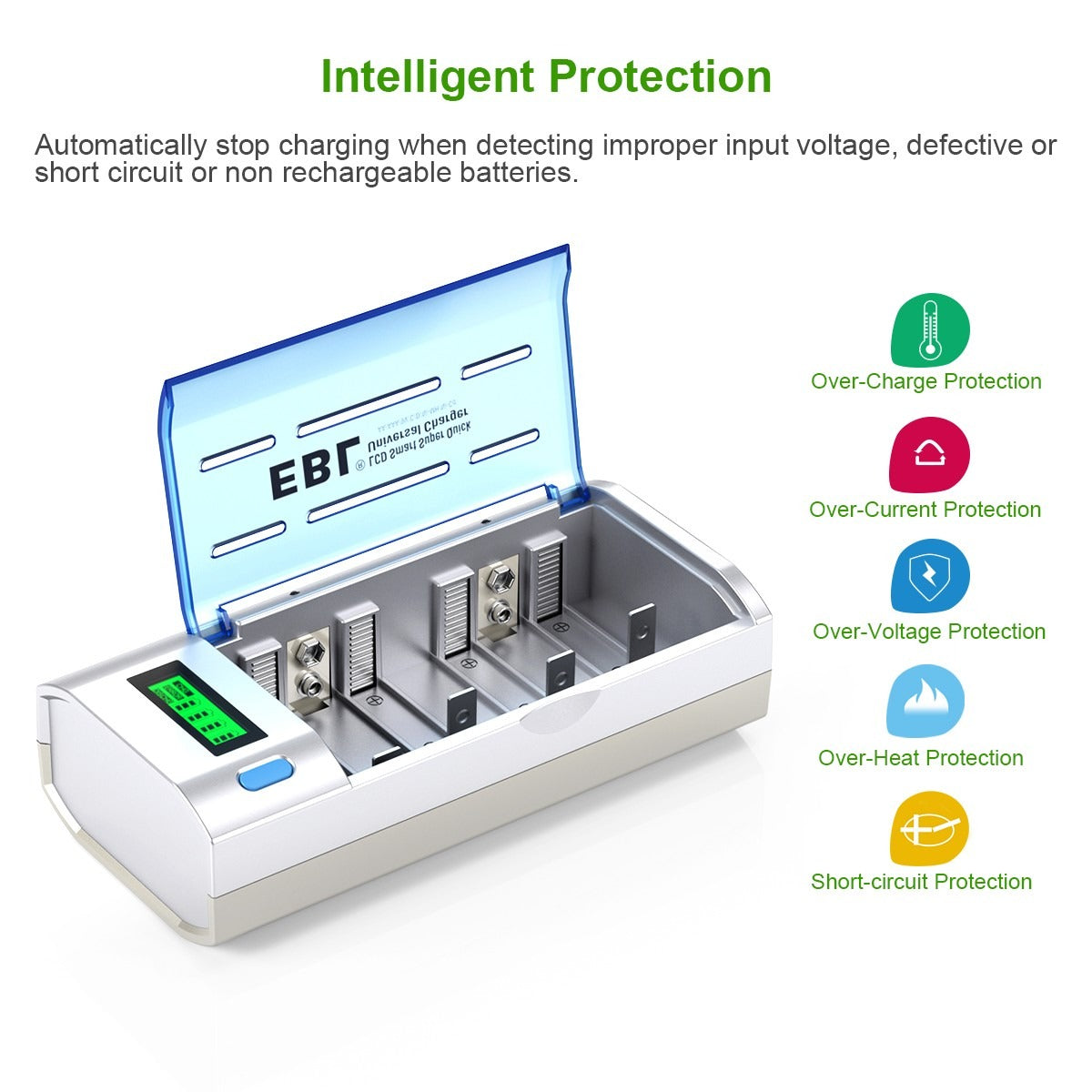

Automatically stop charging when detecting improper input voltage, defective or short circuit or non rechargeable batteries.

【Constant Current Charging Mode】

Protect the batteries against current fluctuation and keep using the charger safely. Note: Please ensure the battery installed is correct: make the +/- pole of the battery is match for the +/- pole of the device.

【Fast Charging】

Charging the battery 2-4Pcs AA/AAA/C/D with the total current 2A. Less than 3 hours to fully charged the AA/AAA/C/D batteries, and less than 10 hours to fully charged the 9V batteries.

【Reasonable Circuit Layout - Worldwide Usage】

Charging Time Table:

1pcs Battery Type (Ni-MH) Capacity Charging Time (approx)

AAA 500-1200mAh 0.5-1.2hours

AA 1300-2800mAh 1.3-2.8 hours

C 1800-5000mAh 1.8-5 hours

D 1800-10000mAh 1.8-10 hours

9V 150-600mAh 2.5-10 hours

【Unique Trickle Charge】

Adopting -?V intellectual cut-off charging method, automatically turn to trickle charge, overheat-detection to prevent over-charging, short circuit protection, and reverse polarity protection.

【How to change the mode of Charge & Discharge】

“CHG” -- Charging;??
“DISCHG” -- Discharging;
“ERROR” -- install the battery incorrectly or the battery is broken.

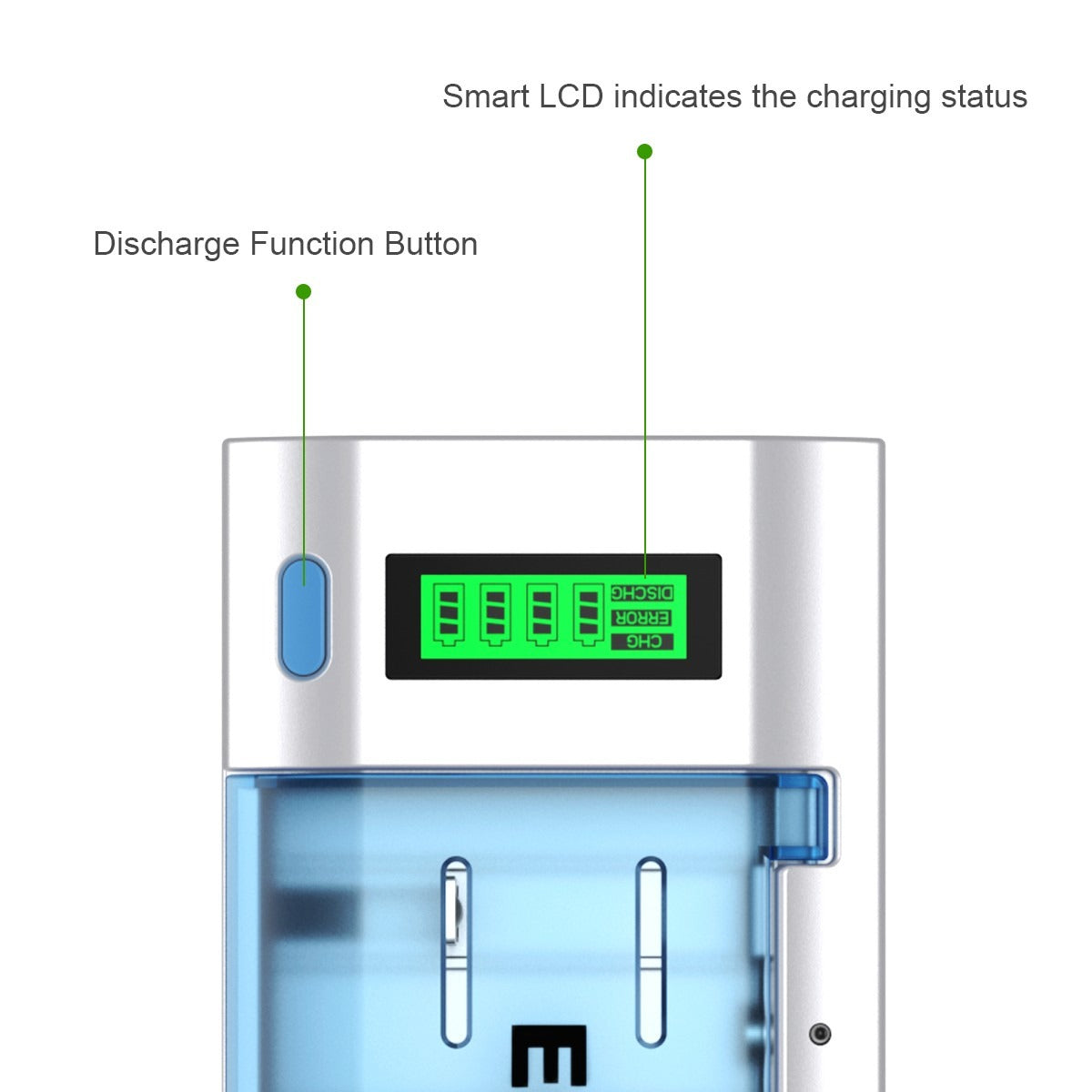

EBL 906 battery charger can both recharge and discharge the batteries by switching the blue button below the LCD screen.
Discharge and Charge:?Press the blue button to discharge the battery.?LCD displays "DISCHG". At the same time, 1-4pcs?AA/AAA/C/D Ni-MH Ni-CD batteries automatically turn to discharging mode. The charger will resume charging mode after completion of discharge.?Note:?9V batteries?cannot be discharged.

【 0V Activation Function】

AA/AAA battery slots:?activate the AA/AAA batteries?larger than 0.22V.
9V battery slot:?0V can be activated.

【Specification】

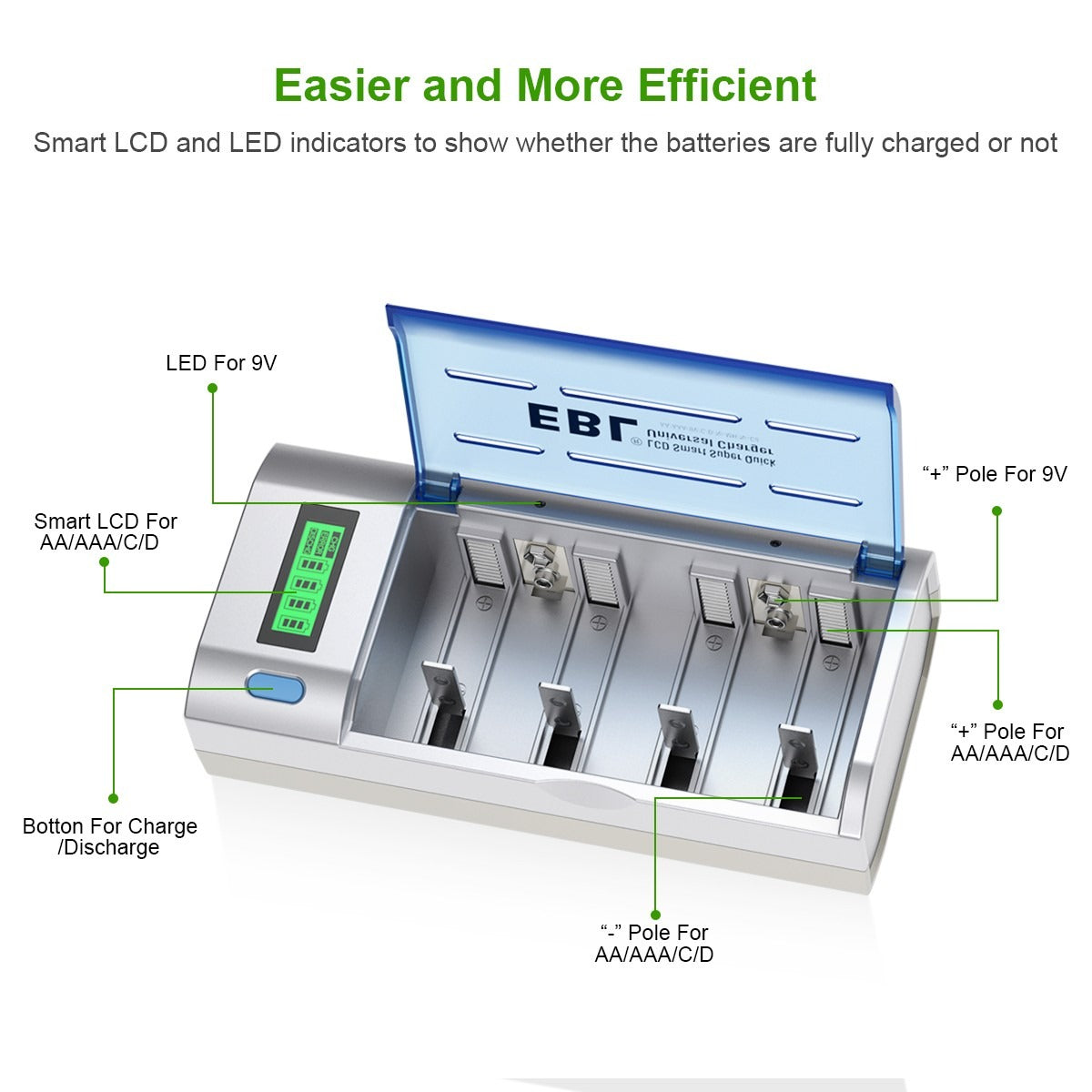

• LED will not turn off when fully charged for 9V battery, please remove the 9V battery timely when fully charged.
• Please ensure the battery installed is correct: make the +/- pole of the battery is match for the +/- pole of the charger.
• Using environment: 0℃ to 40℃, it is normal phenomenon that the battery is warmer than room temperature when charging.
• Do not disassemble or reassemble the charger by yourself for safety reason.

• Work Temperature:?Surface temperature of charger ≤ 60℃. Surface temperature of battery ≤ 45℃.

??
