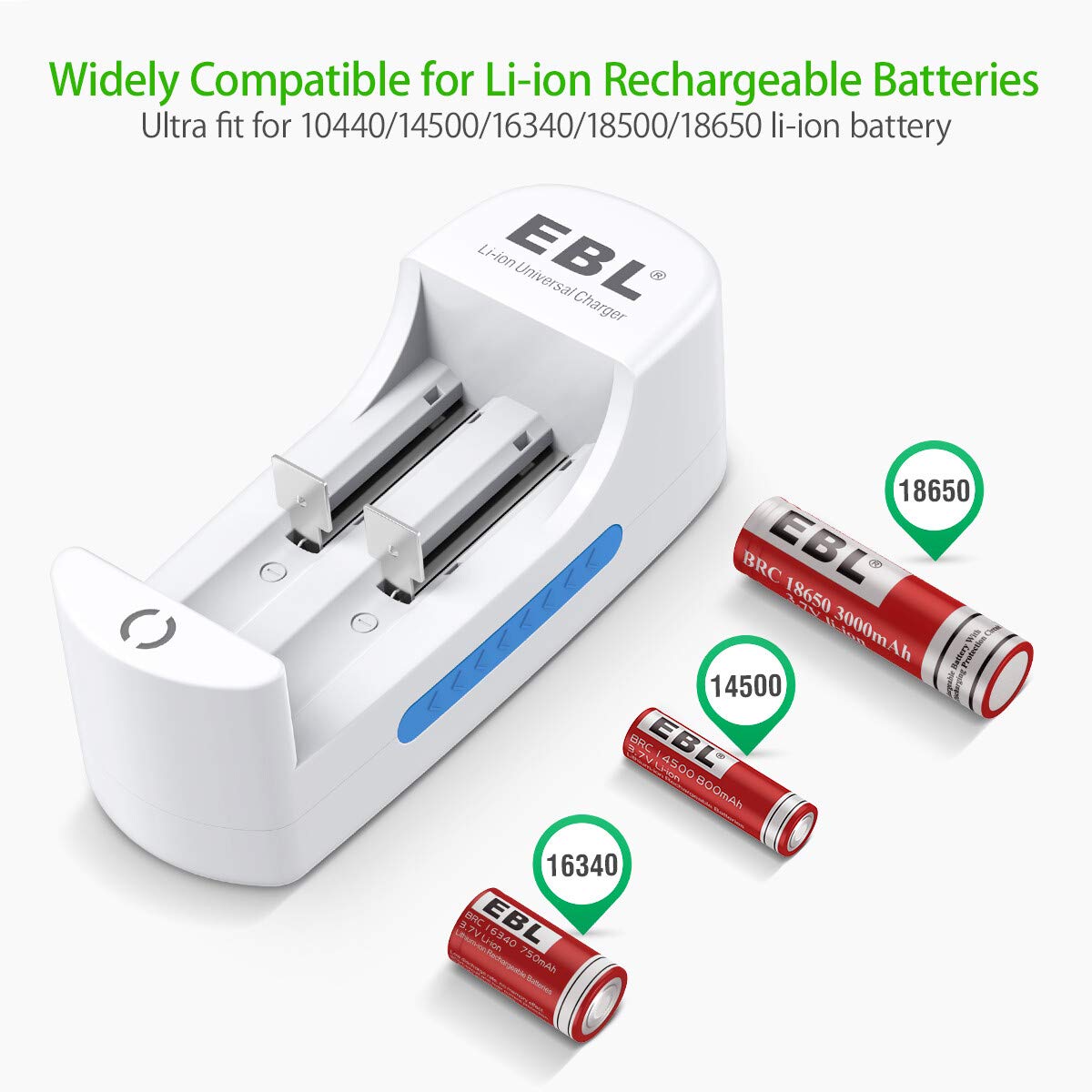

Compatible: Freely Charging 1 or 2 Pcs Li-ion IMR INR ICR 18650 18490 18500 18350 17670 16340 RCR123A 14500 10440 Batteries.

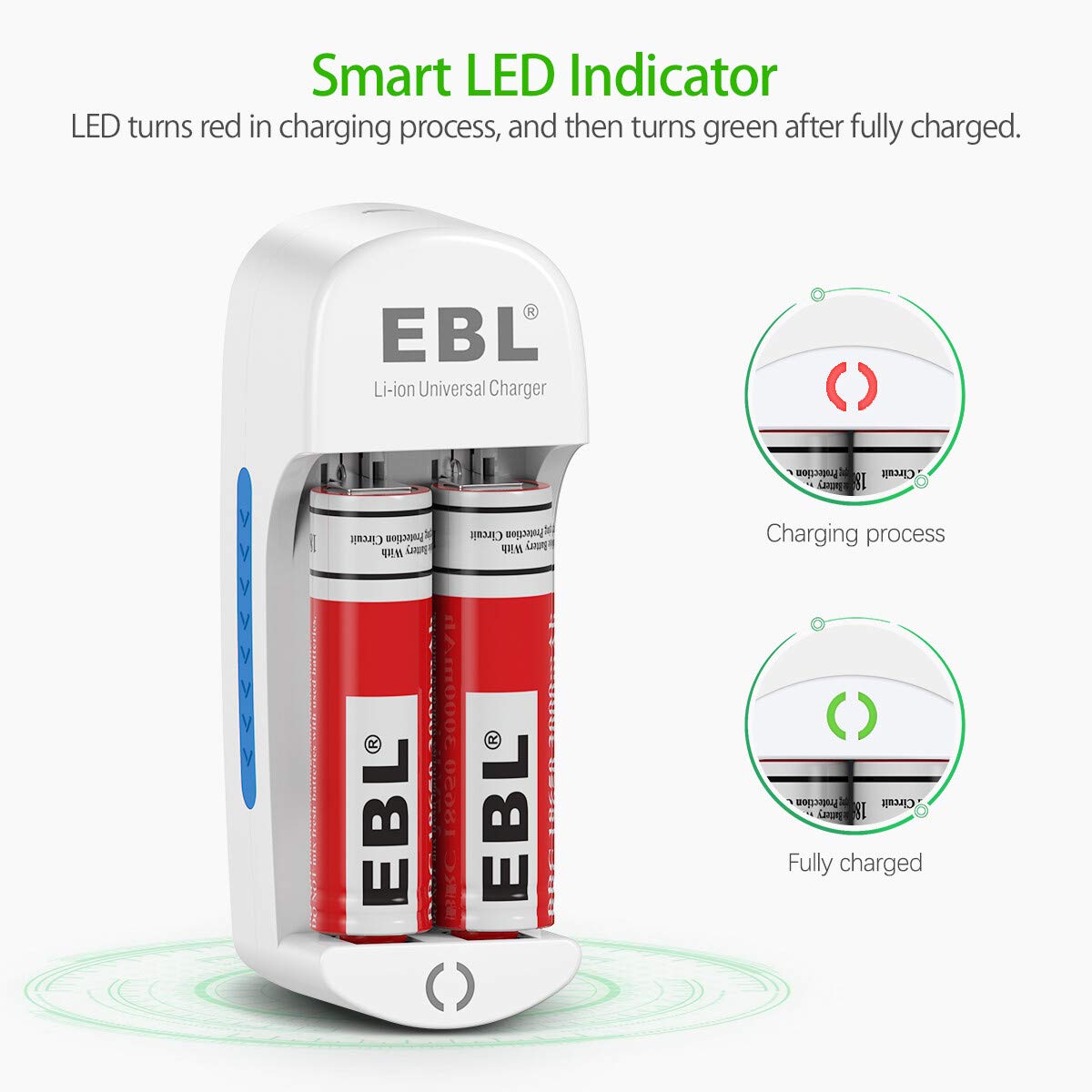

Smart LED Display: The 2 slot charger will charge the lithium batteries when plug in, and the indicator light display in red, then turn into green after fully charged. (Note:?The Indicator light turns into green once the battery voltage reaches 4.1V-4.2V.)

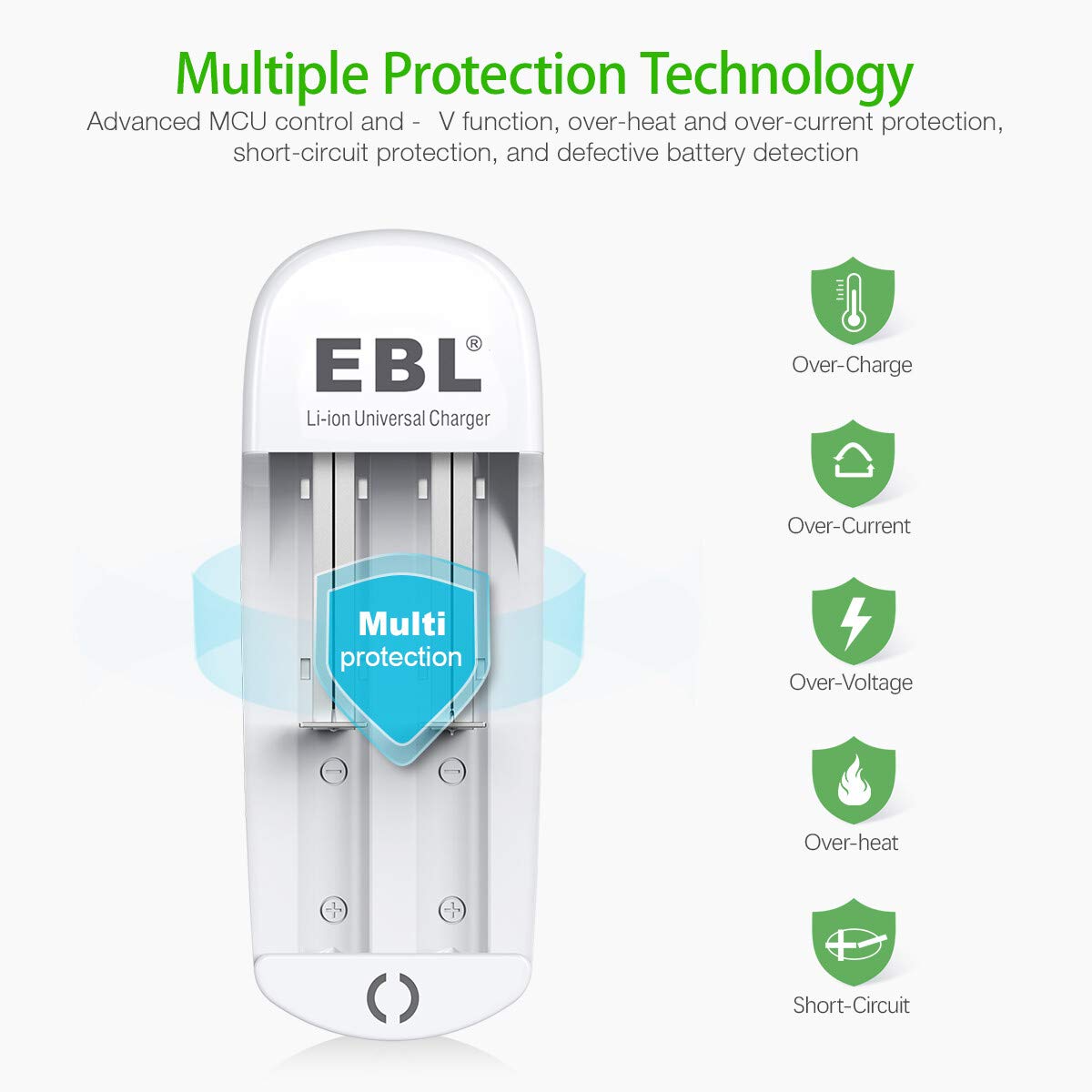

Multiple Protection: The charger uses the MCU control technology, providing the constant current and constant voltage safety model. Advanced MCU control and- function, over-heat, and over-current protection, short-circuit protection, and defective battery detection.

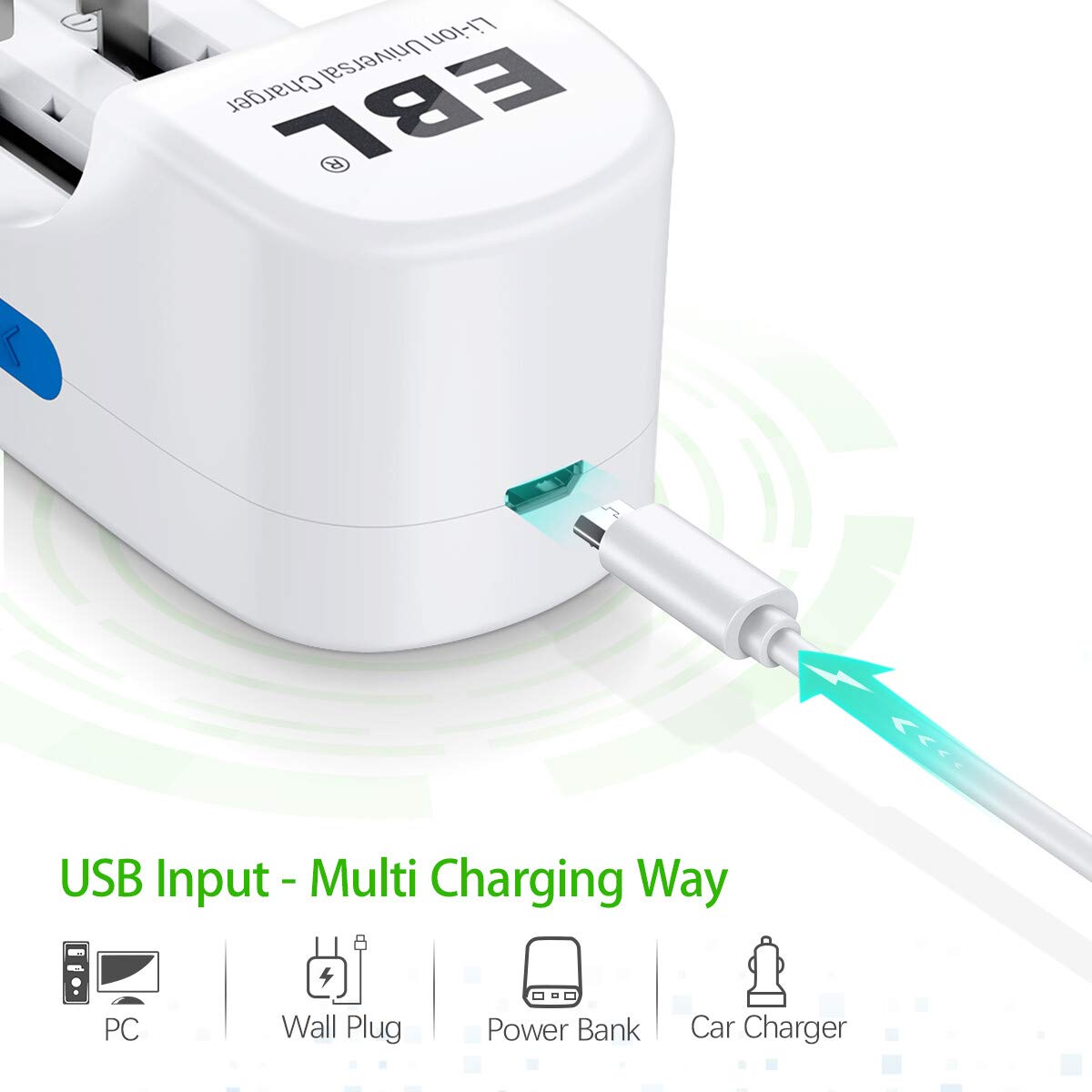

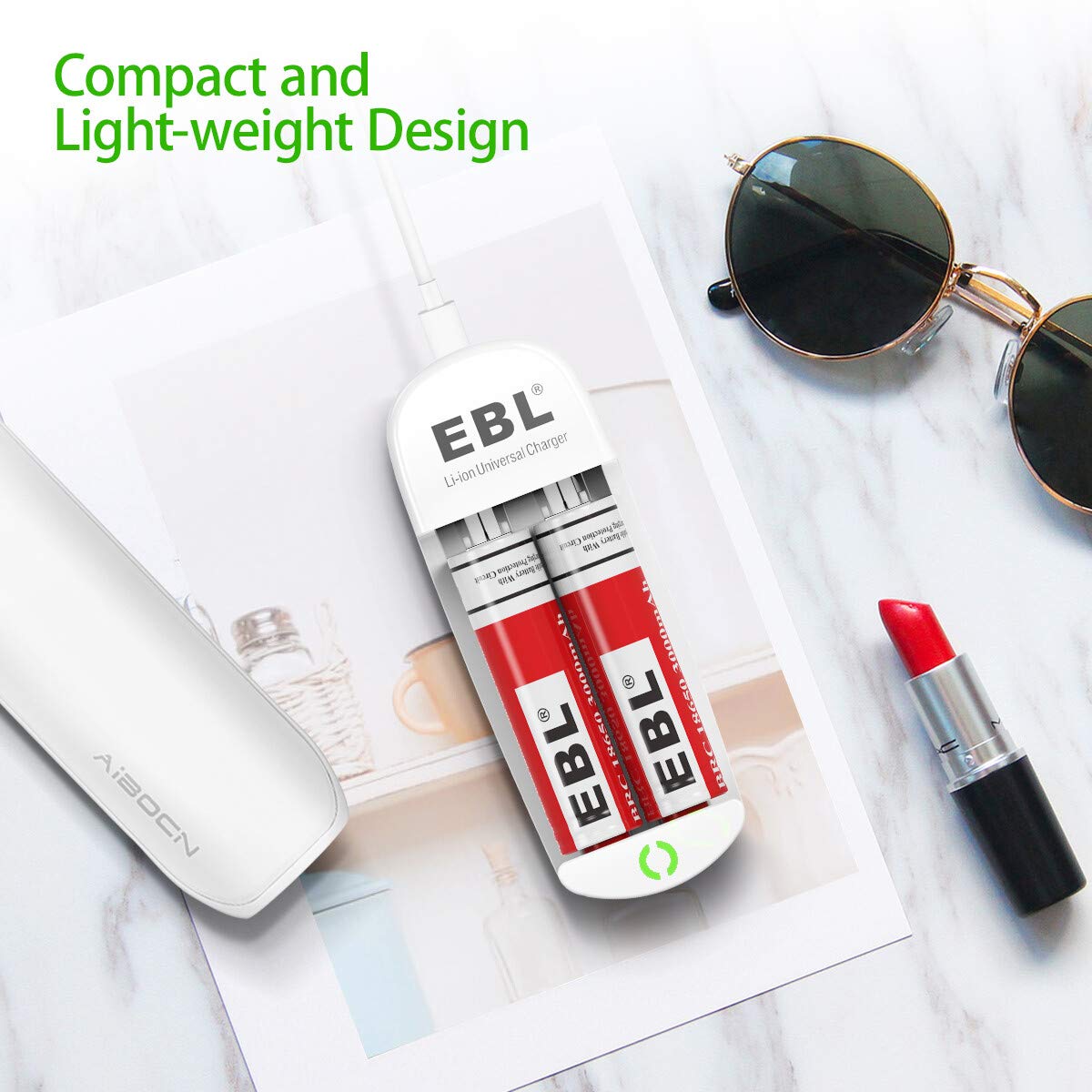

Small and Durable: USB Input with small but durable body, you can charging your batteries with USB adapter, car charger, power bank, anywhere you want to go.
Specification of
Model Number | 839 Battery Charger | Brand | EBL |
Input | DC 5V / 1A | Output | DC 4.1-4.3V 320mA±20% |
Compatible | Li-ion IMR INR ICR 18650 18490 18500 18350 17670 16340 RCR123A 14500 10440 Batteries |
No Load Power Consumption | 0.5W MAX | Full Load Power Consumption | 7W MAX |
Battery Charge Rate | >80% | ? | ? |
Size of charger | 117*45.5*42mm | Weight?of charger | 60±5g/2.12oz |
Specification of
| Battery Size | 14500 Li-ion Battery | Brand | EBL |
Capacity | 800mAh | Battery Type | Li-ion |
Nominal voltage | 3.7V | Rechargeable | Yes |
Standard Charge | CC/CV,0.2C5A, 4.20V | Standard Discharge | CC,0.2C5A, 3.00V |
Quick Charge Current | 800mA ?1C | Discharge Current | Rapid: 1600mA ?2C Max:?2400mA ?3C |
End-of-charge Voltage | 4.20V±0.05V | End-of-charge Current | 0.02C5A?（At CV mode） |
End-of-discharge Voltage | 3V | End-of-discharge?Current | 0.02C5A （At CV mode） |
Initial Impedance | Max: 70mΩ |
|
|
Weight of single battery | 20.2±2g/0.78oz | Dimensions of single battery | (50.2±0.6)*(14.5-0.7)mm |

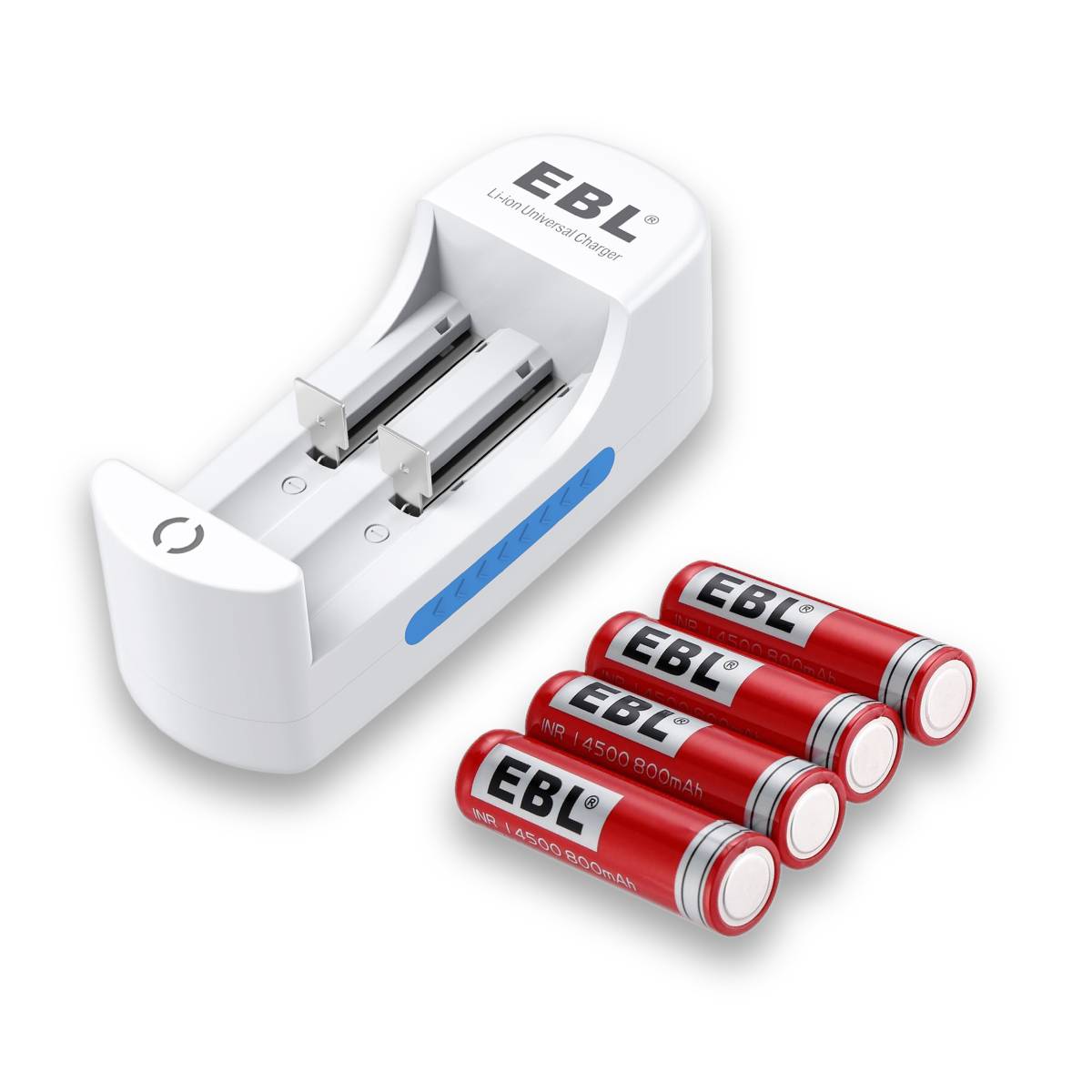

What You Get
- 1?x EBL 839 battery charger
- 1 x?user manual

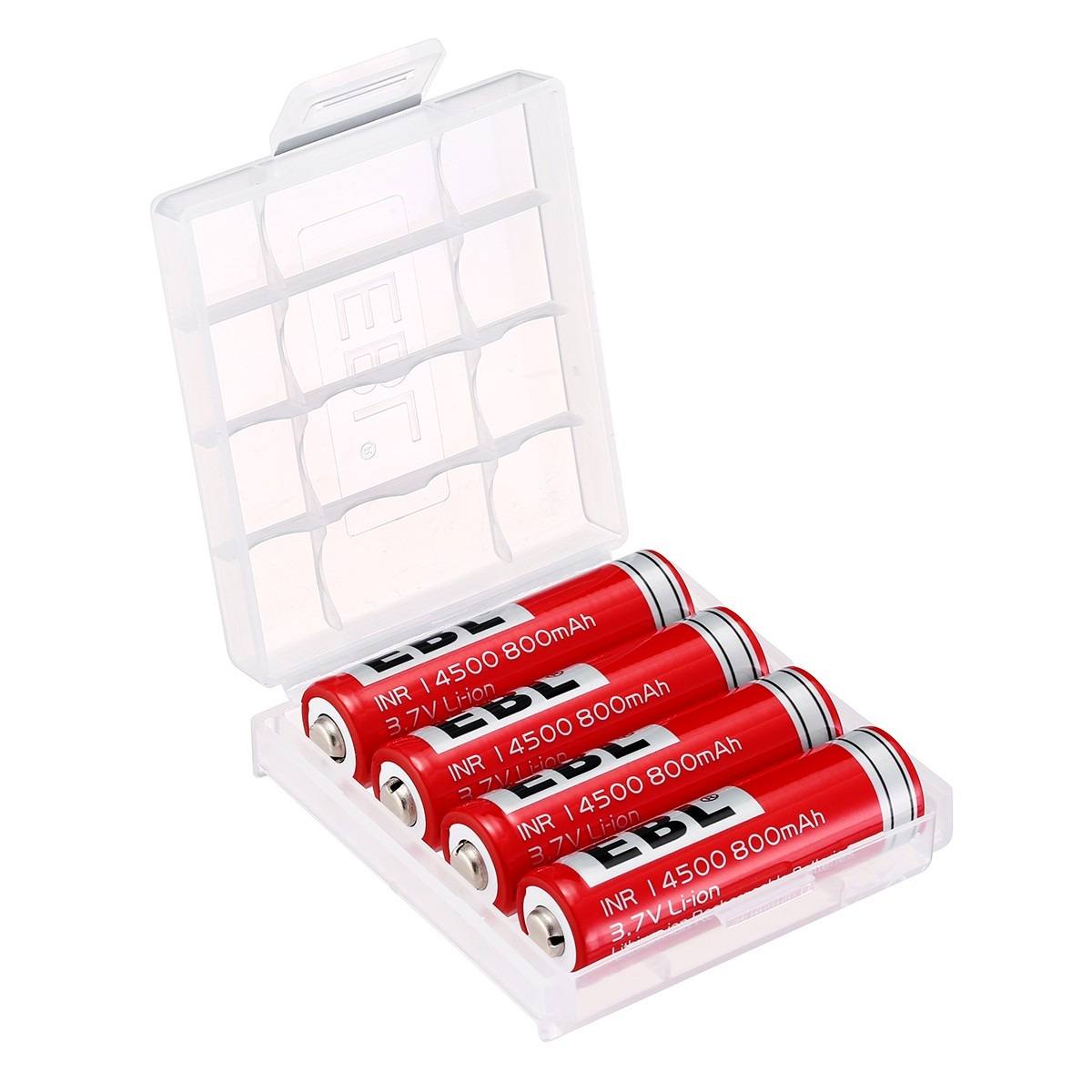

- 4 x 14500?Li-ion batteries
