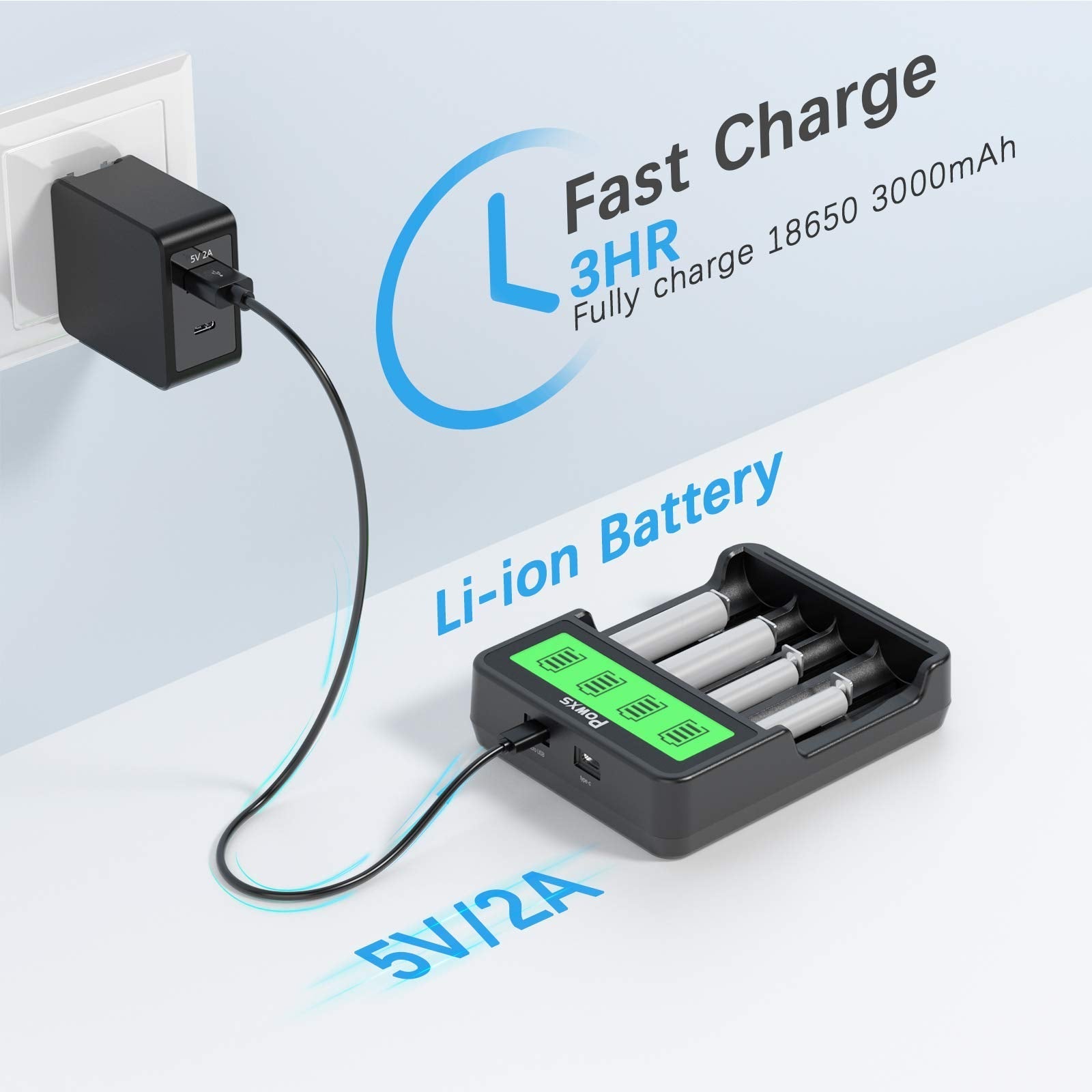

High Speed Charging: With POWXS advanced charging technology, POWXS 18650 battery charger delivers a blazing fast charge to your batteries, max 950mA each slot output for 3.7V batteries and max 450mA each slot output for 1.2V Ni-MH batteries , provide the fastest possible charge to all Brand C/AAA/AA batteries and 3.7V batteries in 4 hours. Good efficiency to save a lot time for you !

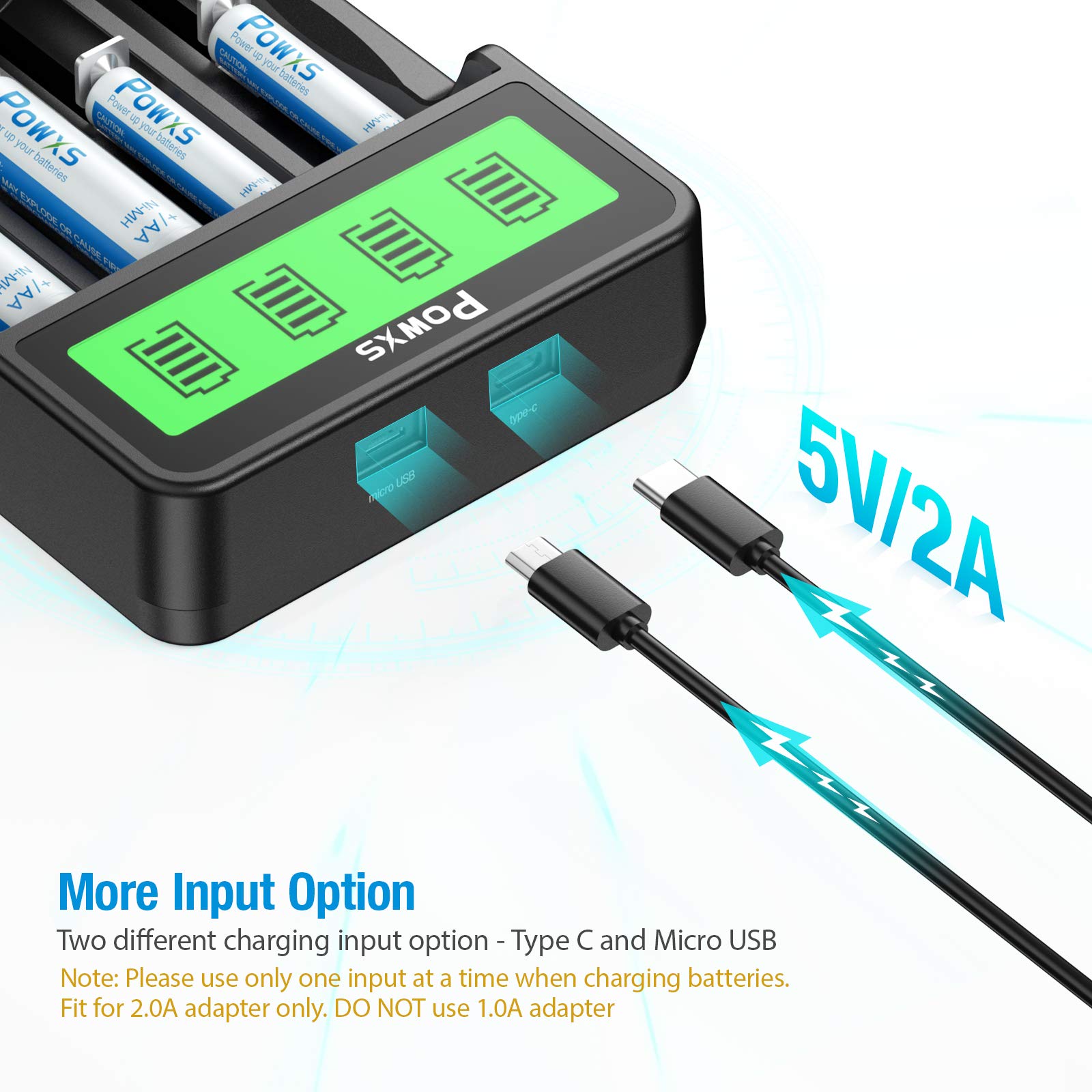

Micro-USB & Type-C Dual Input: Universal Micro-USB& Type-C dual input , POWXS Universal 18650 battery charger can adapt for any 5V 2A power bank, computer , car charger, USB Wall Charger etc. POWXS 18650 charger can freely charge batteries any time and anywhere.

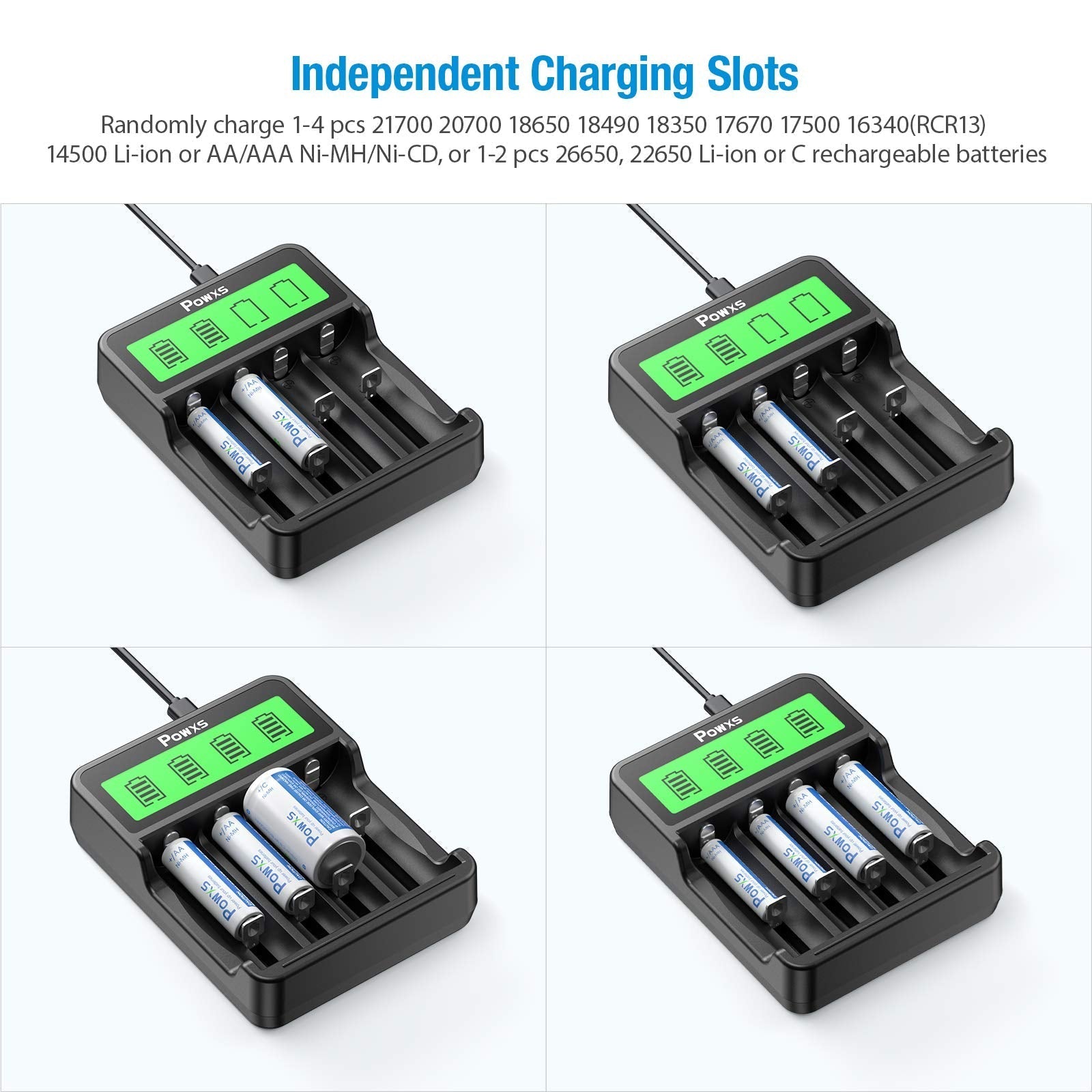

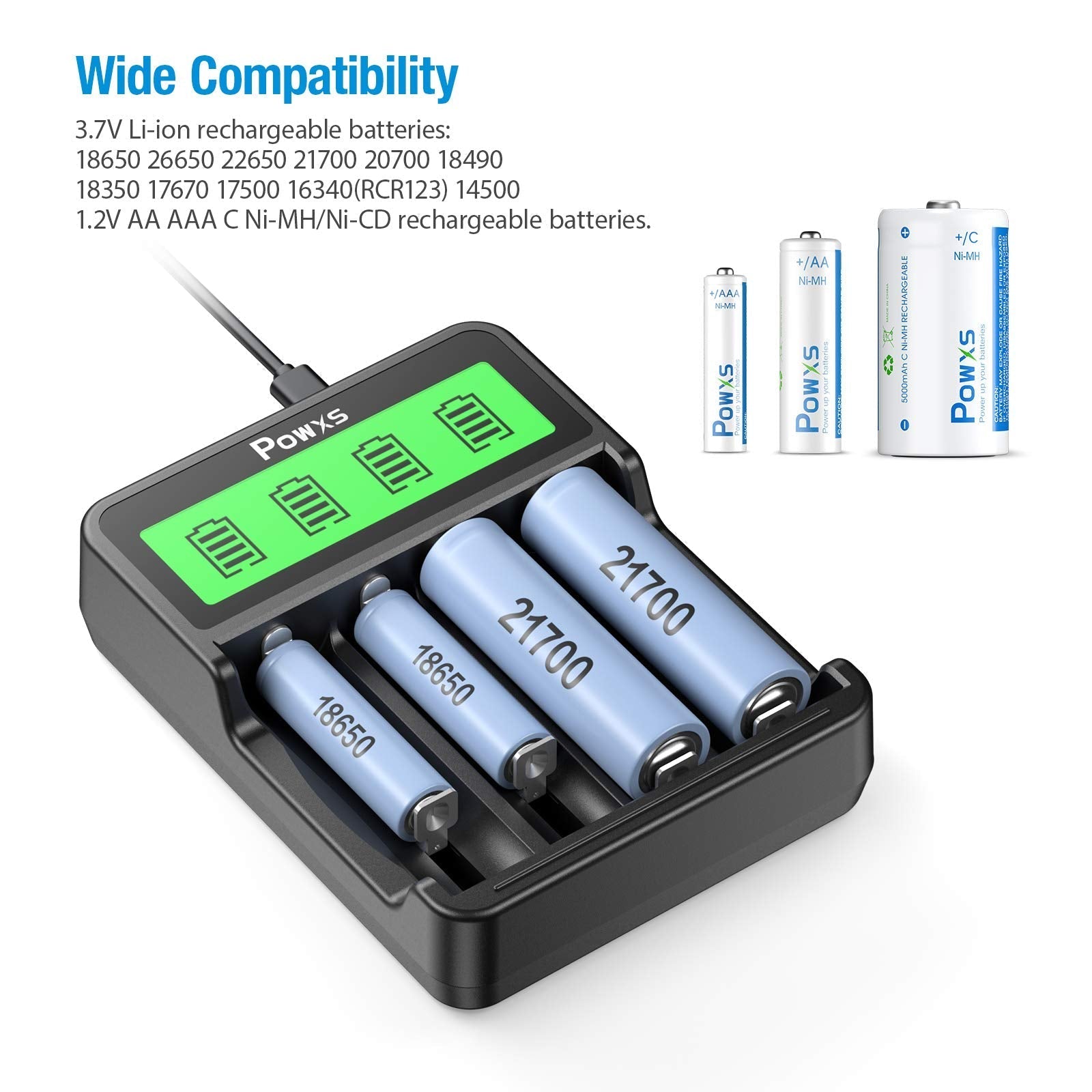

Universal Battery Charger: POWXS 18650 battery charger can charge for any 1.2V Ni-MH C AA AAA batteries and 3.7V 18490 18350 17670 17500 16340（RCR123）14500 18650 Li-ion Batteries, easily charge 1-4pcs of different kinds of batteries at one time, which is your home life good partner and the reliable travel friend.

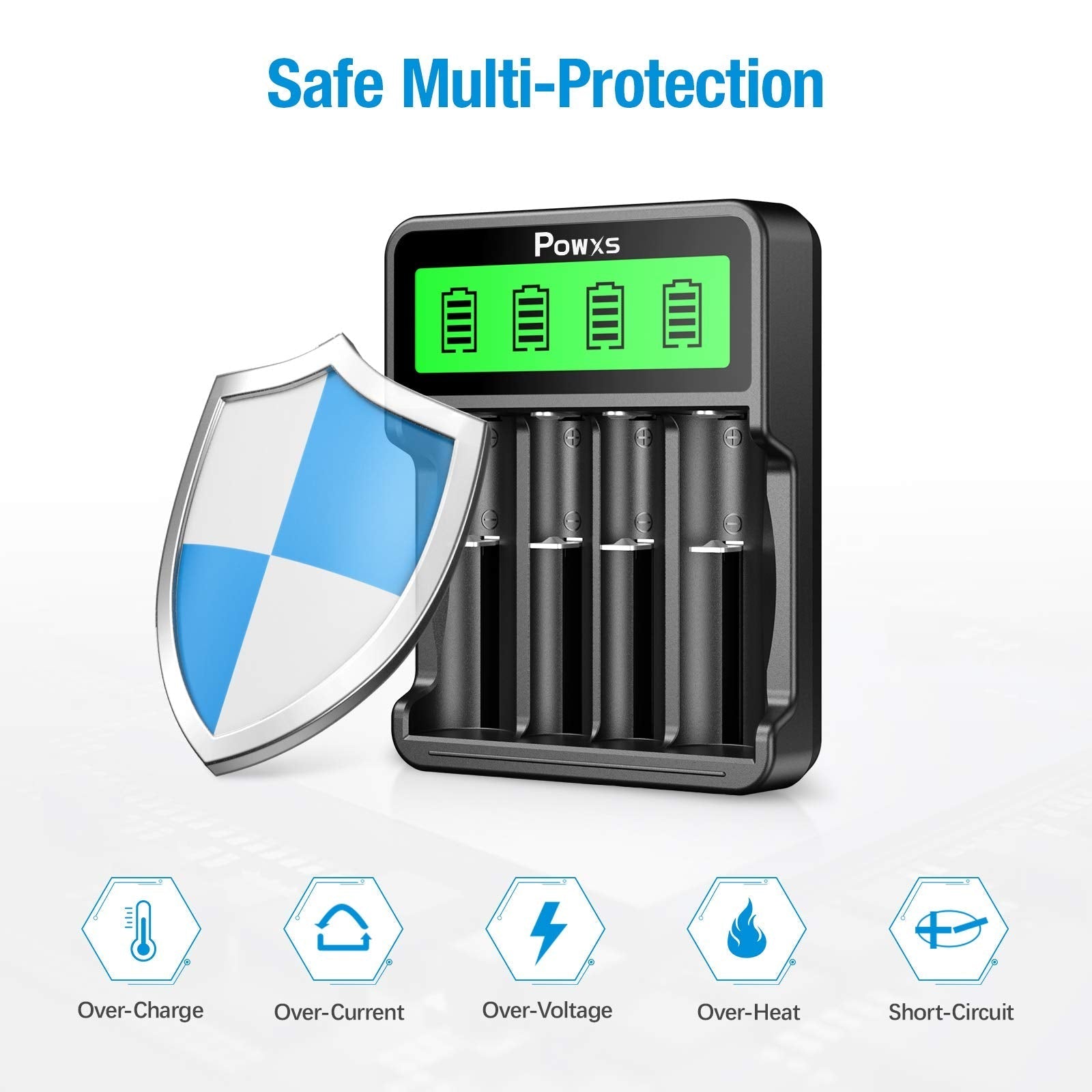

Multi Protection: POWXS smart battery charger adopted high quality fire-proof material, along with multiple protection technologies, could effectively keep your battery away from over-charging, over-current, over-voltage, over-heated and short circuit, etc. Which eliminate your worries about fire/explosion/battery leakage.

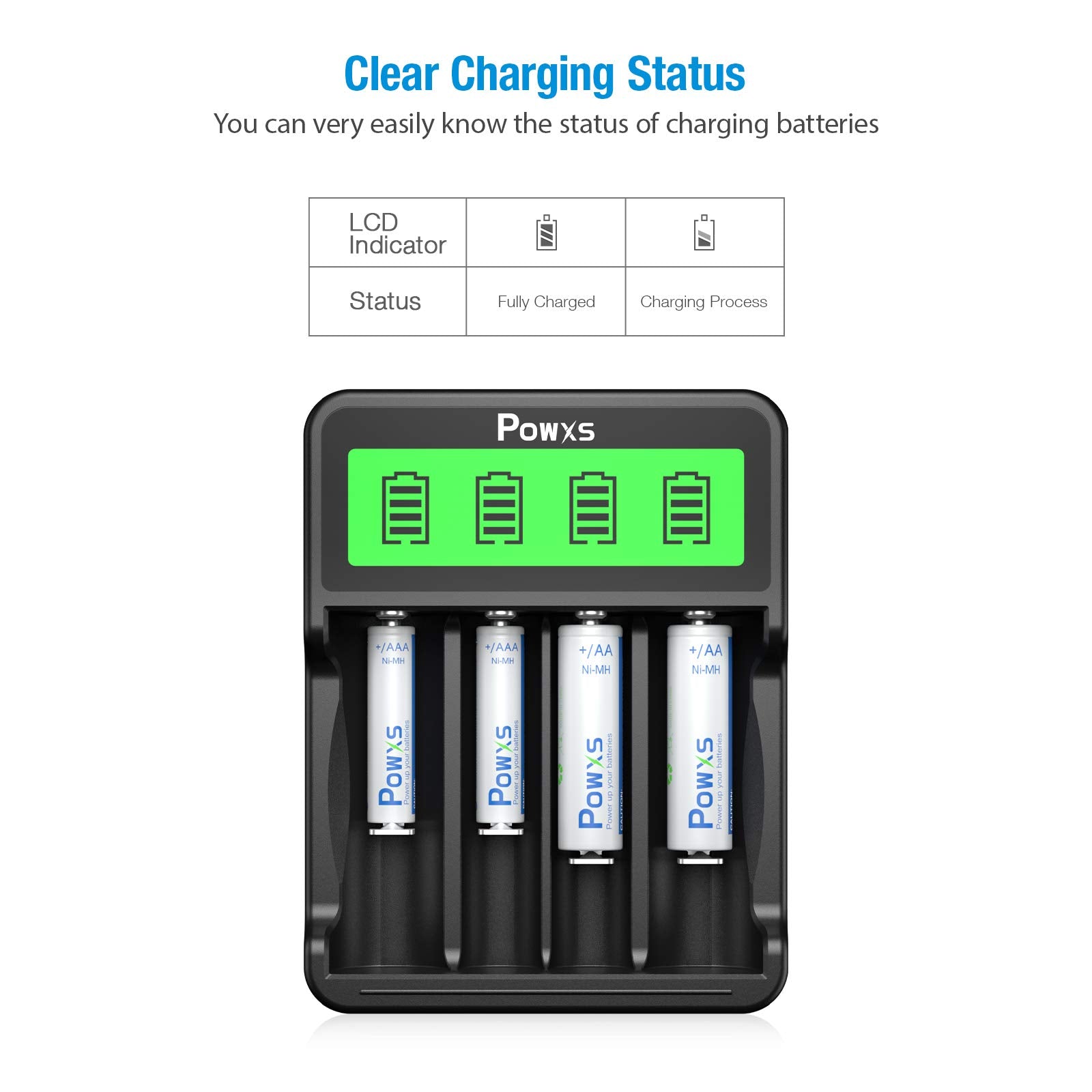

Smart LCD Display: With a smart LCD, POWXS Universal AA AAA battery charger can easily let you know about the charging process. The LCD display could not only flash to show the real-time power capacity when charging, but also identify the bad batteries and give signal, make your charging experience more intelligent.
Specification of
Model No. | SW-4P Battery Charger | Brand | POWXS |
Compatible | Lithium Li-ion : 18650 26650 18490 17670 17500 22650 21700 20700 18350 16340(RCR123) 14500 Batteries
Ni-MH Ni-CD : AA AAA & C Batteries |
Input | DC5V/2A Micro USB?/?Tpye-C |
Output | CV=3.7V (0.95A*2 ±50mA)
The current is 0.5A for 1 slot and 3 slots or 2 slots and 4 slots charging at the same time, and 0.95A for any other 2-slot combination.
CV=3.7V (0.45A*4 ±50mA)
CV=1.2V (0.4A*4 ±50mA) |
No-load voltage | 5V±0.5V | No Load Power Consumption | <5W |
Weight of charger | 155g/5.47oz | Dimensions of charger | 135*105*32.5mm |

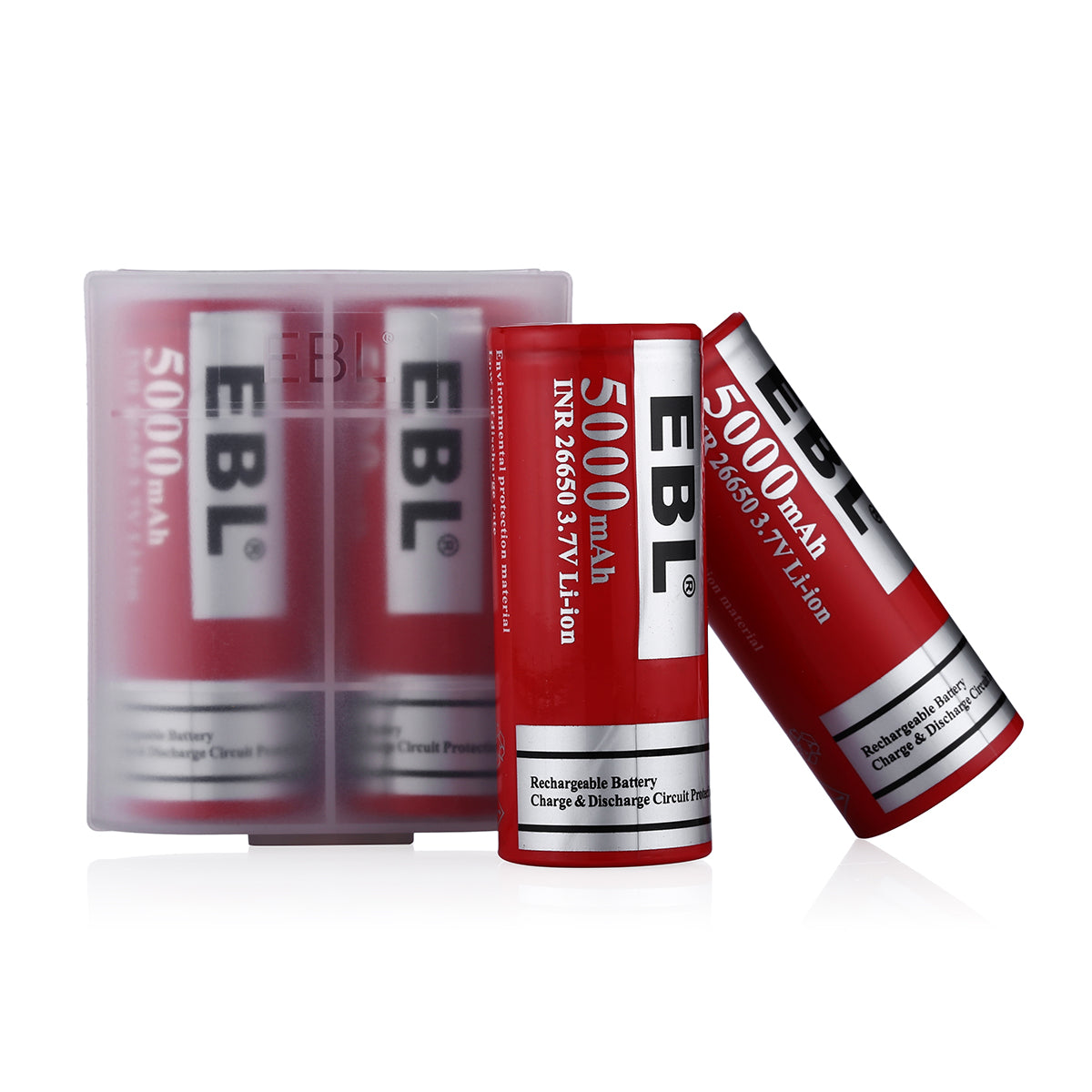

Specification of?
| Battery Size | 26650 batteries
| Battery Type | Li-ion |
| Rechargeable | Yes | Brand | EBL |
| Cell | INR 26650 5000mAh | Capacity | 5000mAh |
Store?humidity | 25%-85% | Nominal Voltage | 3.7V |
| Charge Voltage | 4.2V | Discharge ending voltage | 2.75V |
| Internal?resistance | ≤70mQ2(AC?Impedance,?1000?Hz) | | ? |
| Charging current | Standard: 0.2C (1000 mA) Max:?0.5C(2500 mA) | Discharge current | Standard:?0.2C (1000 mA) Max:?1C(5000 mA) |
| Weight of single cell | 91.3±5g/3.4oz | Dimension of single?cell | 65.5*26.3mm |

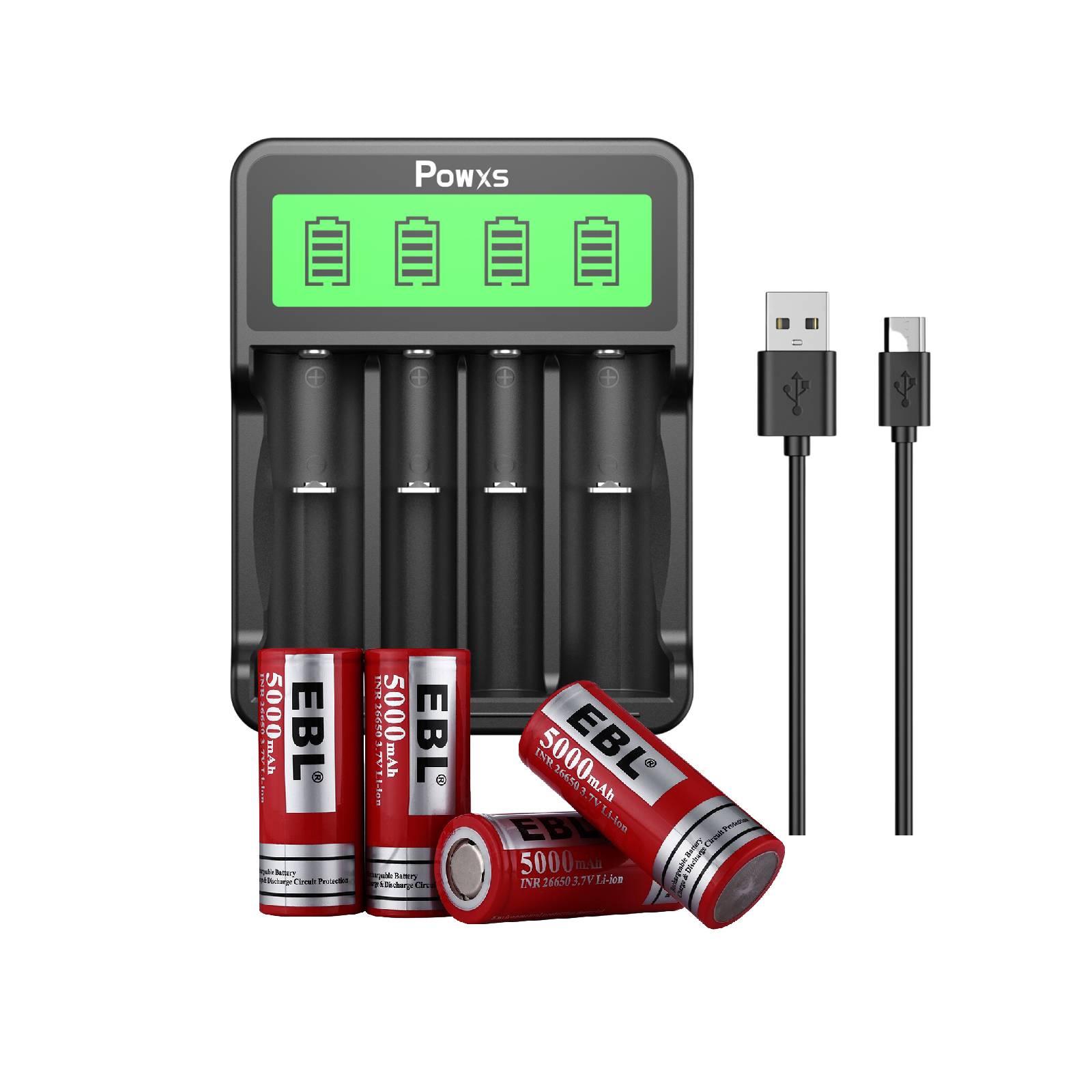

What You Get
- Universal Battery Charger *1
- USB cable *1
- User manual * 1
- 4pc / 8pc / 16pc 26650 Li-ion rechargeable batteries?
