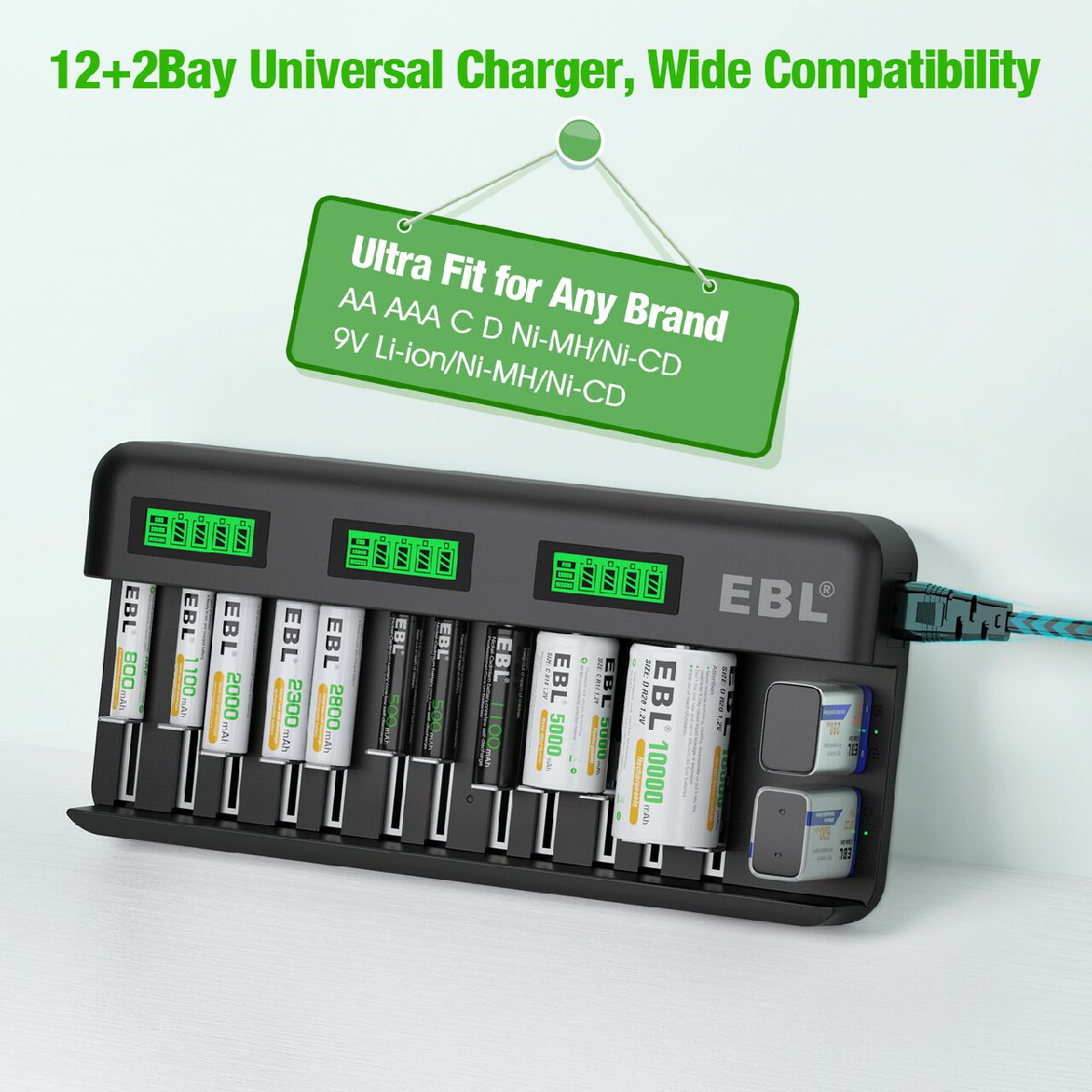

12+2 Bay Universal Charger: Up to 14 Different charging slots, allow you to charge 1-12PCS AA AAA or 1-6PCS C D Ni-MH/Ni-CD rechargeable batteries and 1-2 PCS 9V Li-ion/Ni-MH/Ni-CD rechargeable batteries, ultra-fit for any brand batteries.?Both types of rechargeable batteries can be charged at the same time.

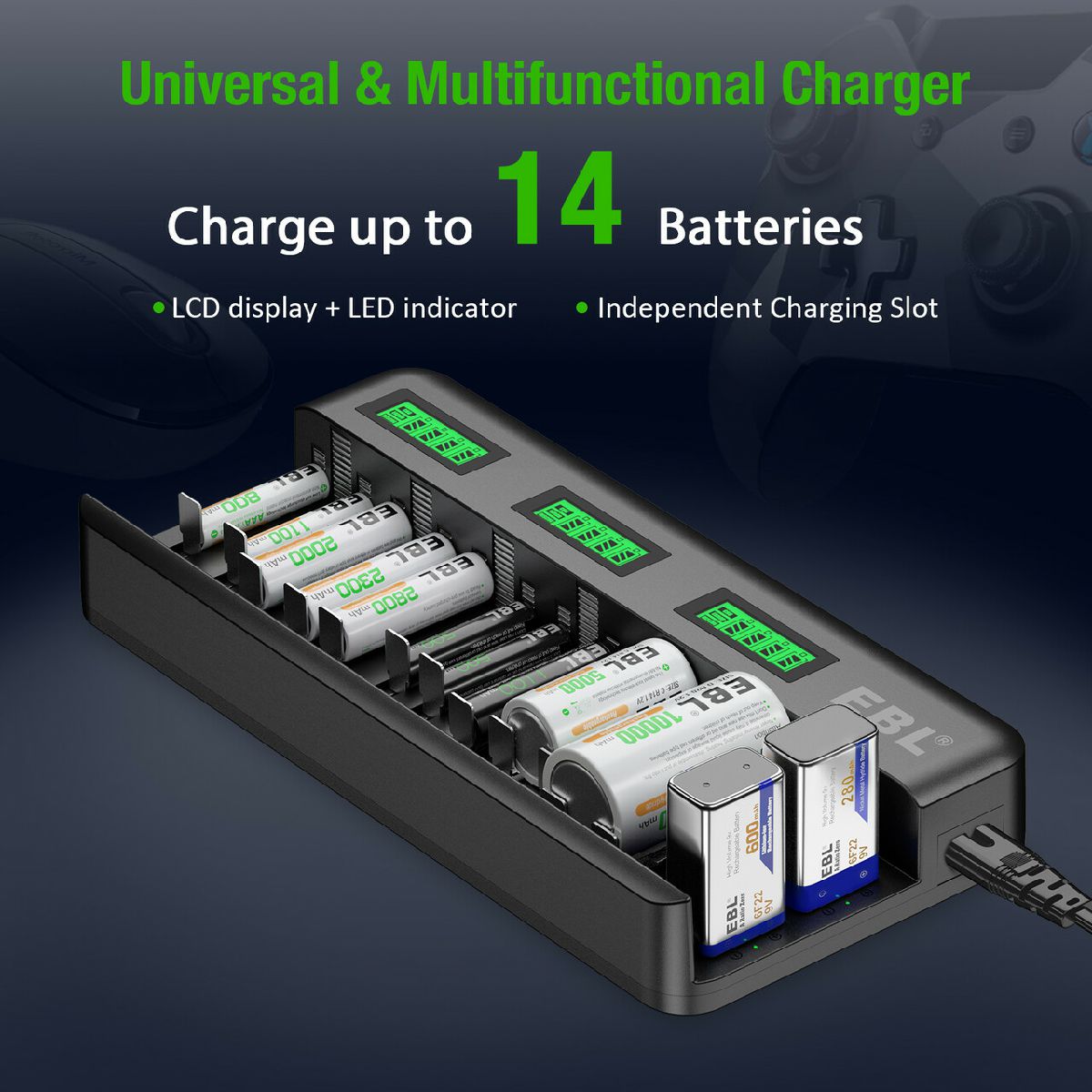

Individual 12+2 Charging Slots Universal Battery Charger: Could charge any number batteries without in pairs, to meet the needs of charging your multiple rechargeable batteries.

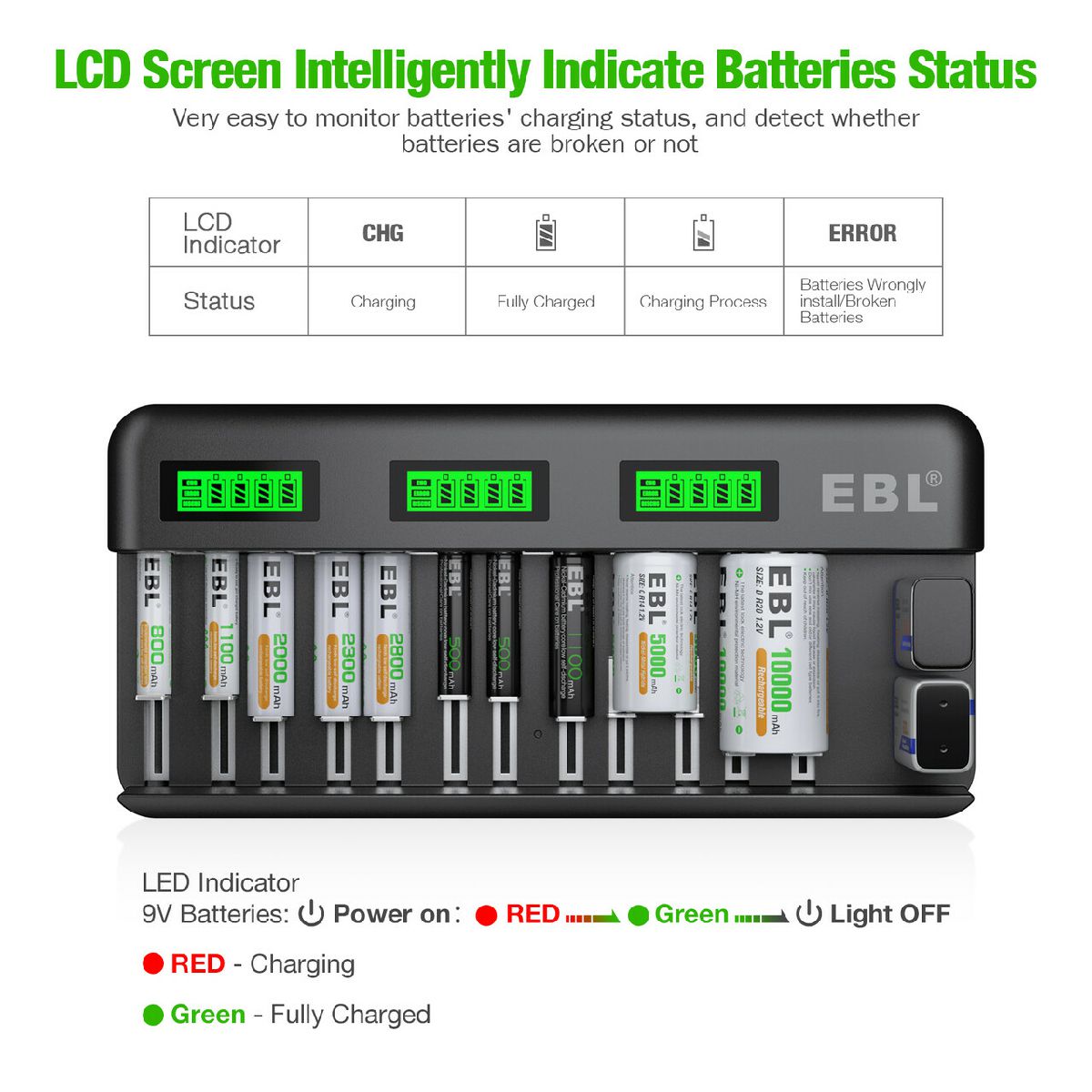

LCD Display Charger with LED Indicator: Rechargeable AA AAA C D Battery charger with smart LCD screen indicates the whole charging process for the AA AAA batteries and C D rechargeable batteries. "CHG" indicates charging. "ERROR" indicates battery damage or installation error, support battery repair function. (If the battery voltage is too low (0-0.9V), the charger can automatically repair the battery.)
LED indicates the 9V charging status, Red-Charging; Green-Fully Charged.

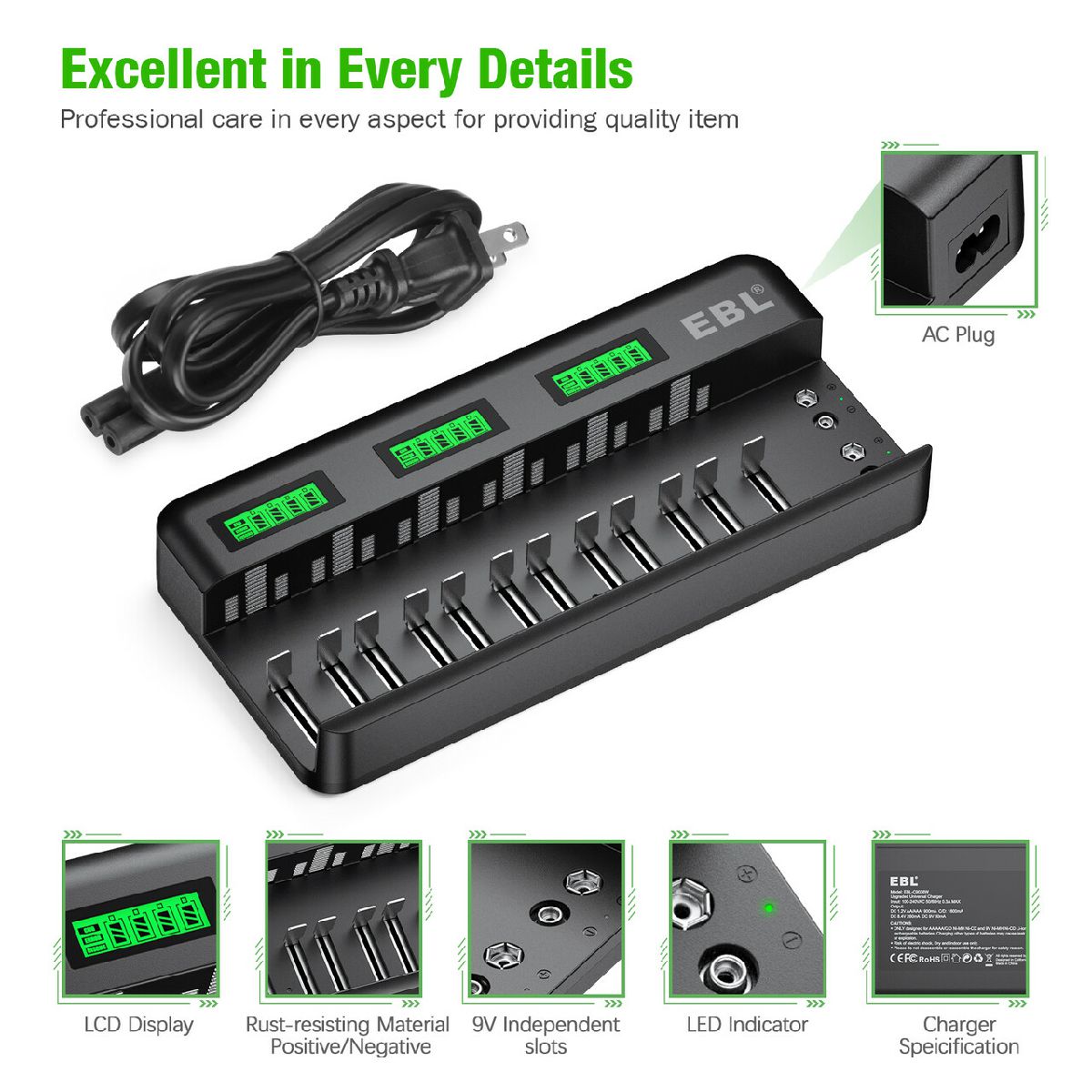

AC Power Supply and Excellent Charger in Every Details: Comes with an AC power cable. Worldwide 100~240v AC adapter, more convenient and easy for daily use, no need to worry about charging voltage, save your time.

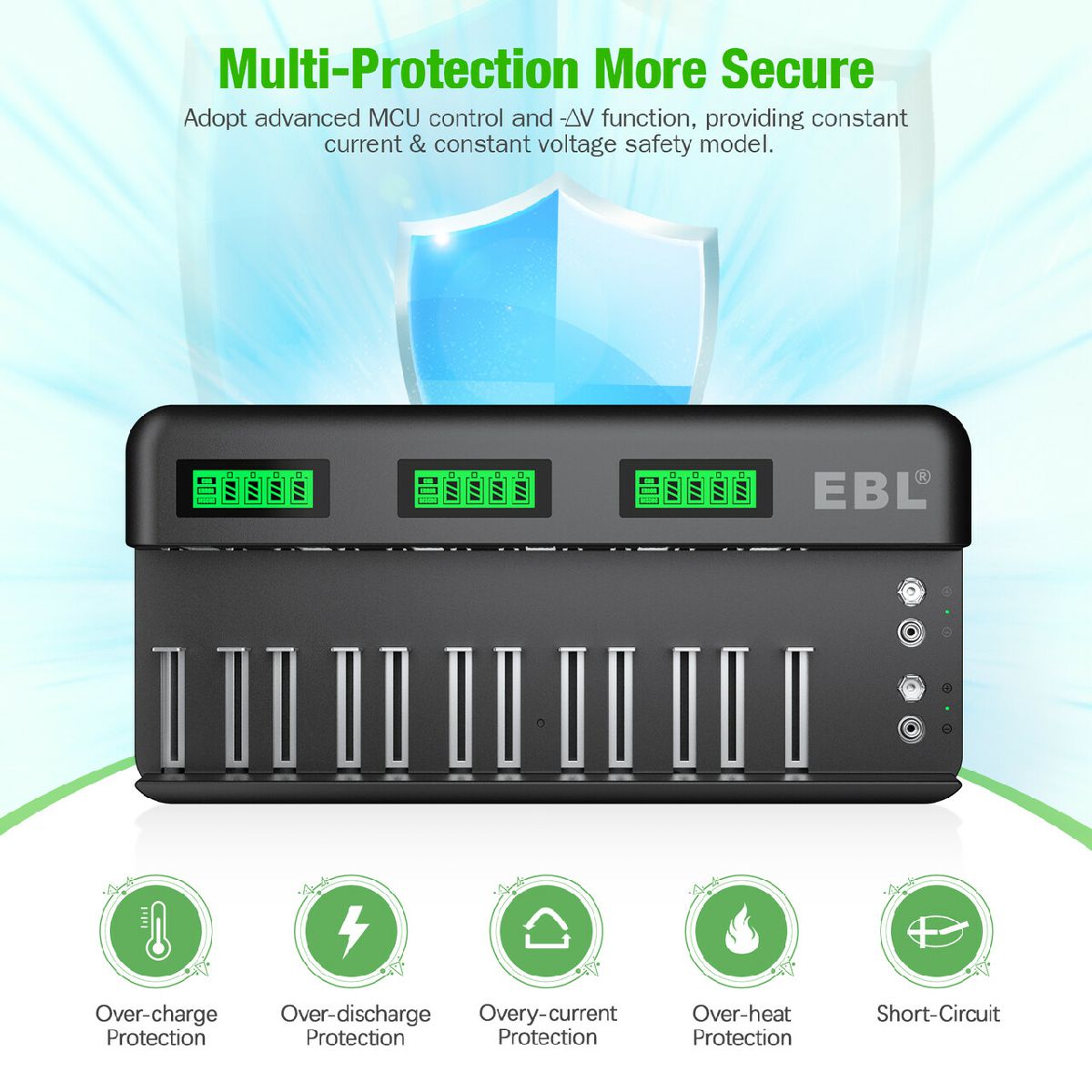

Safety Guarantee: Advanced MCU control and -?V function, over-heat and over-current protection short-circuit protection, non-rechargeable and defective battery detection.
Specifications of?
Model No. | C9036W Universal Battery Charger | Brand | EBL |
Compatible | 1-12 pieces of AA?AAA/Ni-MH Ni-CD rechargeable batteries
1-6 pieces of C D Ni-MH Ni-CD rechargeable batteries
1-2 pieces of 9V Li-ion Ni-MH/Ni-CD rechargeable batteries |
|
Input | 100-240V AC 50/60HZ 0.3A MAX |
Consume when unloading battery | 2W MAX | Consume when all channels loading batteries | 30W MAX |
Output | AA/AAA: DC 1.2V 900mA
C/D: DC 1.2V 1800mA
9V: DC 8.4V 260mA/9V 80mA |
Dimensions of charger | (259*123*39.8)±3 mm | Weight of charger | 403±10g/14.57oz |
- Working temperature: 0℃ - 35℃; Storage temperature: -10℃ -50℃
- Surface temperature of Charger: 35℃-80℃; Surface temperature of Battery: 25℃-60℃
- 1Pcs AA/AAA/C/D Ni-MH Ni-CD Rechargeable Batteries Charging Time Cable:?AAA 800-1100mAh: 0.8-1.2 hours; AA 2300-2800mAh: 2.5-3 hours; C 5000mAh: 2.7 hours; D 10000mAh: 5.5 hours
- 1Pcs 9V Batteries Charging Time Cable:?9V 600mA: 2.3 hours; 9V 280mA: 3.5 hours
Specifications of

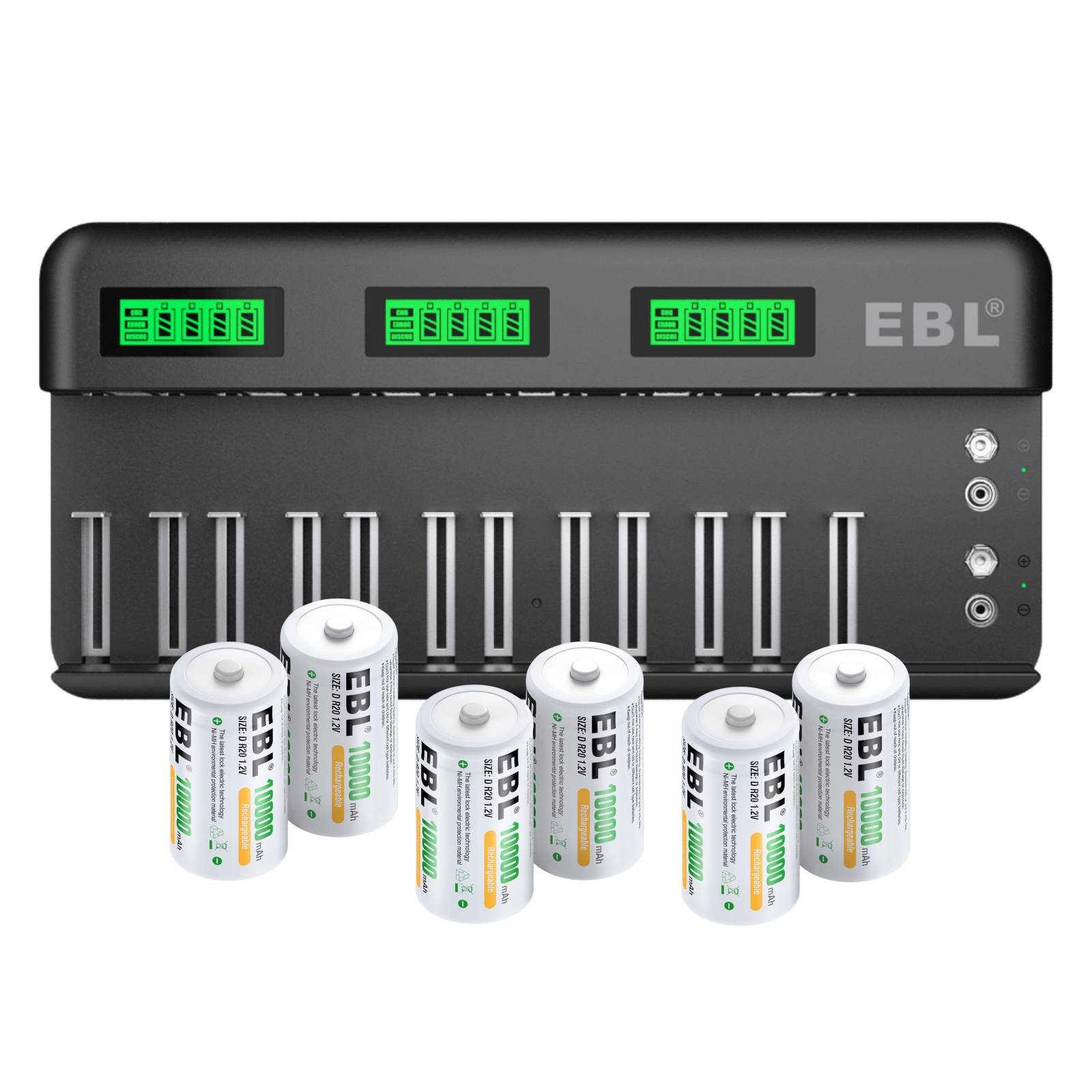

| Battery Size1 | D Batteries | Rechargeable | Yes |
| Capacity | 10000mAh | Battery Type | Ni-MH |
| Voltage | 1.2V | Brand | EBL |
| Weight of?Single Cell | 126±2g/4.45oz | Dimensions of Single Cell | 33*61.5mm |
Specifications of
| Battery Size | C?Batteries | Rechargeable | Yes |
| Capacity | 5000mAh | Battery Type | Ni-MH |
| Voltage | 1.2V | Brand | EBL |
| Weight of?Single Cell | 73g/2.57oz | Dimensions of Single Cell | (50.0-1.5)*(25.8-1.0)mm |
What You Get
| C9036W Battery Charger + 4 x C Batteries (5000mAh) + 4 x D Batteries (10000mAh) | - 1 x C9036W LCD Universal Battery Charger
- 1 x User manual
- 1 x AC power cable
- 4?x D?Batteries 10000mAh
- 4?x?C Batteries?5000mAh
|
| C9036W Battery Charger + 6 x C Batteries (5000mAh) | - 1 x C9036W LCD Universal Battery Charger
- 1 x User manual
- 1 x AC power cable
- 6 x?C Batteries?5000mAh
|
| C9036W Battery Charger + 6 x D Batteries (10000mAh) | - 1 x C9036W LCD Universal Battery Charger
- 1 x User manual
- 1 x AC power cable
- 6?x D?Batteries 10000mAh
|
| C9036W Battery Charger + 8 x C Batteries (5000mAh) + 8 x D Batteries (10000mAh) | - 1 x C9036W LCD Universal Battery Charger
- 1 x User manual
- 1 x AC power cable
- 8 x D Batteries 10000mAh
- 8 x C Batteries 5000mAh
|
| C9036W Battery Charger + 12 x C Batteries (5000mAh) | - 1 x C9036W LCD Universal Battery Charger
- 1 x User manual
- 1 x AC power cable
- 12 x C Batteries 5000mAh
|
| C9036W Battery Charger + 12 x D Batteries (10000mAh) | - 1 x C9036W LCD Universal Battery Charger
- 1 x User manual
- 1 x AC power cable
- 12 x D Batteries 10000mAh
|
