Battery Cell Composition | LiFePO4 cell | Nominal Voltage & Rated Capacity | 12.8V 100Ah |
Self-discharge Rate(77℉/25℃) | 3%/month | Charge Voltage | 14.6±0.2V |
Float Charge Voltage | 13.8V | Standard Charge/Discharge Current | 20A |
Recommended Charge Current | ≤50A | Recommended Discharge Current | ≤100A |
Allowed Max. Charge/Discharge Current | 100A | Peak Discharge Current | 200A (3 seconds) |
Storage Temperature Range | -5°C ~ 45°C / 23°F ~ 113°F | Operating Charge Temperature Range | 0°C ~ 45°C / 32°F ~ 113°F |
Operating Discharge Temperature Range | -20°C ~ 60°C / -4°F ~ 140°F | Internal Resistance | ≤30mΩ |
Product Dimensions | 260x168x210 mm / 10.24x6.61x8.27 in | Product Weight | 9.88 kg / 21.8 lbs |
Cycle Life@100%DOD | ≥2000 cycles | Warranty | 10-year |
Upgrade to Power, Durability, and Peace of Mind

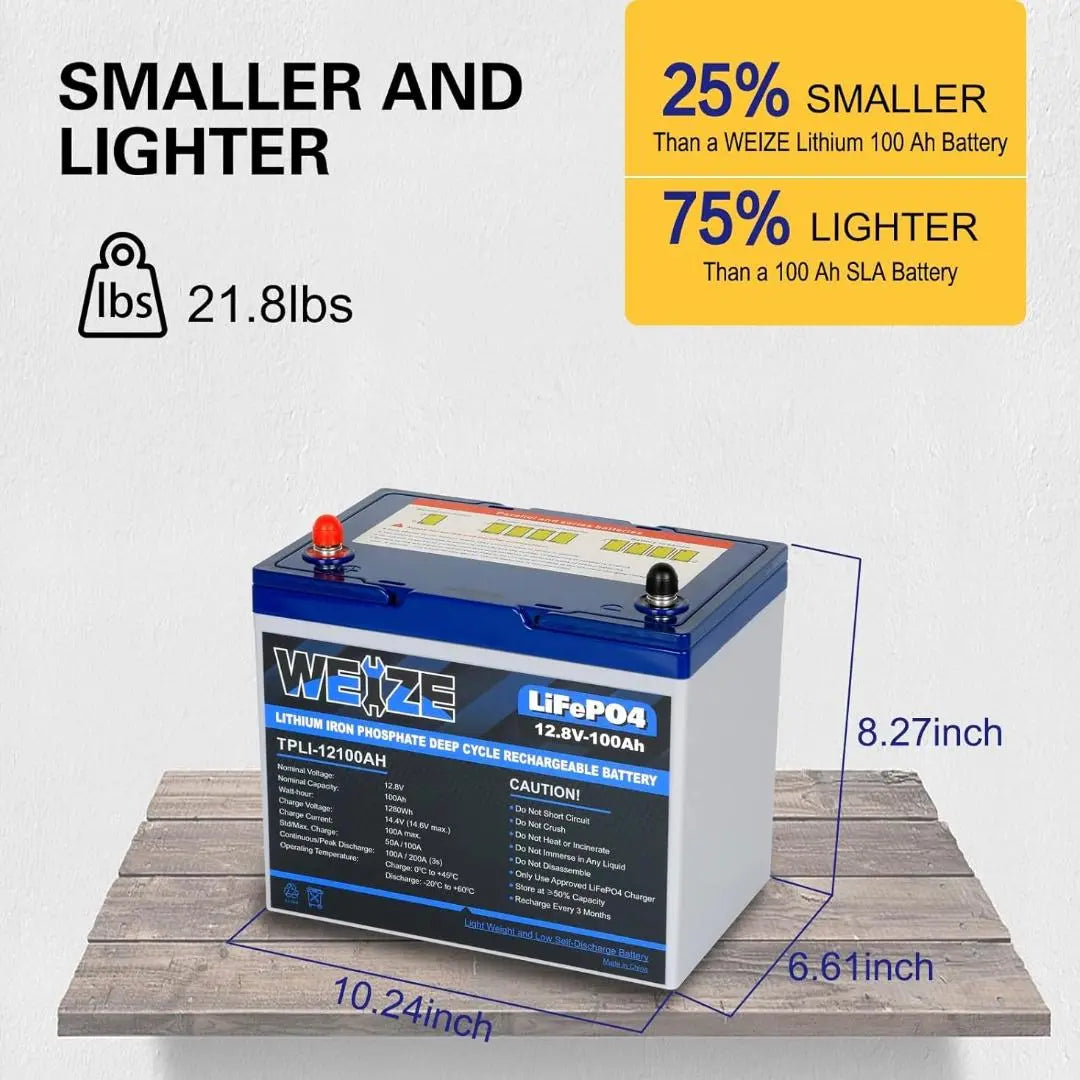

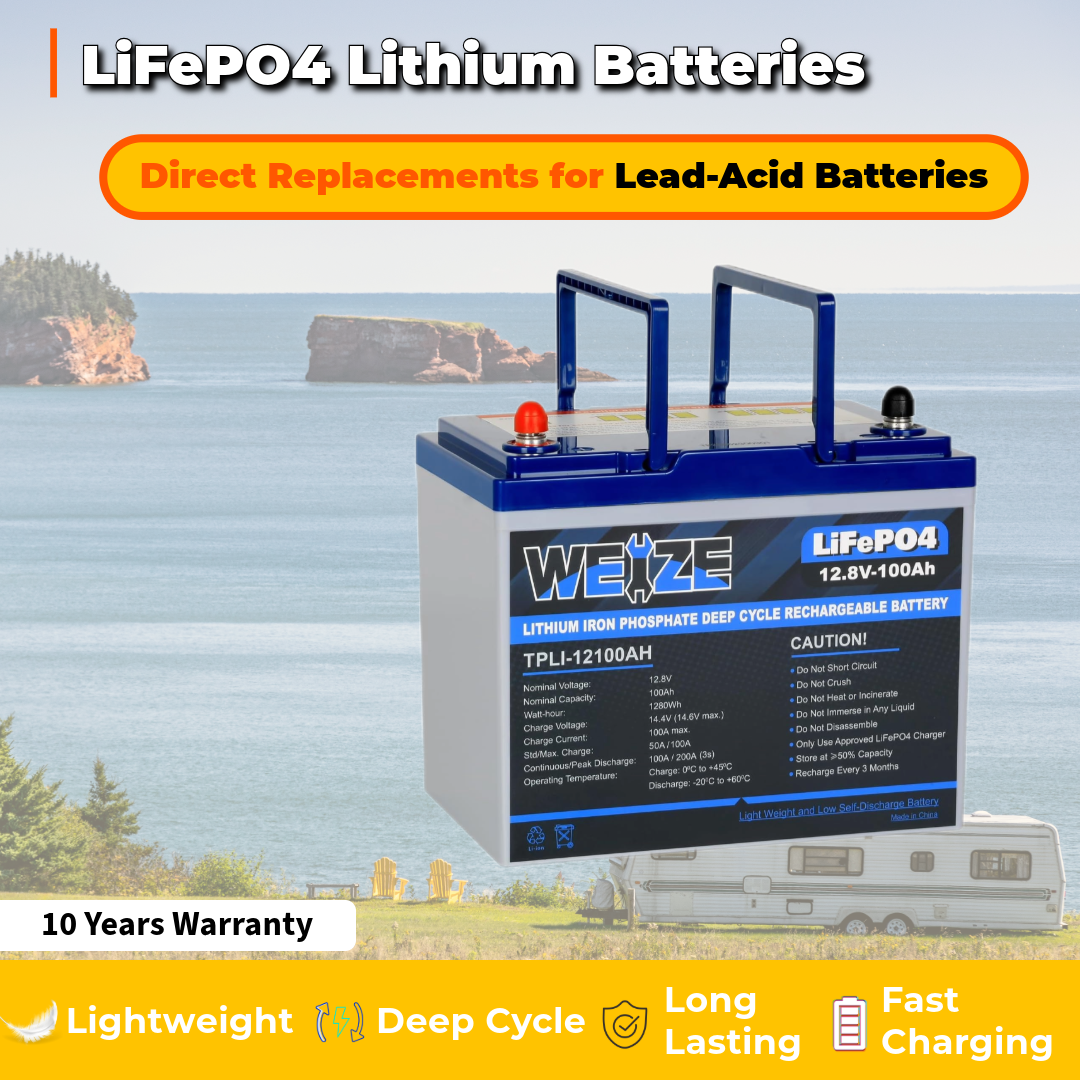

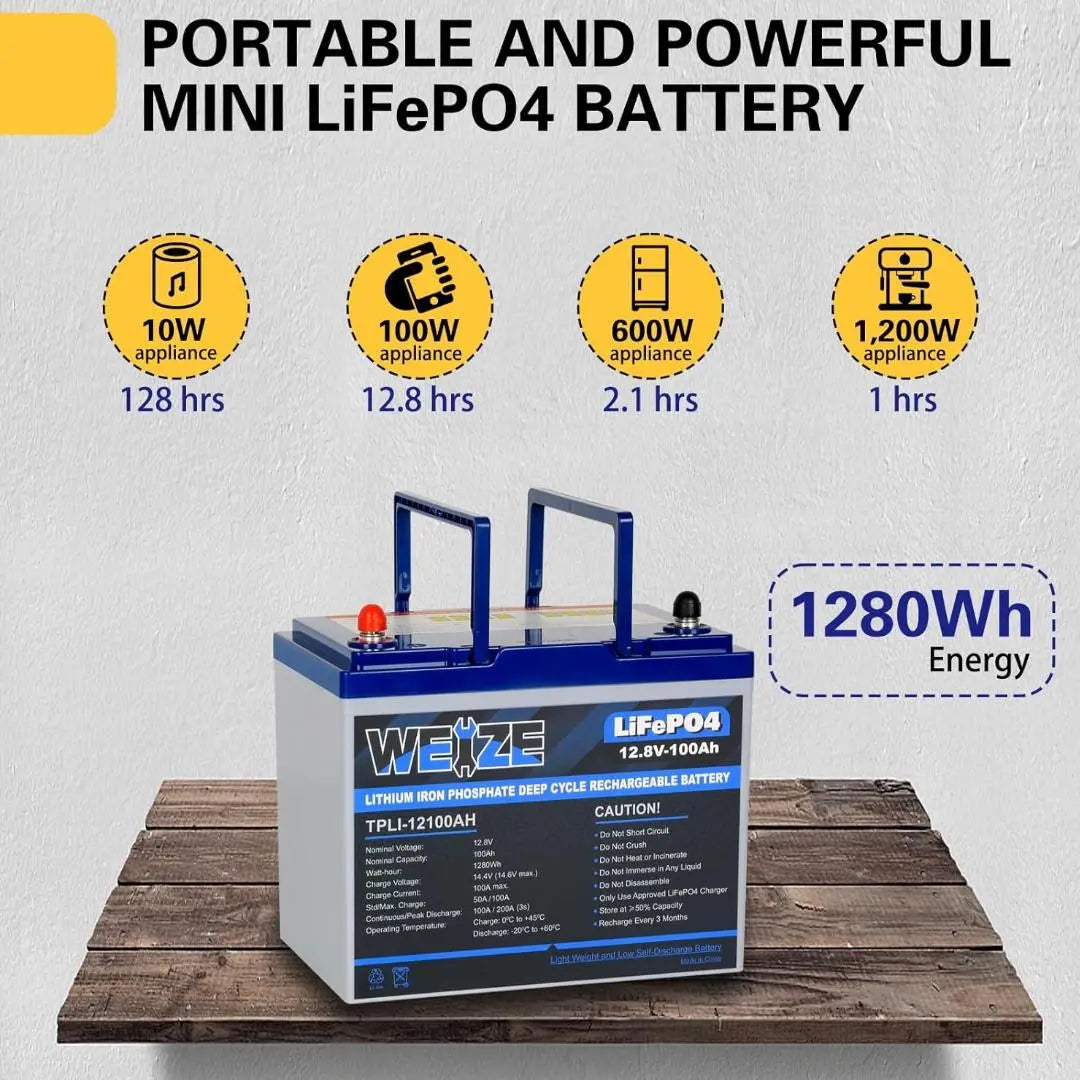

Smaller. Smarter. Stronger.: The WEIZE 12V 100Ah LiFePO4 Battery delivers 1280Wh of power in a compact, lightweight design—25% smaller and 50% lighter than traditional lead-acid batteries, yet lasts 5X longer.?Ideal for deep cycle upgrades in fish finders, ice fishing gear, RVs, solar systems, home alarms, and more. Size won’t limit your power.

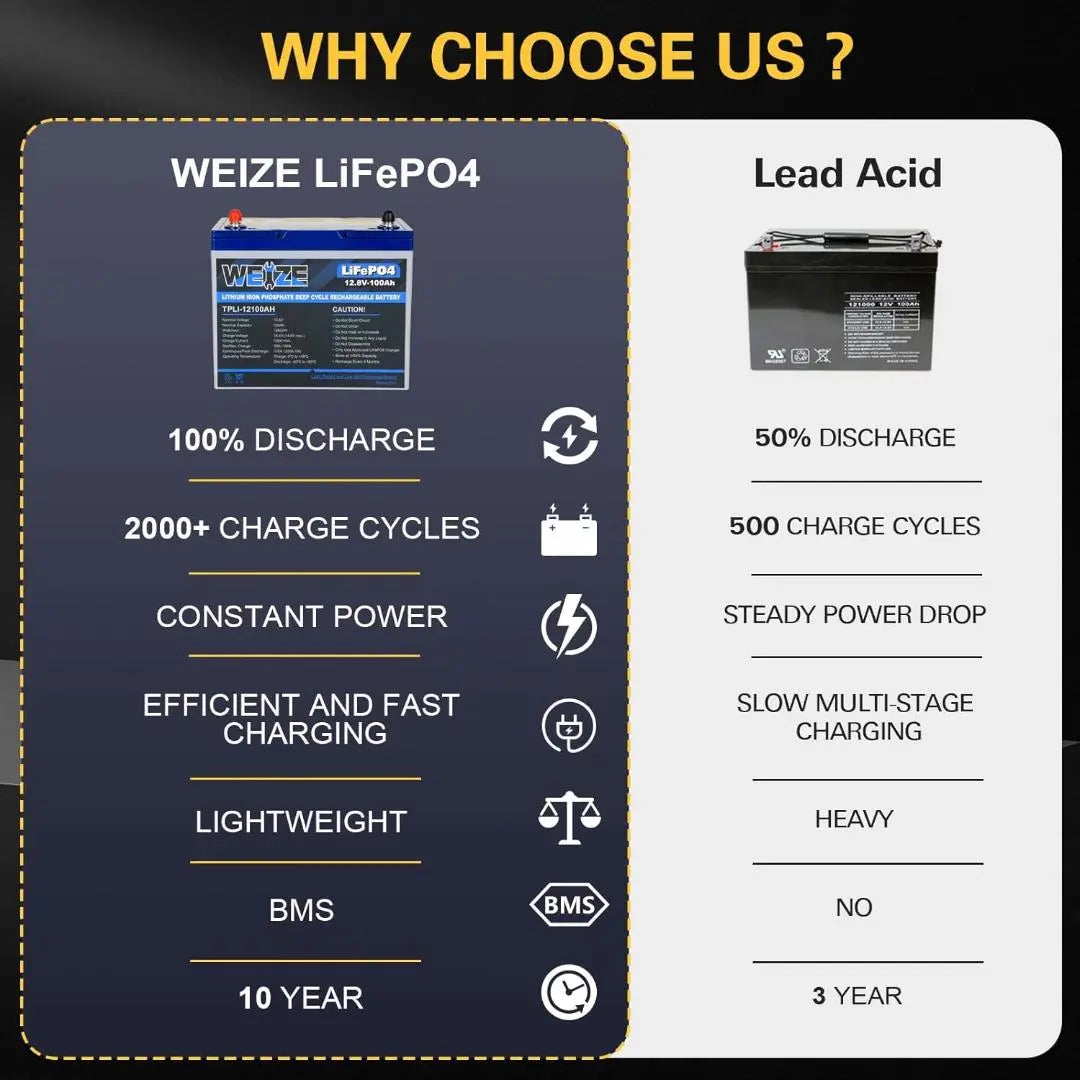

Built to Outlast: Get up to 8000 cycles at 50% depth of discharge, far outperforming lead-acid batteries with just 500 cycles.?Includes cold-weather protection for all-season reliability.

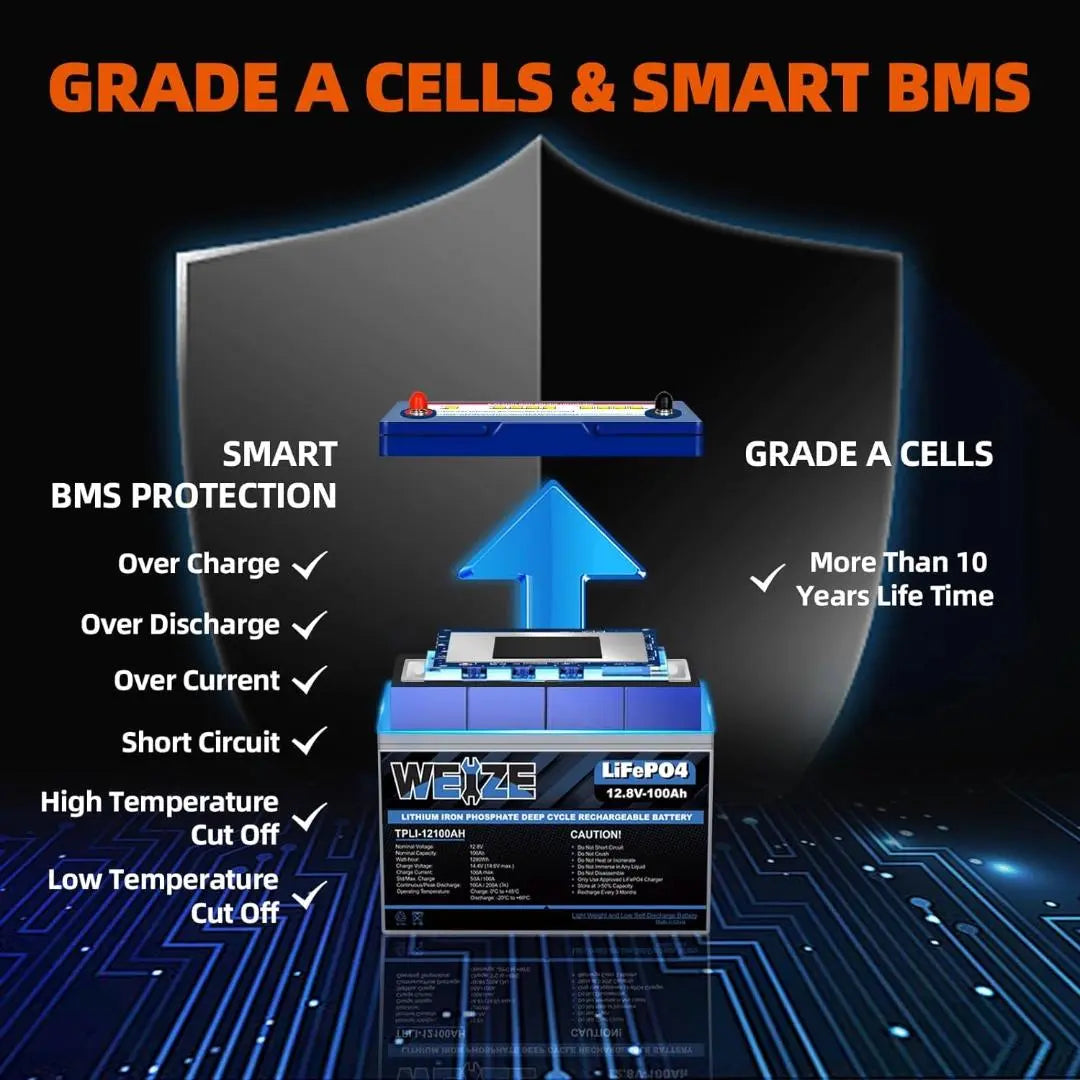

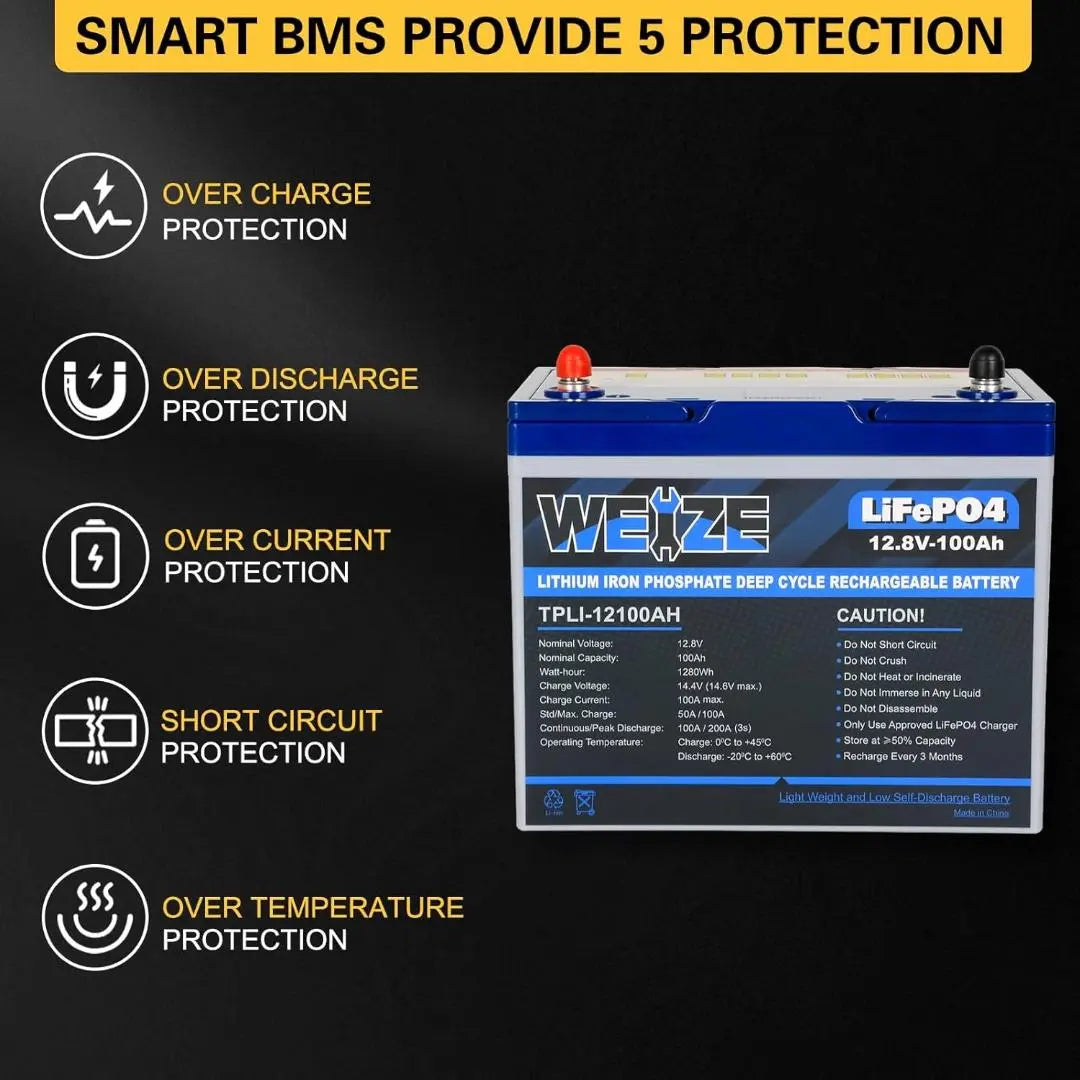

Smart & Safe Power: Equipped with an intelligent BMS, protecting against overcharge, over-discharge, overcurrent, short circuits, and temperature extremes.?Auto-recovery design—no high-voltage reset needed.
Eco-Friendly & Maintenance-Free: Made from non-toxic, non-hazardous materials—no acid, no fumes, no mess.?Mount in any position and enjoy a zero-maintenance, worry-free experience.
10-Year Peace of Mind: Backed by our dedicated WEIZE support team.??? For best results: use a LiFePO4 charger and limit to 4 batteries in series.
Linking multiple batteries? Use the 4 AWG battery cable.
