Lifting Capacity?? | 10,000 lbs? | Lifting Height | 3.9 ~ 71.65 inches?? |
Overall Height | 146.46 inches | Overall Width | 137.64 inches |
Drive-Thru Clearance | 103.07 inches | Motor | 220V/60HZ/1PH |
Concrete Requirement | ≥ 9.84 inches? | Manual | |
Power & Performance: This economical clear-floor 2-post car lift offers powerful lifting capability with a 4.5T strength, handling up to 10,000 lbs. It's versatile enough for cars, trucks, SUVs, and vans. Equipped with a robust 3 HP motor, it ensures efficient lifting. The lift operates smoothly with the required N32/N46 hydraulic oil.
Durable Construction: Built to last, this hydraulic post lift features a 220V, 60HZ, 1PH, 3HP motor, and weighs 1,411 lbs. With a passing width of 103.07 inches and overall dimensions of 137.64 inches in width and 146.46 inches in height, each hydraulic cylinder is crafted from high-quality materials, ensuring long-lasting reliability even under heavy-duty use.

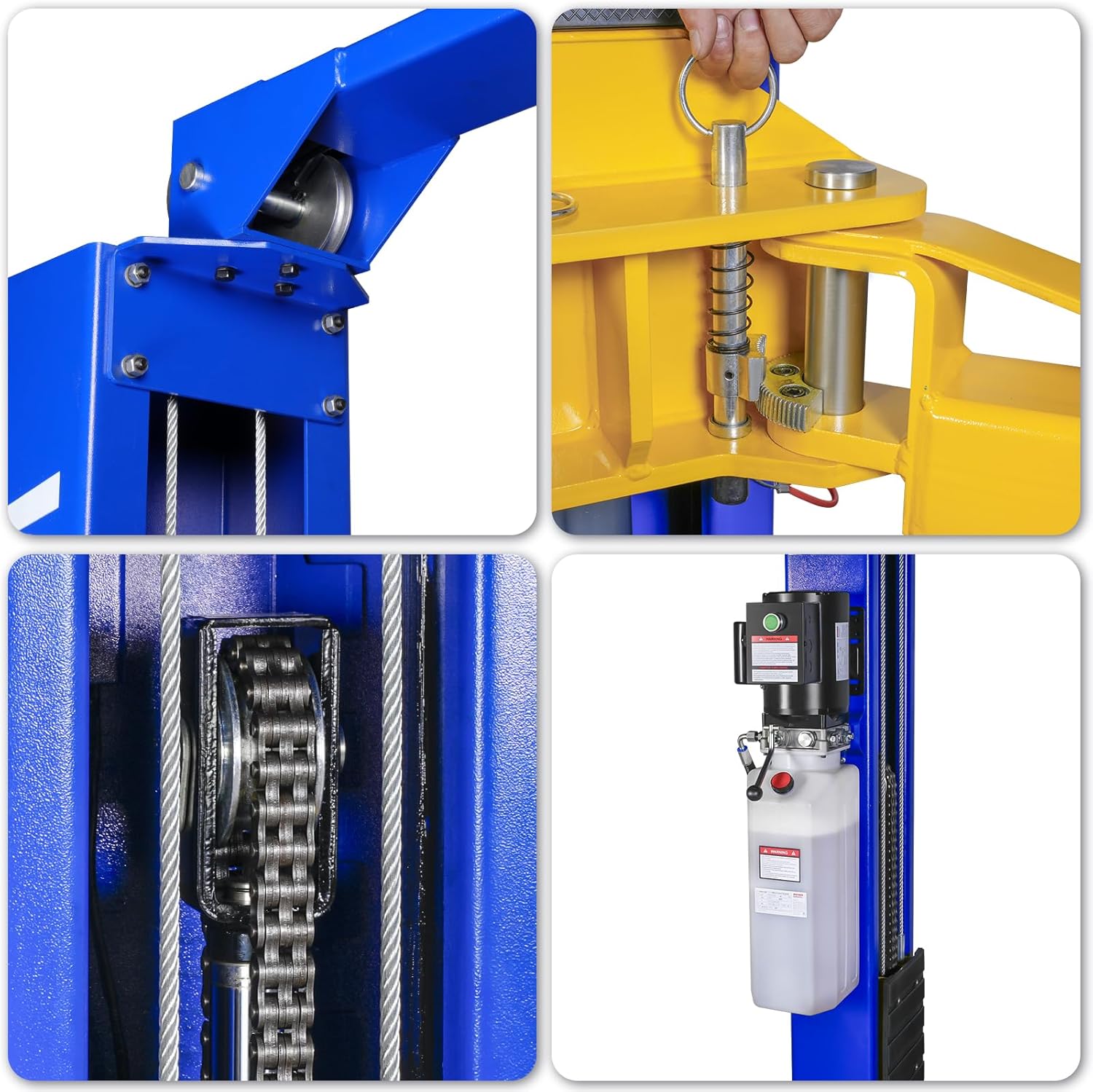

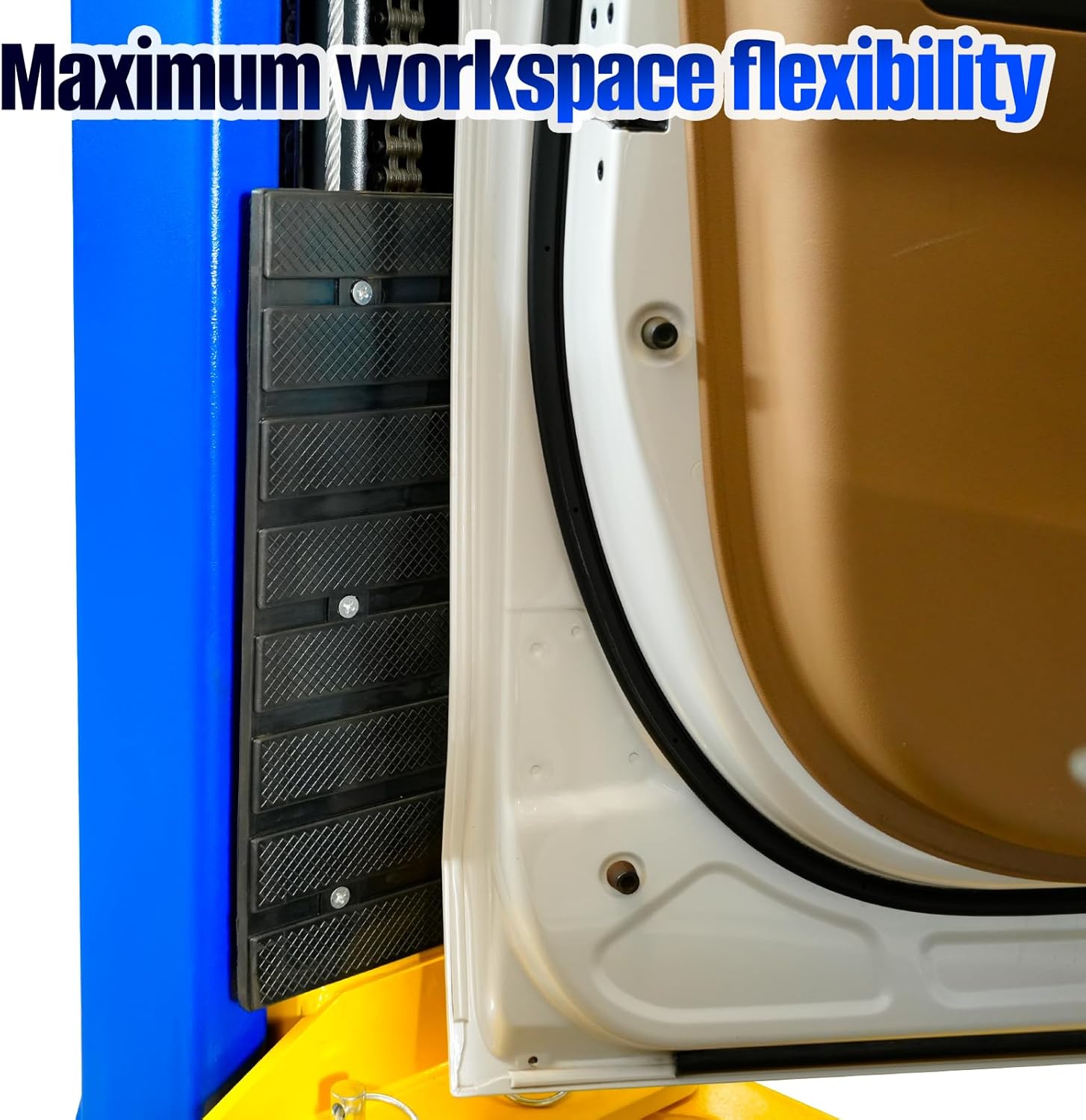

Safety Lock System: For secure operation, the lift includes a 2-point safety lock release and automatic arm lock restraints. A relief valve in the power pump prevents overloading, while door guards with protective rubber prevent pinching. An up-limit switch protects the cylinders by limiting their working stroke, and additional cylinder limit switches add another layer of safety.

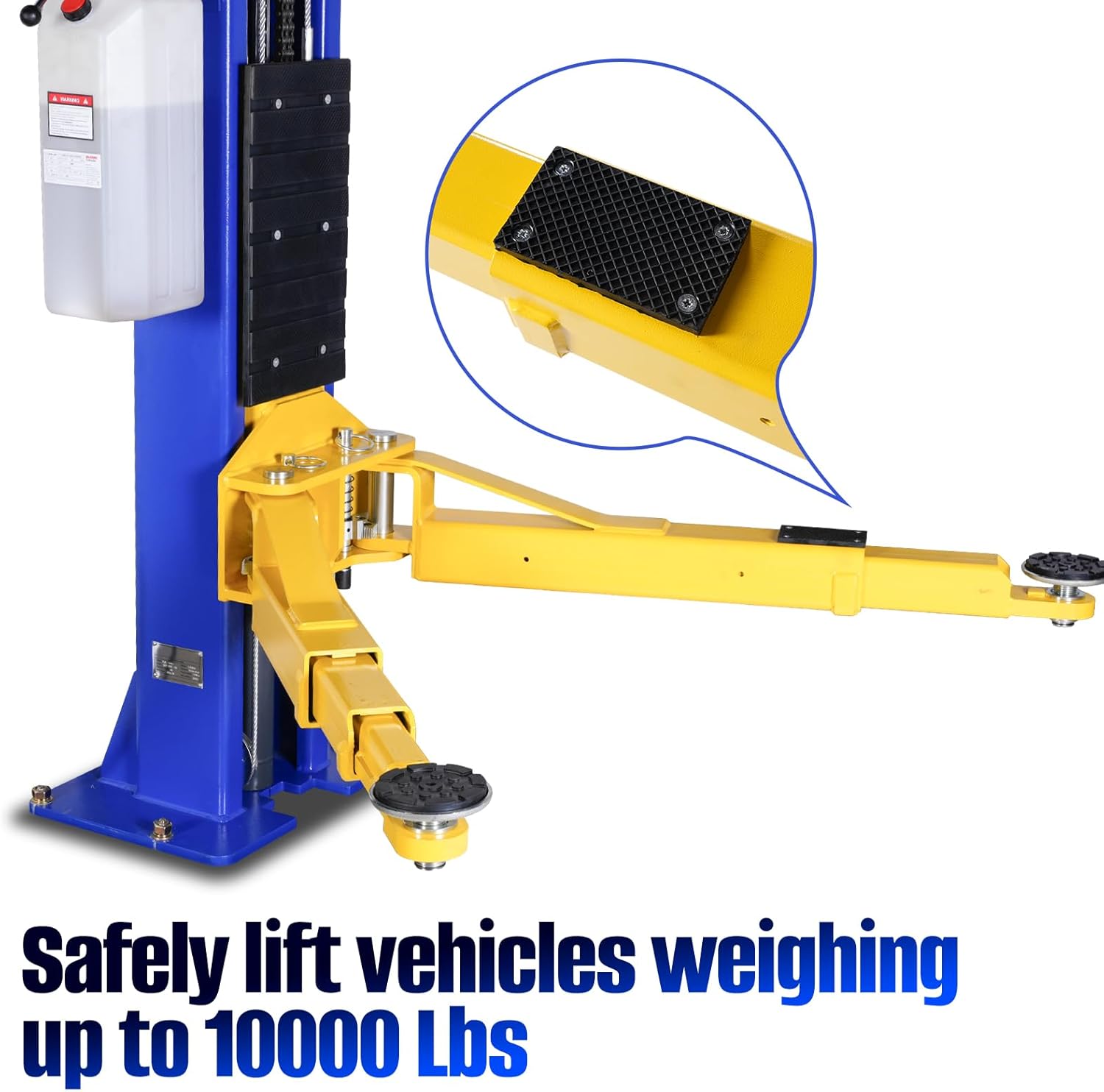

Functional and Versatile: With a load capacity of 10,000 lbs, this lift is designed for heavy-duty tasks and operates efficiently in various conditions, with a working temperature range of -5°C to +40°C and the ability to function at altitudes up to 200m above sea level.
Space-Saving Design: The compact 2-post design optimizes floor space, making it a perfect fit for even the most space-constrained workshops.
Note:
- Additional charges apply for??and?.
