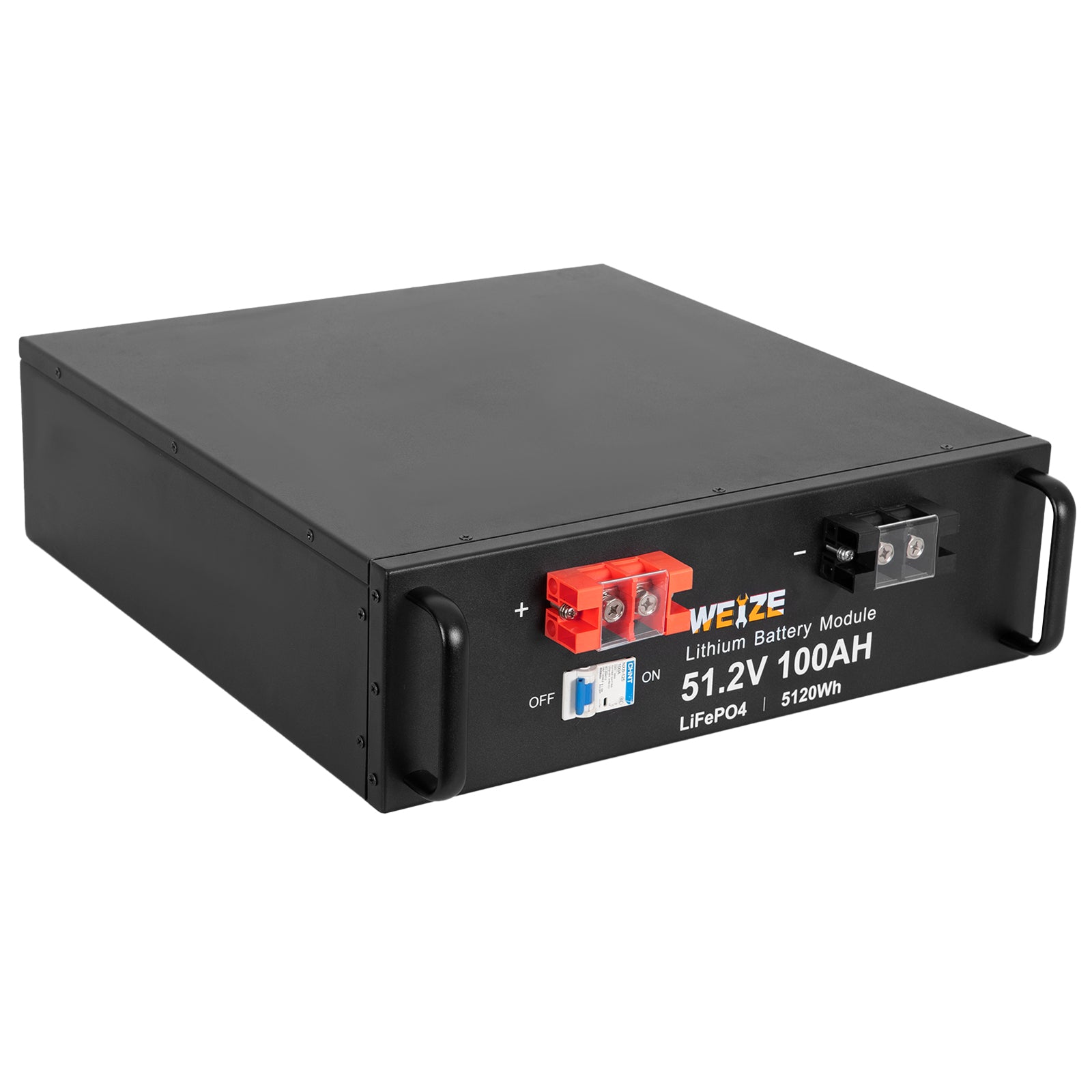

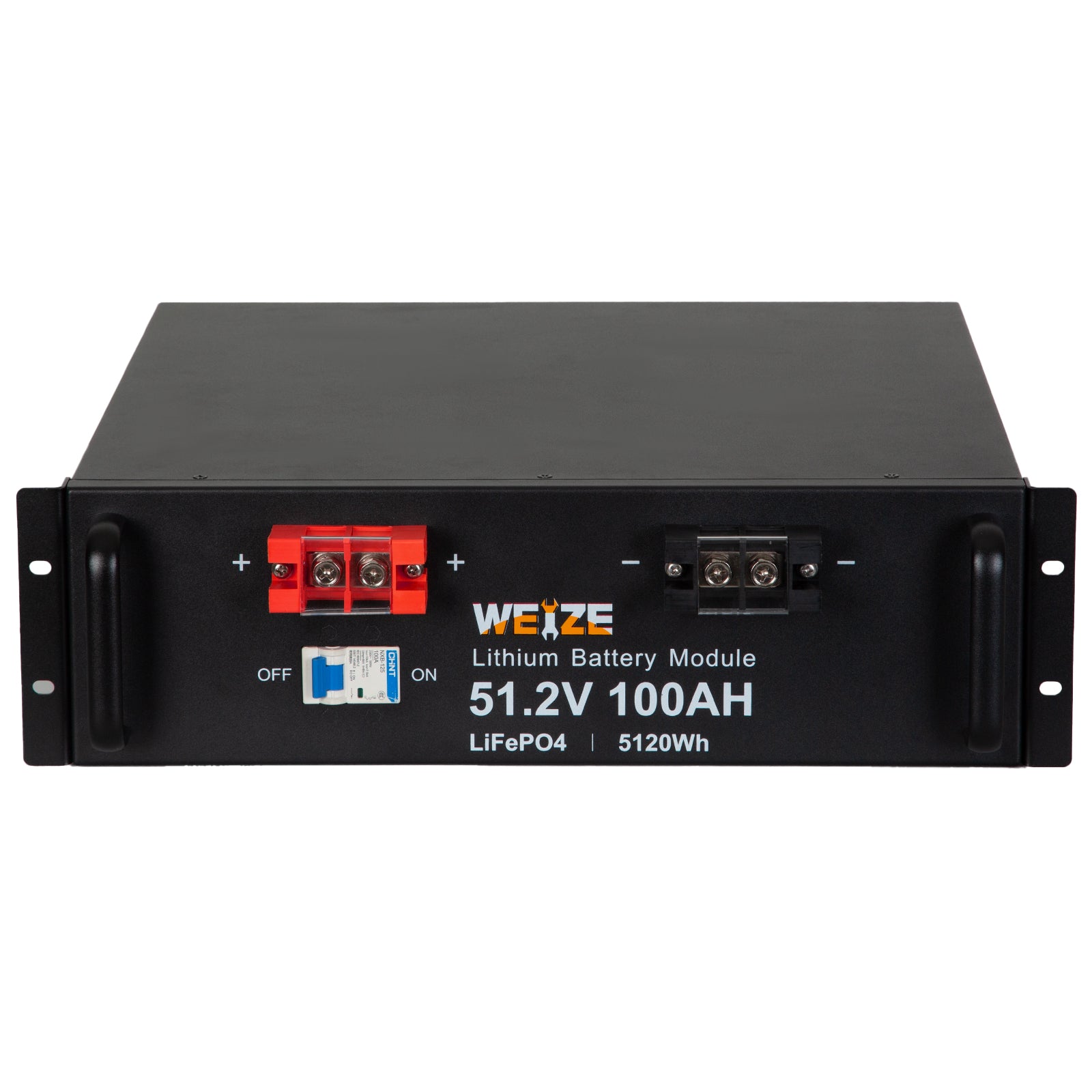

Battery Cell Composition | LiFePO4 cell | Nominal Voltage & Rated Capacity | 51.2V 100Ah |
Self-discharge Rate(77℉/25℃) | 3%/month | Charge Voltage | 57.6V |
Float Charge Voltage | 54.4~55.2V | Standard Charge Current | 20A(0.2C) |
Rated Discharge Current | 50A(0.5C) | Allowed Max. Charge/Discharge Current | 100A(1.0C) |

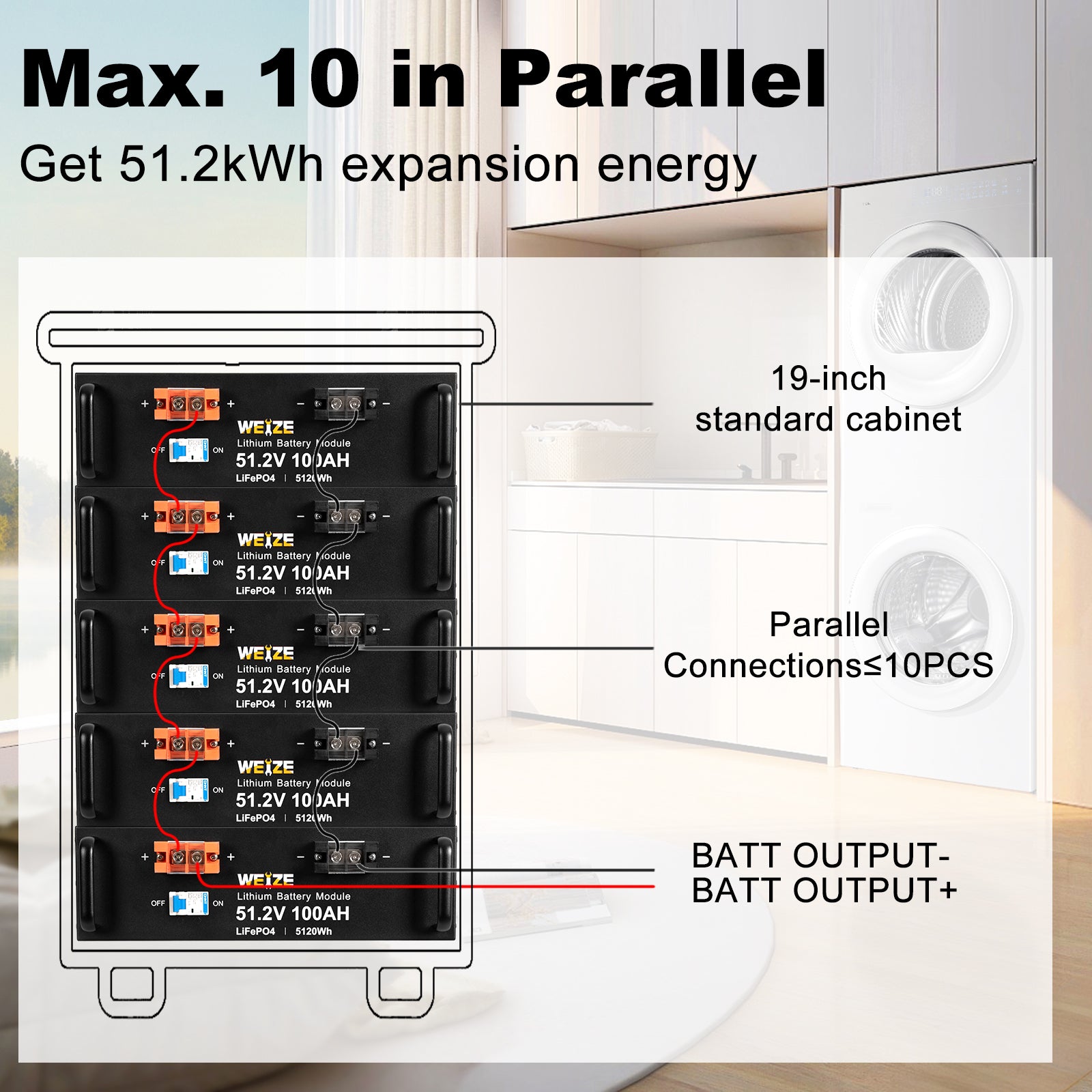

Serial Connection | No | Parallel Connection | Maximum 10 units |
Peak Discharge Current | 200A (3 seconds) | Storage Temperature Range | -4°F ~ 113°F |
Operating Charge Temperature Range | 32°F ~ 131°F | Operating Discharge Temperature Range | -4°F ~ 140°F |

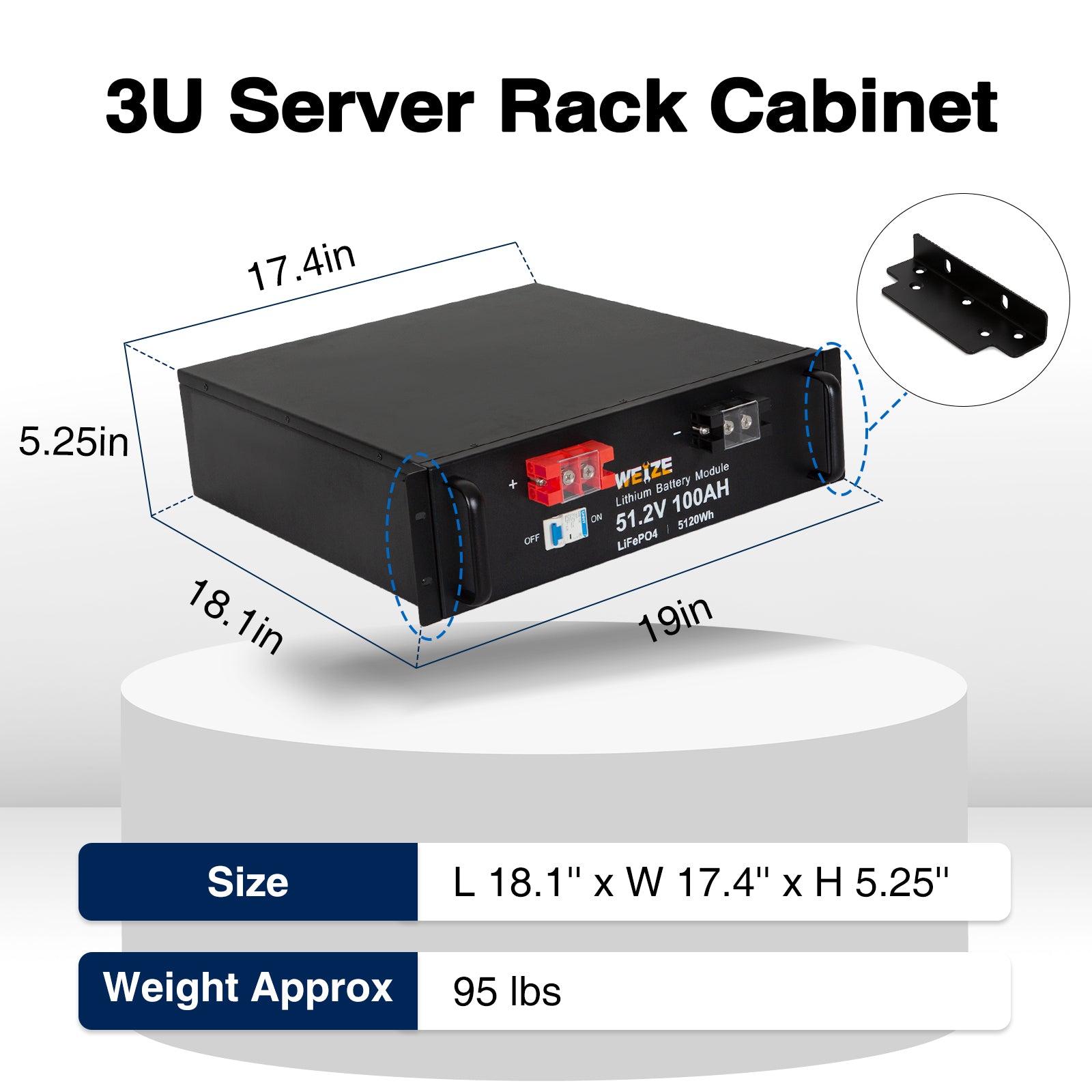

Product Dimensions | 18.1*17.4*5.25 in | Product Weight | 95 lbs |
Cycle Life@100%DOD | >2000 cycles | Cycle Life@50%DOD | >8000 cycles |
Housing Material | Steel | Warranty | 10-year |
