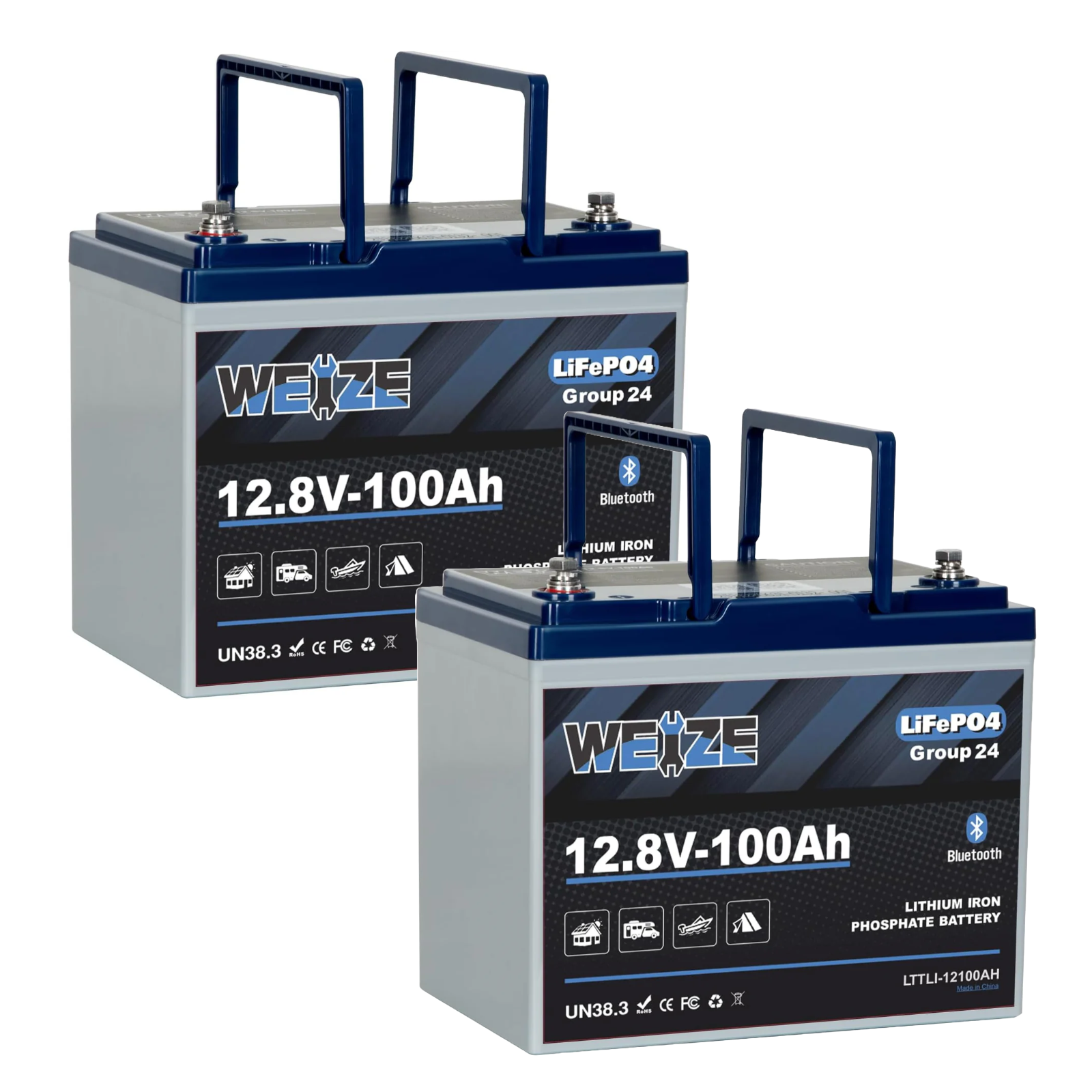

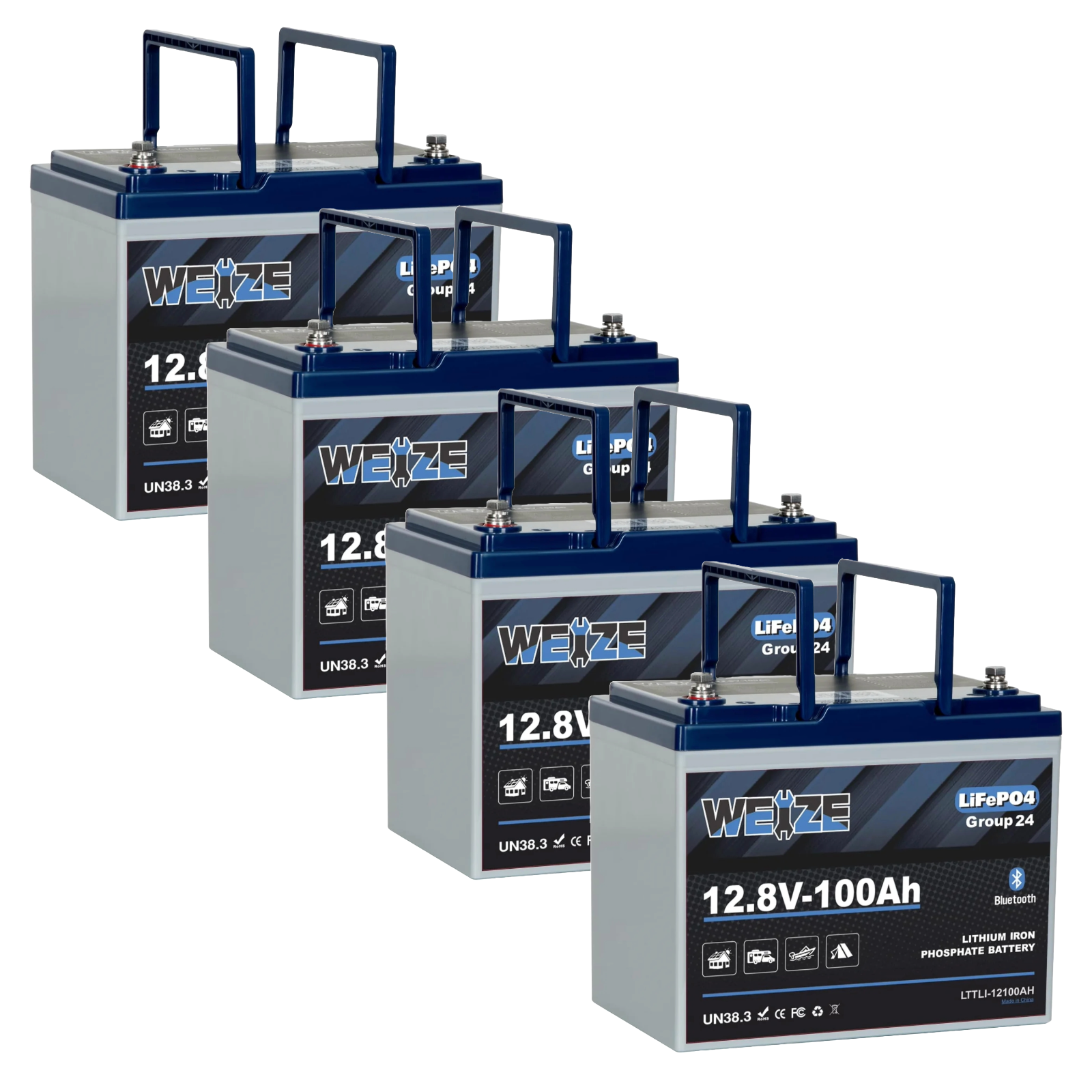

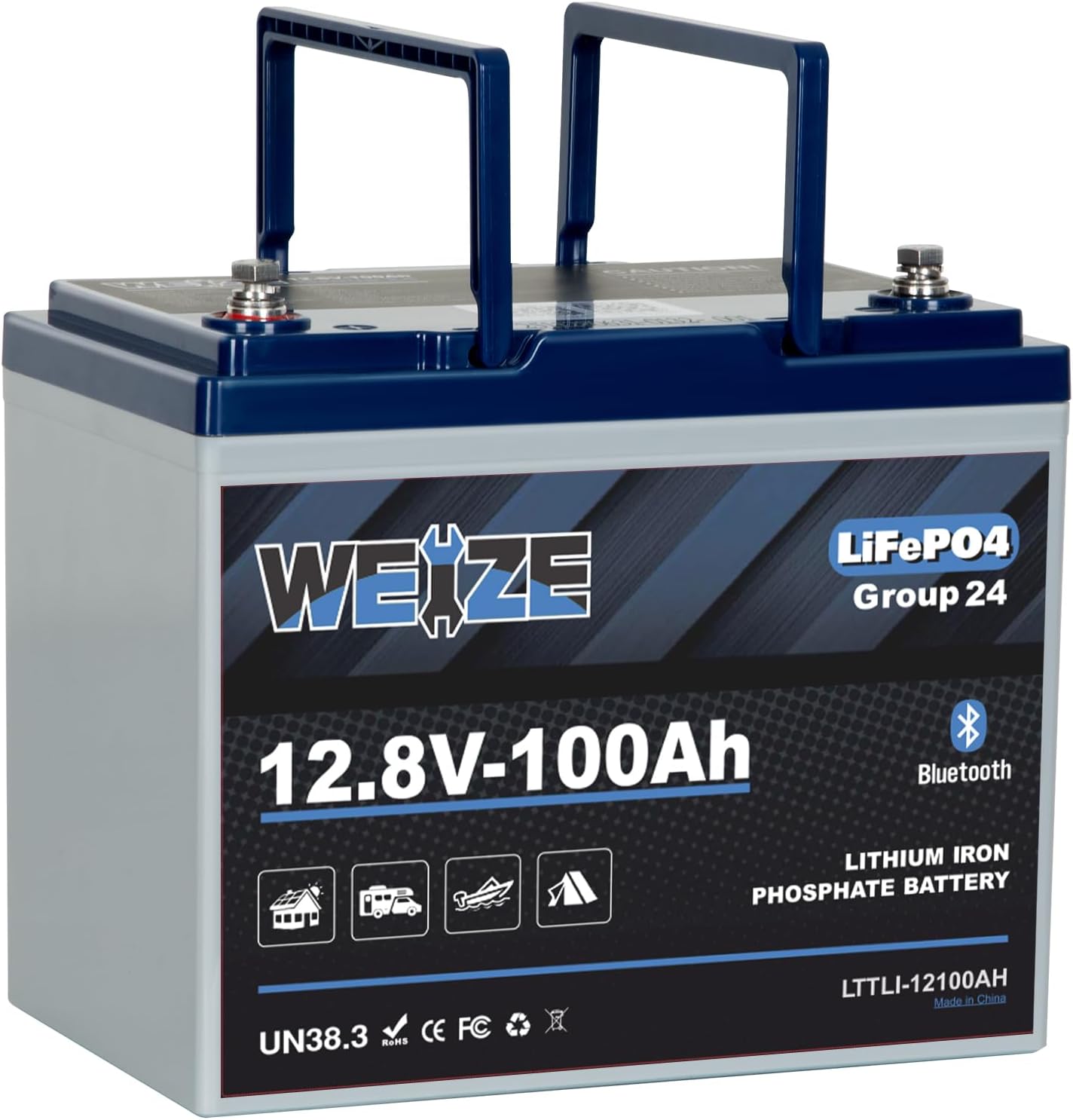

Battery Cell Composition | LiFePO4 cell | Nominal Voltage & Rated Capacity | 12.8V 100Ah |
Self-discharge Rate(77℉/25℃) | 3%/month | Charge Voltage | 14.6±0.2V |
Float Charge Voltage | 13.8V | Standard Charge/Discharge Current | 20A |

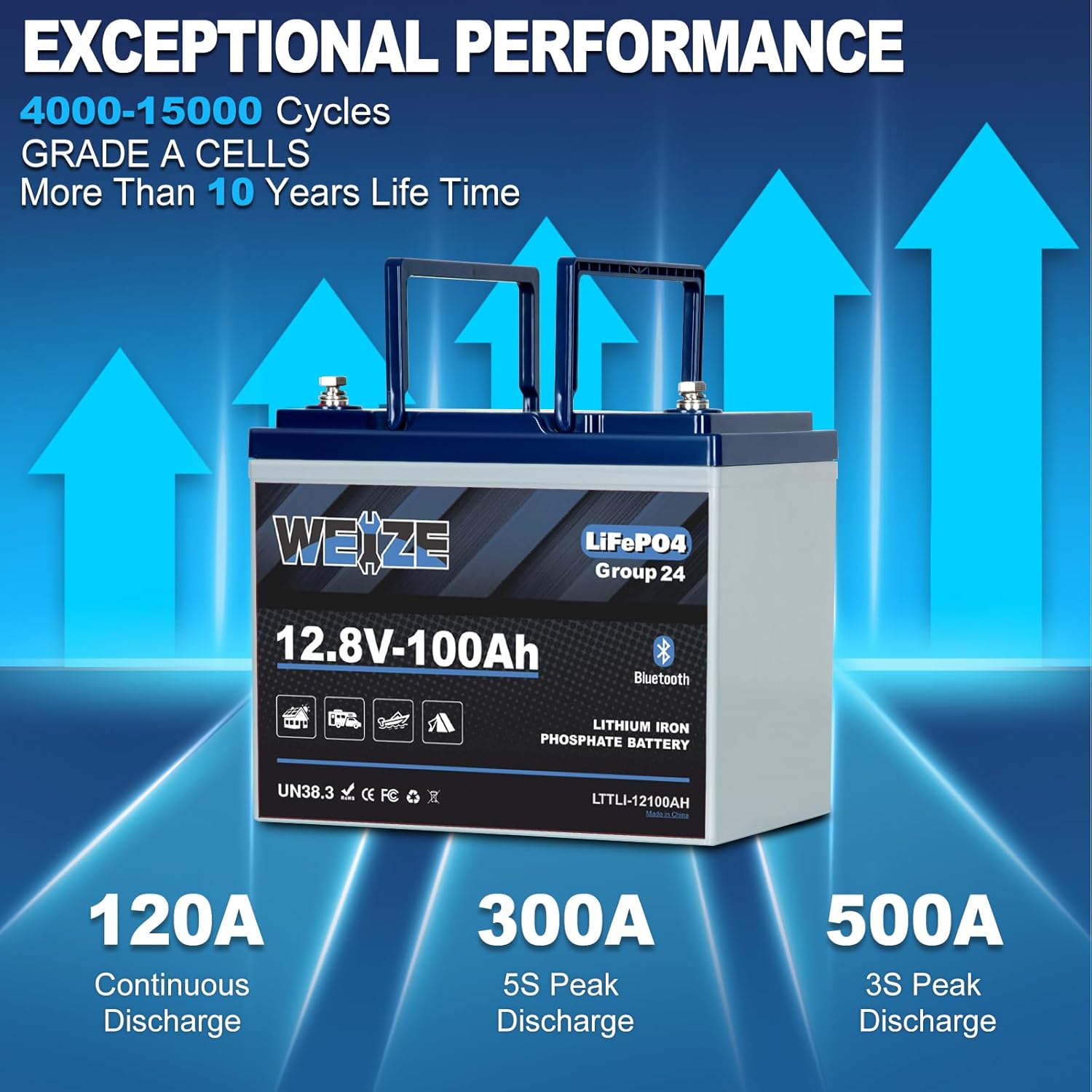

Allowed Max. Charge/Discharge Current | 100A/120A | Peak Discharge Current | 500A (3 seconds) |
Storage Temperature Range | -5°C ~ 45°C / 23°F ~ 113°F | Operating Charge Temperature Range | 0°C ~ 45°C / 32°F ~ 113°F |
Operating Discharge Temperature Range | -20°C ~ 60°C / -4°F ~ 140°F | Internal Resistance | ≤5mΩ |

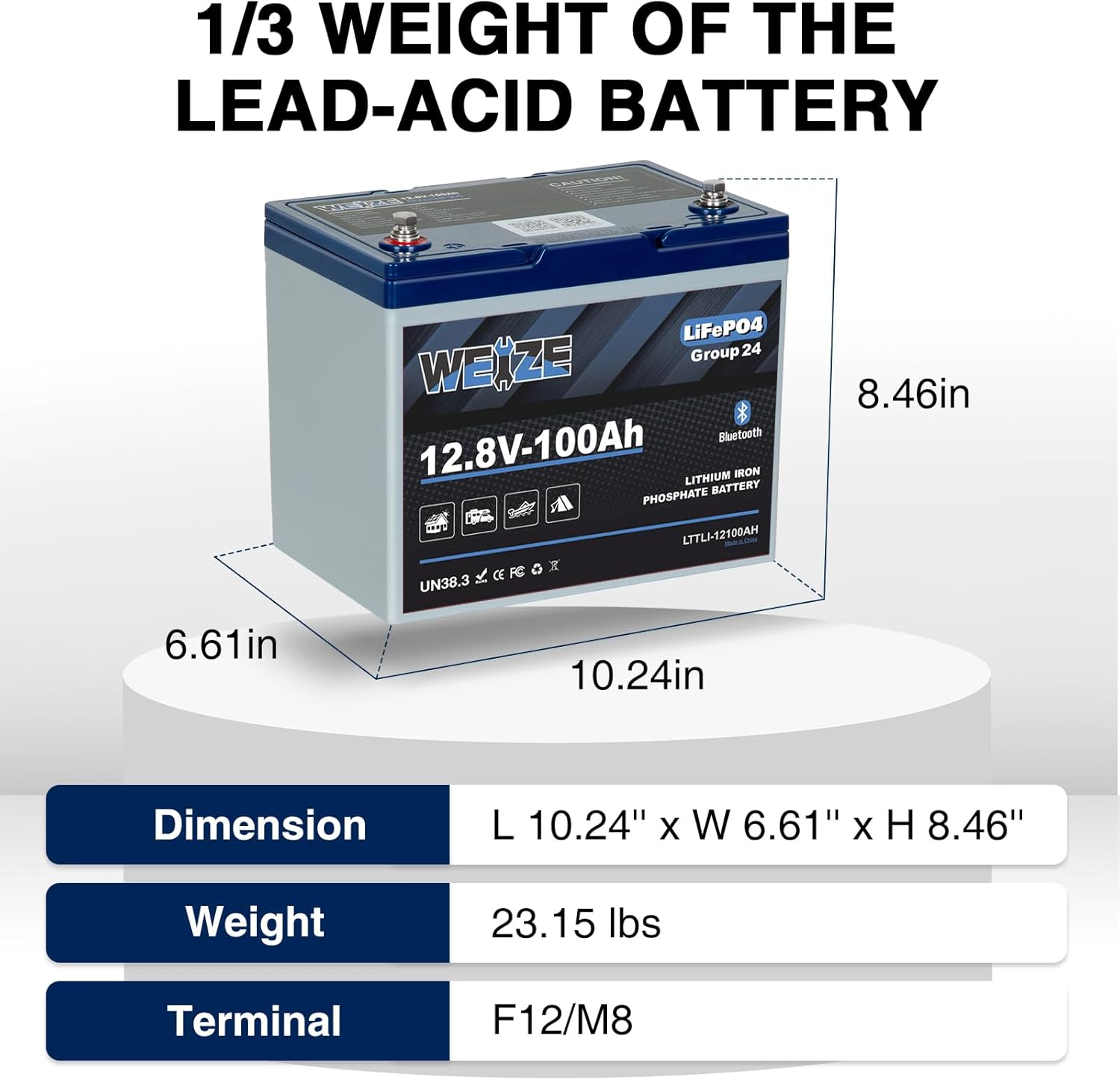

Product Dimensions | 260x168x210 mm / 10.24x6.61x8.27 in | Product Weight | 10.5 kg / 23.15 lbs |
Cycle Life@100%DOD | ≥2000 cycles | Warranty | 10-year |
