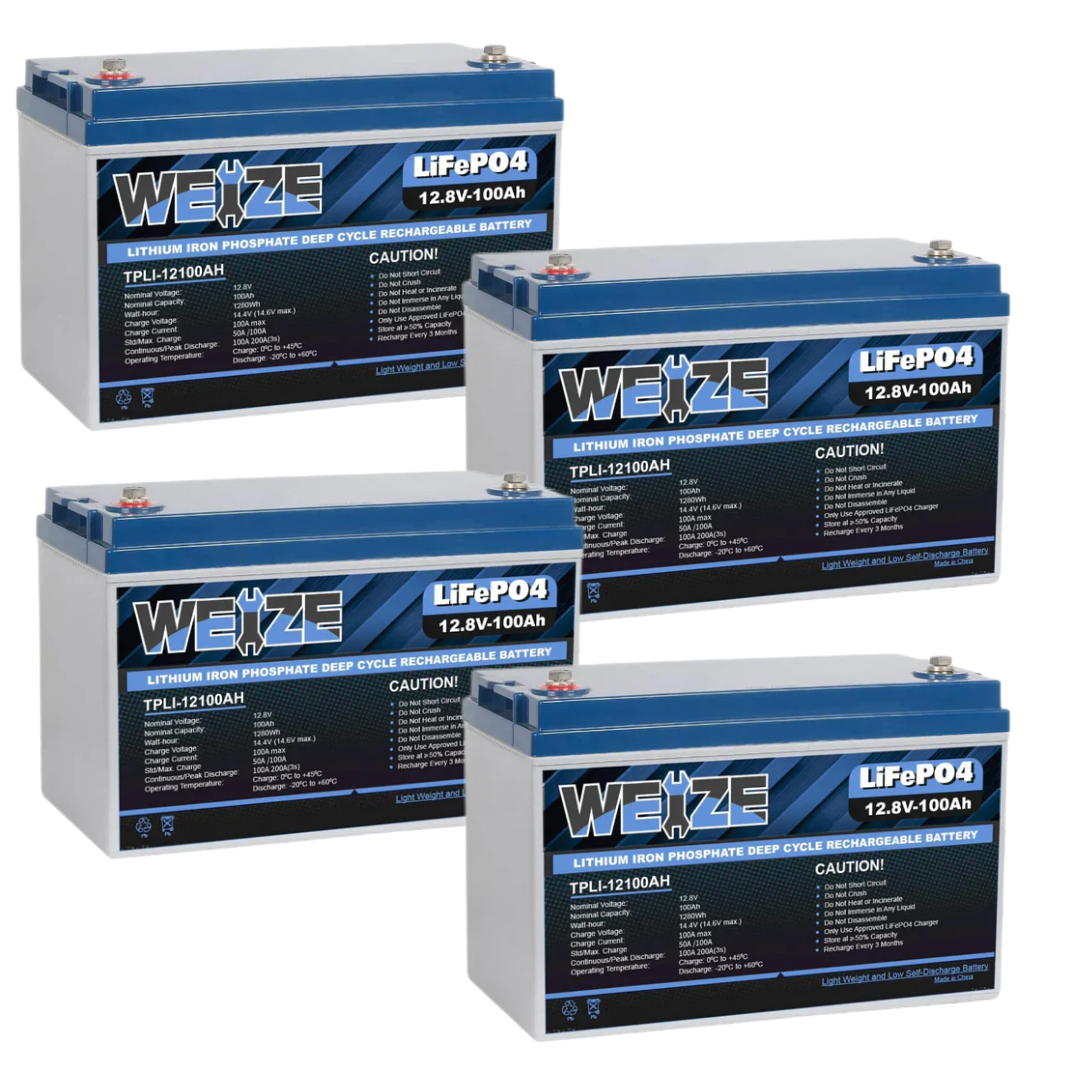

WEIZE 12V 100Ah 1280Wh Lithium LiFePO4 Deep Cycle Battery (4 Pack) - Perfect for RV, Marine, Solar Power Systems & Off-Grid Applications
Free shipping on all orders over $50
7-15 days international
26 people viewing this product right now!
30-day free returns
Secure checkout
89384728
DESCRIPTION

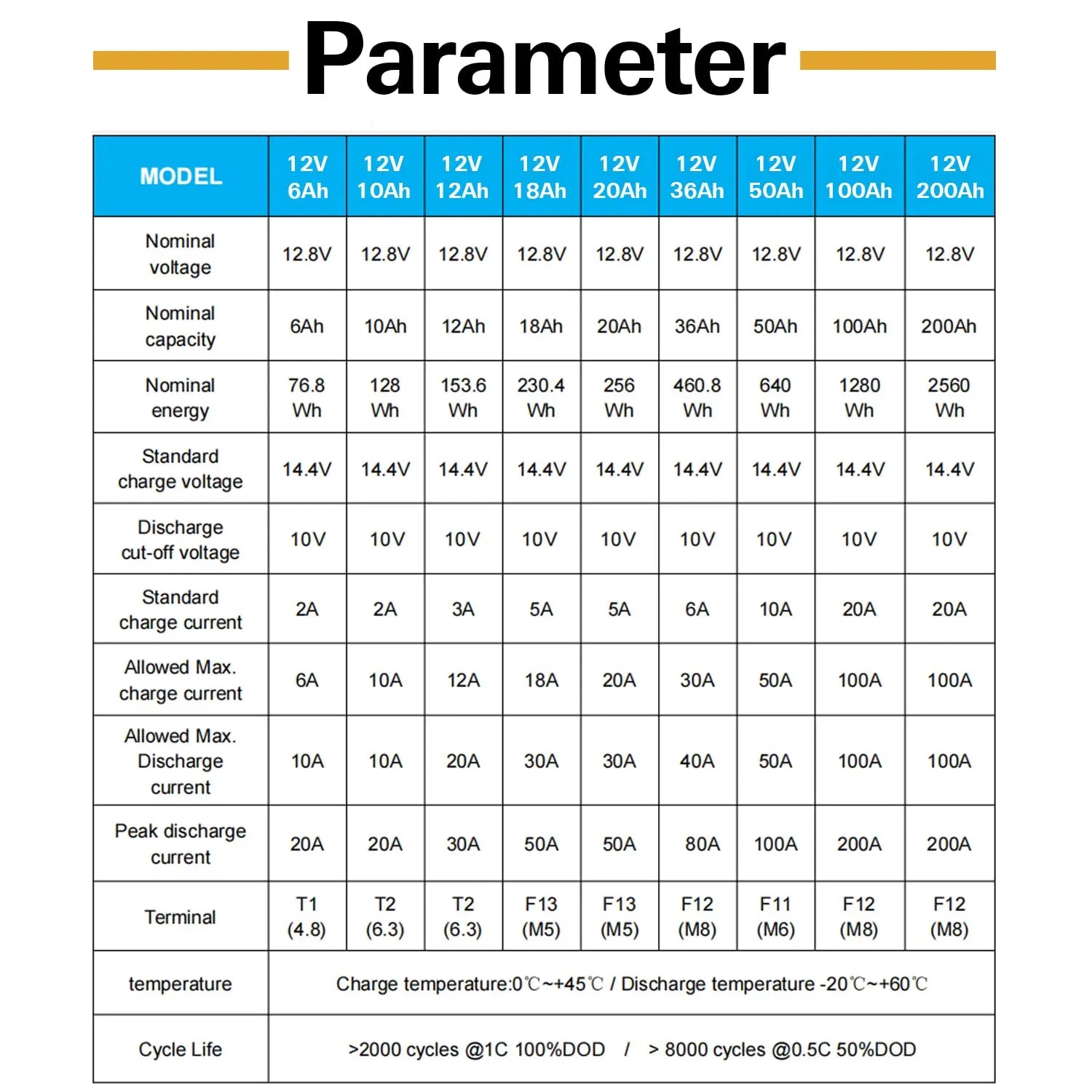

| Battery Cell Composition | LiFePO4 cell | Nominal Voltage & Rated Capacity | 12.8V 100Ah |
| Self-discharge Rate(77℉/25℃) | 3%/month | Charge Voltage | 14.6±0.2V |
| Float Charge Voltage | 13.8V | Standard Charge/Discharge Current | 20A |
| Recommended Charge Current | ≤50A | Recommended Discharge Current | ≤100A |
| Allowed Max. Charge/Discharge Current | 100A | Peak Discharge Current | 200A (3 seconds) |
| Storage Temperature Range | -5°C ~ 45°C / 23°F ~ 113°F | Operating Charge Temperature Range | 0°C ~ 45°C / 32°F ~ 113°F |
| Operating Discharge Temperature Range | -20°C ~ 60°C / -4°F ~ 140°F | Internal Resistance | ≤30mΩ |
| Serial Connection | Maximum 4 units | Parallel Connection | Maximum 10 units |

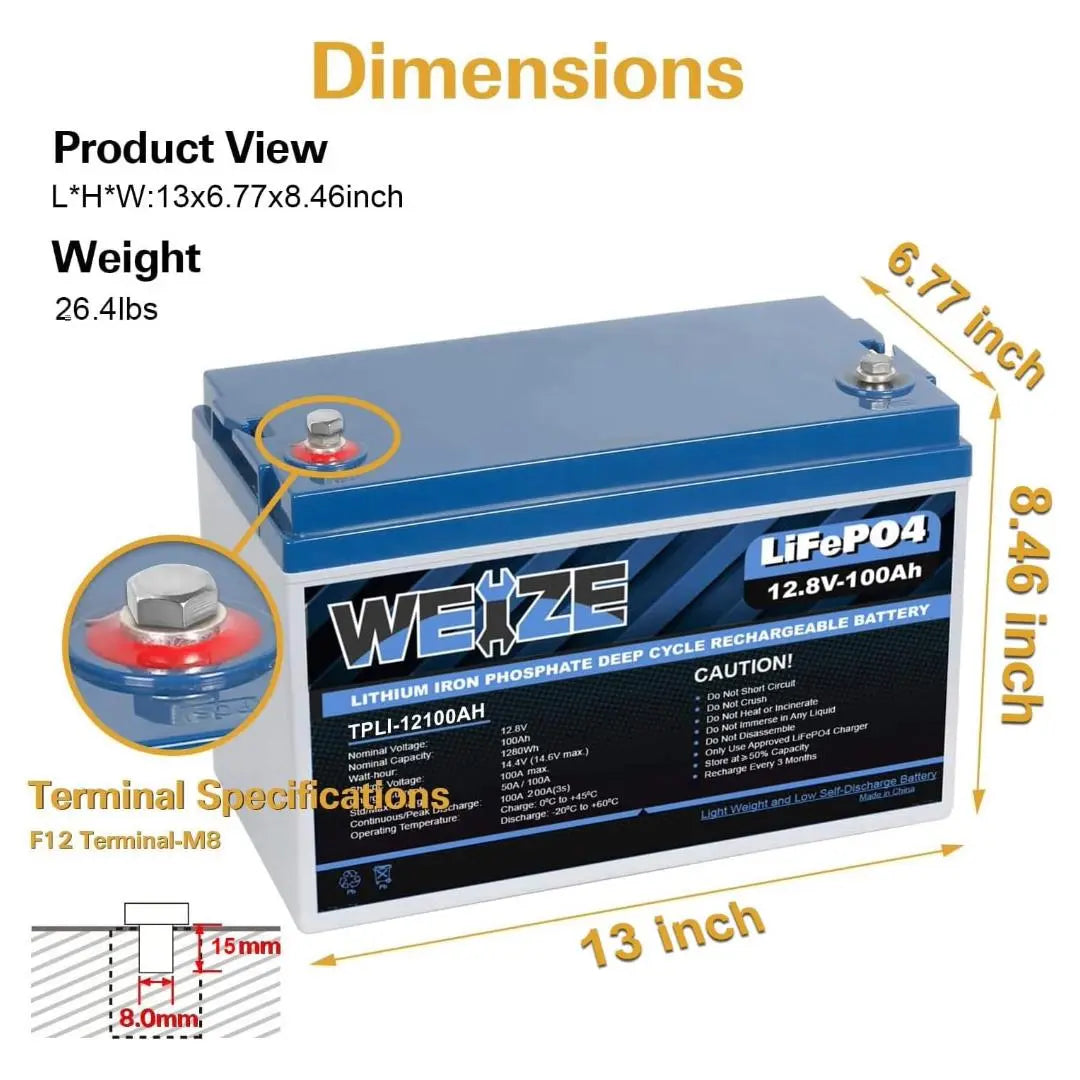

| Product Dimensions | 330.2x172.0x214.9 mm / 13x6.77x8.46 in | Product Weight | 11.97 kg / 26.4 lbs |
| Cycle Life@100%DOD | ≥2000 cycles | Warranty | 10-year |
Unlock the Future of Power Storage - Weize 10-Year Warranty on LiFePO4 Batteries!
Built to?Last - Unmatched Performance:
Experience power storage like never before with our 12V 100Ah LiFePO4 Batteries, designed to endure more than 2000 cycles at 100% discharge or an impressive 8000 cycles at 50% depth of discharge (Suggested). In comparison, traditional lead-acid batteries typically last only around two years (500 cycles) at just 50% discharge. Embrace a future where your LiFePO4 battery lasts at least 5 times longer than a lead-acid one, ensuring significant cost savings in the long run. And with cold weather protection, your battery remains dependable even in harsh conditions.
Effortless Efficiency - Automatic BMS and Maintenance-Free:
Say goodbye to battery worries with our built-in Battery Management System (BMS). It acts as your battery's guardian, providing essential protection against overcharge, Discharge, over-current, Short Circuiting, as well as Low and High temperatures. Experience enhanced performance and extended battery life, knowing that your Weize LiFePO4 battery is in safe hands. Plus, our BMS ensures automatic circuit cut-off, and reactivation requires no higher voltage input - hassle-free power management made easy!
Powerful and Lightweight - Unleash Versatility:
Harness the potential of lithium's greater energy density, which is at least 1/2 the mass of lead-acid batteries. Elevate your energy solutions with the perfect upgrade for any 12V Deep Cycle battery. Whether it's Fish Finders, Ice Fishing, Camping, Solar Systems, Home Alarm Systems, or E-Scooters, our LiFePO4 battery is the ultimate choice for an array of applications. Just remember to use a dedicated LITHIUM BATTERY CHARGER and avoid connecting more than 4 batteries in series or parallel.
Safety Above All - Eco-Friendly and Secure:
Our Weize LiFePO4 battery is crafted from 100% safe, non-toxic, and non-hazardous energy, boasting exceptional chemical stability. Fear no thermal runaway or overheating, even if punctured - your safety is our priority. With no acid involved, you can safely mount the battery in any position, ensuring optimal convenience. Just follow the user manual carefully for a seamless experience, and feel free to contact us with any battery-related questions.
Please note: This 12V 100Ah battery is designed for energy storage applications, not for engine starting.
Linking multiple batteries? Use the 4?AWG battery cable.
Discover the transformative power of Weize LiFePO4 Batteries and unleash unmatched performance, efficiency, and reliability. Embrace a greener and more sustainable future with batteries designed to elevate your energy solutions. Don't wait - make the switch to Weize today!
TROUBLESHOOTING
- Can not discharge
1. Check whether the battery is securely connected.
2. Check whether the positive and negative battery terminals are correctly connected.
3. Check whether the battery voltage is greater than 12V. If it is less than 12V, charge the battery first.
4. Check whether the load voltage matches the battery.
5. Check whether the load current is greater than 100A, ensure it is less than 100A.
6. Ensure that the ambient discharge temperature ranges from -15°C to +55°C.
- Can not charge
1. Check whether the battery is securely connected.
2. Check whether the positive and negative battery terminals are correctly connected.
3. Check the charging voltage matches the battery, the charging parameters are set correctly.
4. Check whether the charging current is greater than 100A and ensure that it is less than 100A.
5. Check whether the battery voltage is less than 9V. If it is less than 9V, use the charger with 0V charging function to charge.
6. Ensure the charging environment temperature ranges from 0°C to +45°C.
7. After the battery is protected by over-discharge, disconnect the load and wait for the battery to recover the voltage before charging, or use the charger with 0V charging function to charge.
- Battery heats up
1. Check whether the battery is securely connected. The connecting wire should be in contact with the battery terminal. Do not clamp screws to discharge.
2. Check whether the battery cable matches the working current. 6AWG or 4AWG cable is recommended.
3. Check whether the load power exceeds the battery discharge power of 1280 watts, ensure the load power is lower than the required battery power.
4. Ensure the working temperature is lower than 55 °C.
